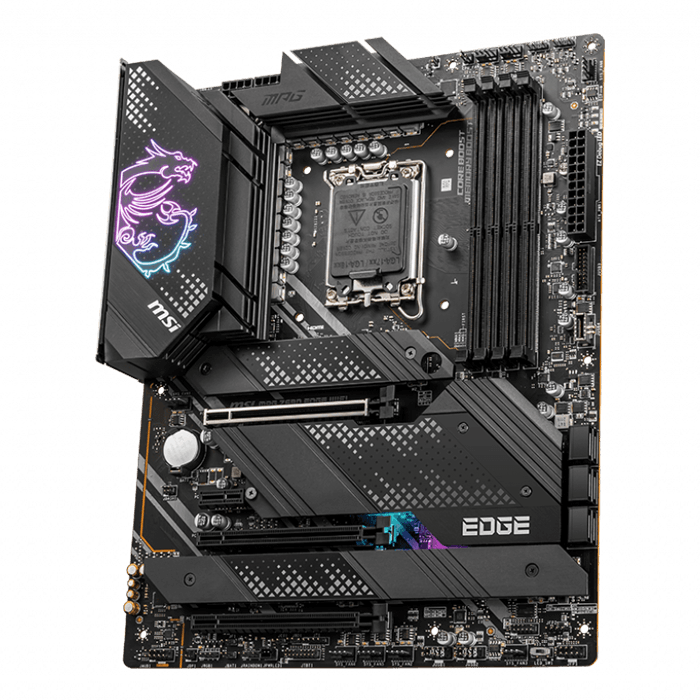

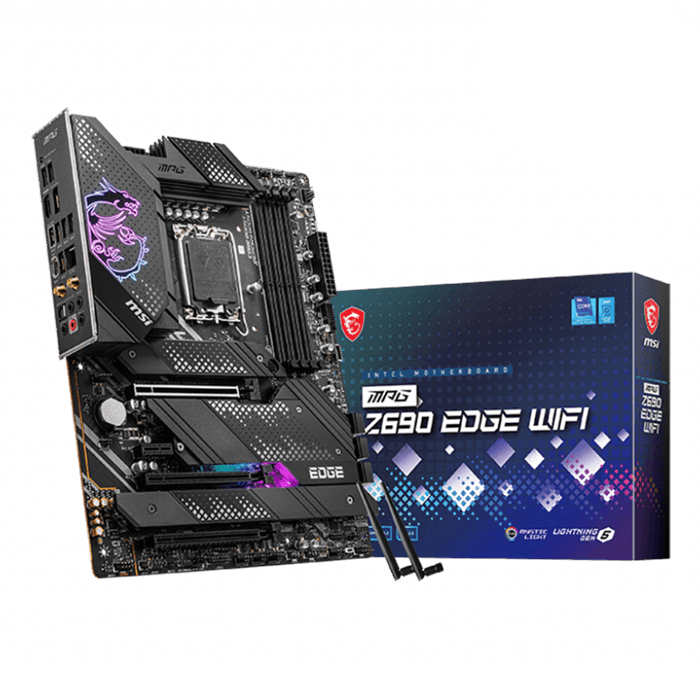

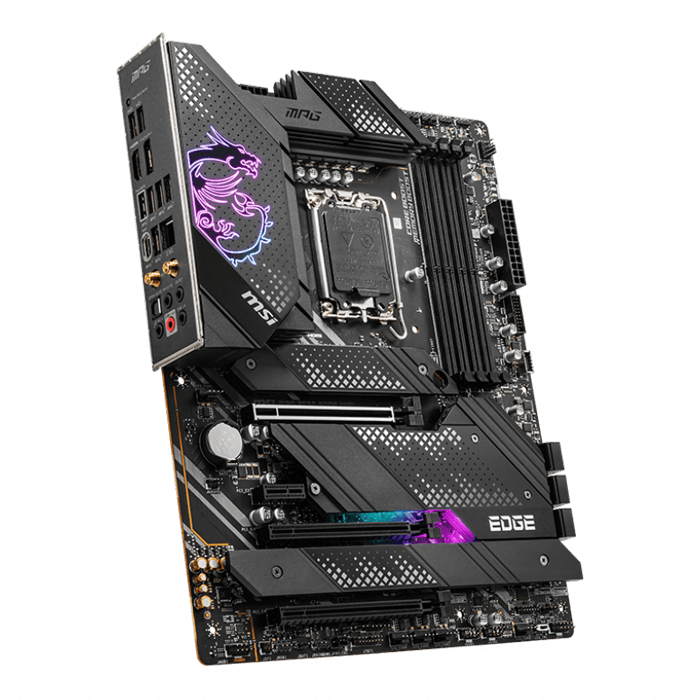

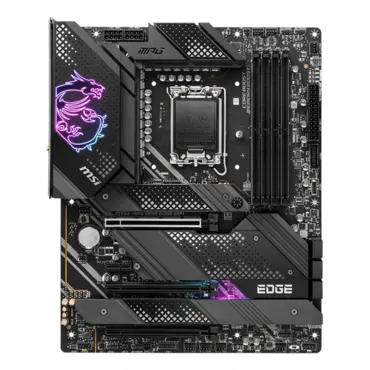

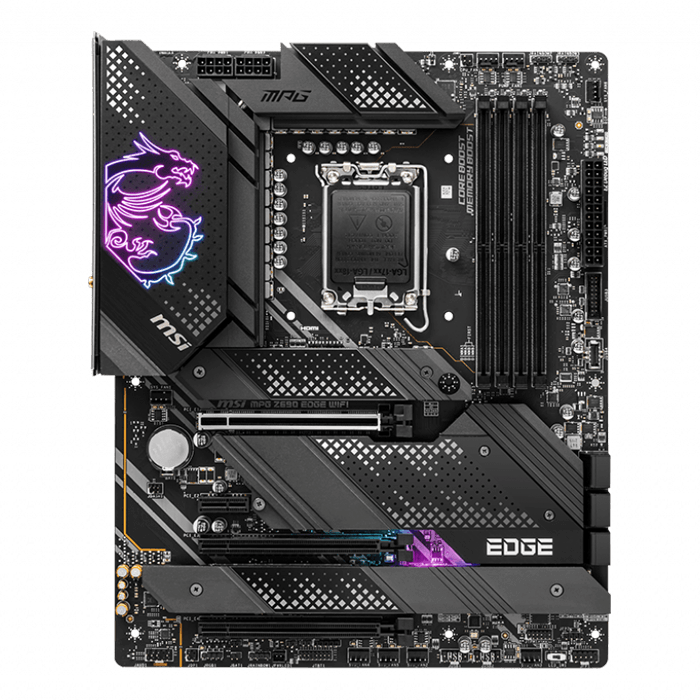

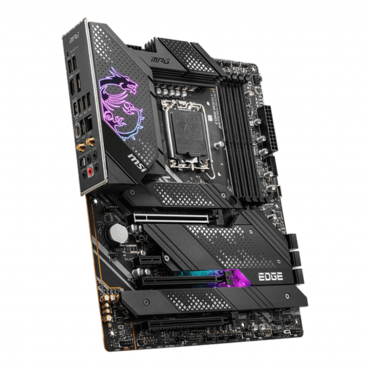

MPG Z690 EDGE WIFI, Intel® Z690 Chipset, LGA 1700, Type-C 2x2, ATX Motherboard

Quantity:
  • SKU: 14695579
  • Manufacturer: MSI
  • MPN: Z690EDGEWI
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$350.73
Quantity:
MPG Z690 EDGE WIFI, Intel® Z690 Chipset, LGA 1700, Type-C 2x2, ATX Motherboard

PREMIUM HARDWARE DESIGN

With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.

Processor
  • Supports 12th Gen Intel® Core, Pentium® Gold and Celeron® Processors 1
  • Processor socket LGA1700
  1. Please go to intel.com for compatibility information.
Chipset

Intel® Z690 Chipset

Memory
  • 4x DDR5 memory slots, support up to 128GB1
  • Supports 1R 4800 MHz, 2R 4000 MHz (by JEDEC & POR)1
  • Max. overclocking frequency:
    • 1DPC 1R Max speed up to 6400+ MHz
    • 1DPC 2R Max speed up to 5400+ MHz
    • 2DPC 1R Max speed up to 4000+ MHz
    • 2DPC 2R Max speed up to 4000+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
  1. Please refer to www.msi.com for more information on compatible memory

Expansion Slots
  • 3x PCIe x16 slots
    • PCI_E1 slot (From CPU)
      • Supports PCIe 5.0 x16
    • PCI_E3 & PCI_E4 slots (From Z690 chipset)
      • Supports PCIe 3.0 x4
  • 1x PCIe 3.0 x1 slot (From Z690 chipset
Onboard Graphics
  • 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz1/ 2
  • 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz1/ 2
  1. Available only on processors featuring integrated graphics.
  2. Graphics specifications may vary depending on the CPU installed.
Multi-GPU

Supports AMD® CrossFire Technology

Storage
  • 6x SATA 6Gb/s ports
    • SATA5~8 (From Z690 Chipset)
    • SATAA~B (From ASMedia ASM1061)
  • 2 x SATA 6Gb/s ports - SATAA & SATAB (From ASMedia
  • ASM1061)
  • 4x M.2 slots (Key M)
    • M2_1 slot (From CPU)
      • Supports PCIe 4.0 x4
      • Supports 2260/ 2280/ 22110 storage devices
    • M2_2 slot (From Z690 Chipset)
      • Supports PCIe 4.0 x4
      • Supports 2260/ 2280 storage devices
    • M2_3 slot (From Z690 Chipset)
      • Supports PCIe 4.0 x4
      • Supports SATA 6Gb/s
      • Supports 2242/ 2260/ 2280 storage devices
    • M2_4 slot (From Z690 Chipset)
      • Supports PCIe 4.0 x4
      • Supports SATA 6Gb/s
      • Supports 2242/ 2260/ 2280 storage devices
  • M2_2~4 support Intel® Optane™ Memory
  • Supports Intel® Smart Response Technology for Intel® Core™ processors
RAID
  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices1
  • Supports RAID 0, RAID 1 , RAID 5 and RAID 10 for M.2 NVMe storage devices
  1. SATAA & SATAB do not support RAID function.
USB

Intel® Z690 Chipset

  • 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel
  • 6x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 5 Type-A ports on the back panel)
  • 2x USB 2.0 Type-A ports on the back panel
  • 2x USB 3.2 Gen 1 5Gbps ports available through the internal USB connector

USB Hub-GL850G

  • 4x USB 2.0 ports available through internal connectors
Audio

Realtek® ALC4080 Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
LAN

1x Intel® I225V 2.5Gbps LAN controller

WiFi & Bluetooth

Intel® Wi-Fi 6E

  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/6GHz 1(160MHz) up to 2.4Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
  • Supports Bluetooth® 5.22, FIPS, FISMA
  1. Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1 and Windows 11.
  2. Bluetooth 5.2 will be ready in WIN10 21H1 and Windows11.
Internal connectors
  • 1x 24-pin ATX main power connector
  • 2x 8-pin ATX 12V power connectors
  • 6x SATA 6Gb/s connectors
  • 4x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 2 10Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 6x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1xTPM module connector
  • 1x Clear CMOS jumper
  • 1x Tuning controller connector
  • 1x TBT connector (Supports RTD3)
LED Feature
  • 1x 4-pin RGB LED connector
  • 3x 3-pin RAINBOW LED connectors
  • 1x EZ LED Control switch
  • 4x EZ Debug LED

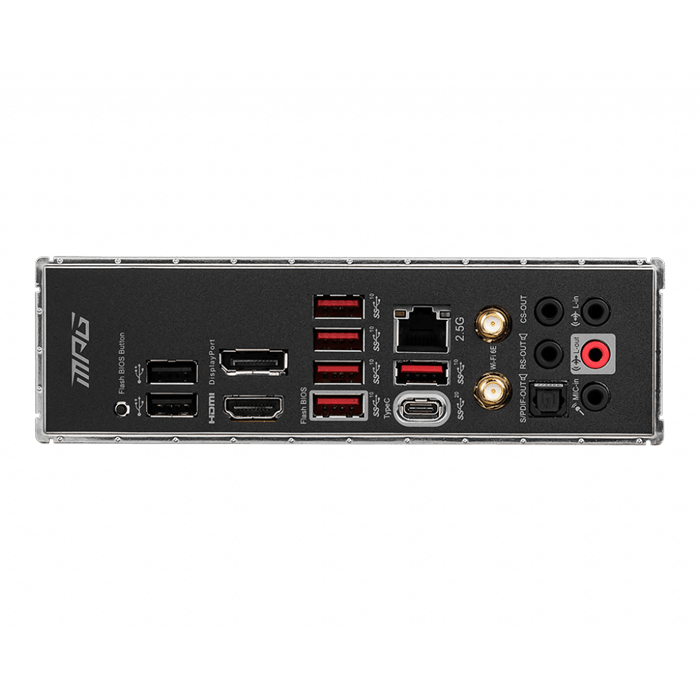

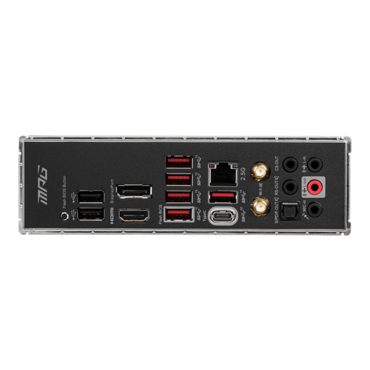

Back panel ports
  • 1x DisplayPort
  • 1x 2.5G LAN
  • 2x Wireless Antenna
  • 5x Audio Connectors
  • 1x Flash BIOS Button
  • 2x USB 2.0
  • 1x HDMI
  • 5x USB 3.2 Gen 2 10Gbps Type-A
  • 1x USB 3.2 Gen 2x2 20Gbps Type-C
  • 1x Optical S/PDIF Out
Dimensions
  • ATX Form Factor
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Mounting

9 mounting holes

Operating System

Support for Windows® 11 64-bit, Windows® 10 64-bit
