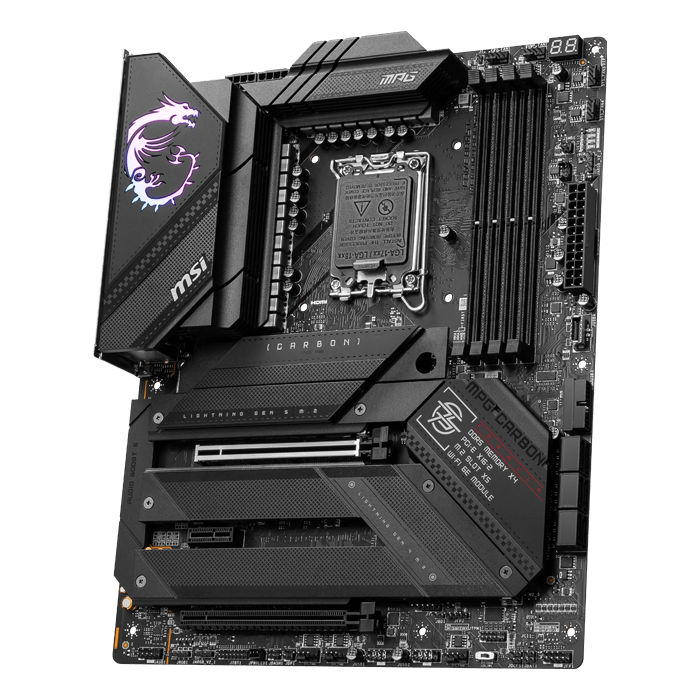

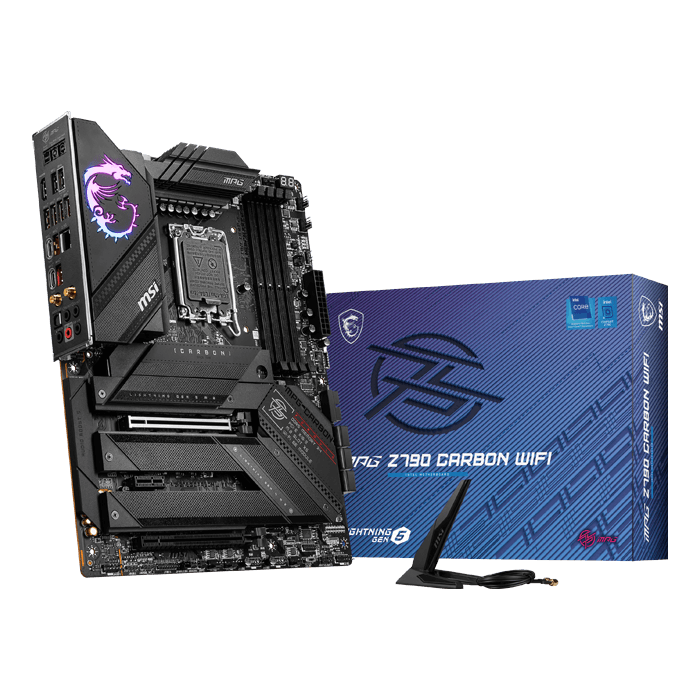

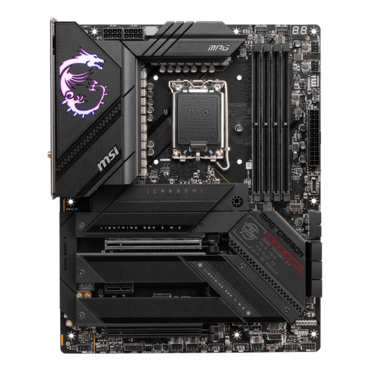

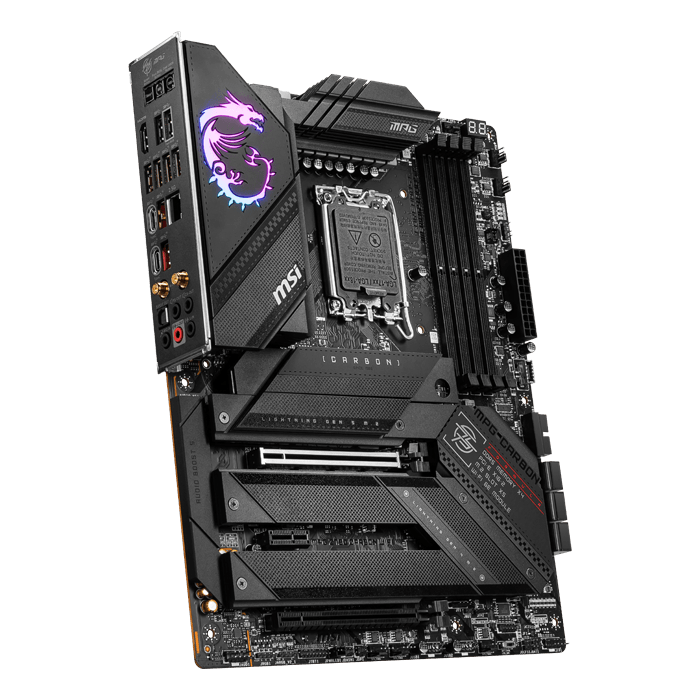

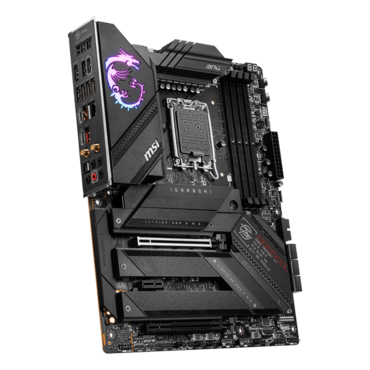

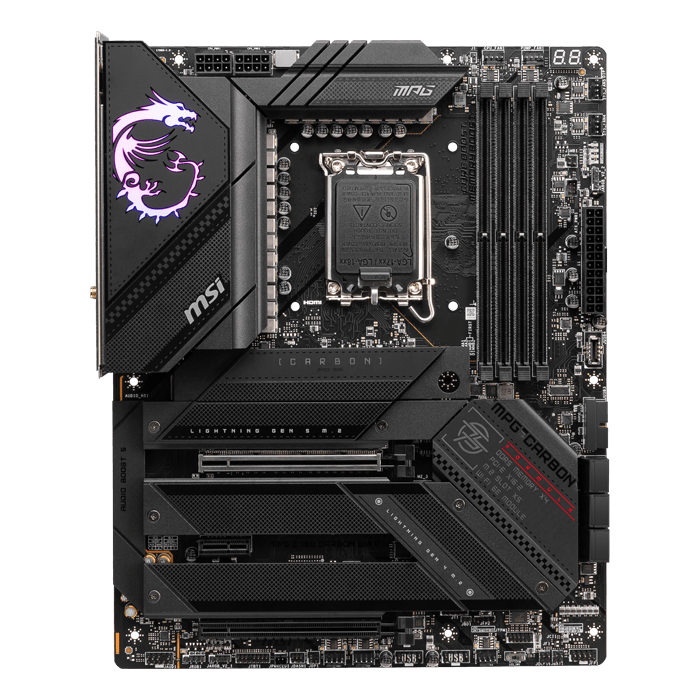

MPG Z790 CARBON WIFI, Intel® Z790 Chipset, LGA 1700, ATX Motherboard

Quantity:
  • SKU: 15151958
  • Manufacturer: MSI
  • MPN: MPG Z790 CARBON WIFI
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$506.04
Quantity:
MPG Z790 CARBON WIFI, Intel® Z790 Chipset, LGA 1700, ATX Motherboard

The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.

  • Supports 13th /12th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1700 socket
  • Supports DDR5 Memory, up to 7600+(OC) MHz
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2x2
  • Enhanced Power Design: Direct 19+1+1 phases power, Core Boost, Memory Boost
  • Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • High Quality PCB: 8-layer PCB made by server grade level material
  • Pre-installed I/O Shield: Better EMI protection and more convenience for installation
CHIPSET INTEL Z790
CPU Support Intel® Core™ 14td/ 13td/ 12td Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700
MEMORY 4x DDR5, Maximum Memory Capacity 256GB
Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7600+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

Supports Intel® XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
AUDIO Realtek® ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel
STORAGE 5x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices
6x SATA 6G
*PCI_E1 slot will be Gen5x8 when installing M.2 SSD in tde M2_2 slot.
LAN Intel® 2.5Gbps LAN
ONBOARD GRAPHICS 1x HDMI™
Support HDMI™ 2.1 witd HDR, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on tde CPU installed.
SLOT 2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
* SATA_A1~A2 do not support RAID function.
USB 4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
6x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
WIRELESS LAN & BLUETOOTH Intel® Wi-Fi 6E
The Wireless module is pre-installed in tde M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetootd® 5.3**, FIPS, FISMA

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetootd 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
INTERNAL IO 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports
LED FEATURE 1x EZ LED Control switch
1x 2-Digit Debug Code LED
4x EZ Debug LED

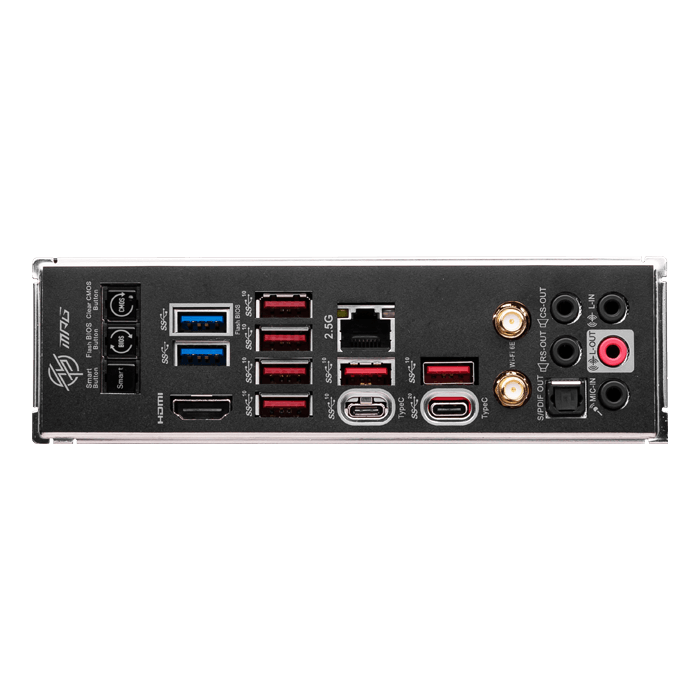

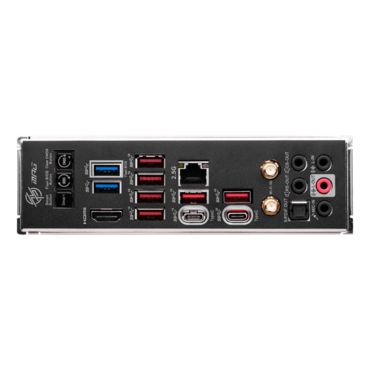

BACK PANEL PORTS
  1. Clear CMOS / Flash
  2. USB 5 Gbps (Type-A)
  3. 2.5G LAN
  4. USB 10Gbps (Type-A)
  5. Audio Connectors
  6. Smart Button
  7. HDMI™
  8. USB 10Gbps (Type-A)
  9. USB 10Gbps (Type-C)
  10. USB 20Gbps (Type-C)
  11. Wi-Fi / Bluetootd
  12. Optical S/PDIF Out
PCB INFO ATX
243.84mmx304.8mm
