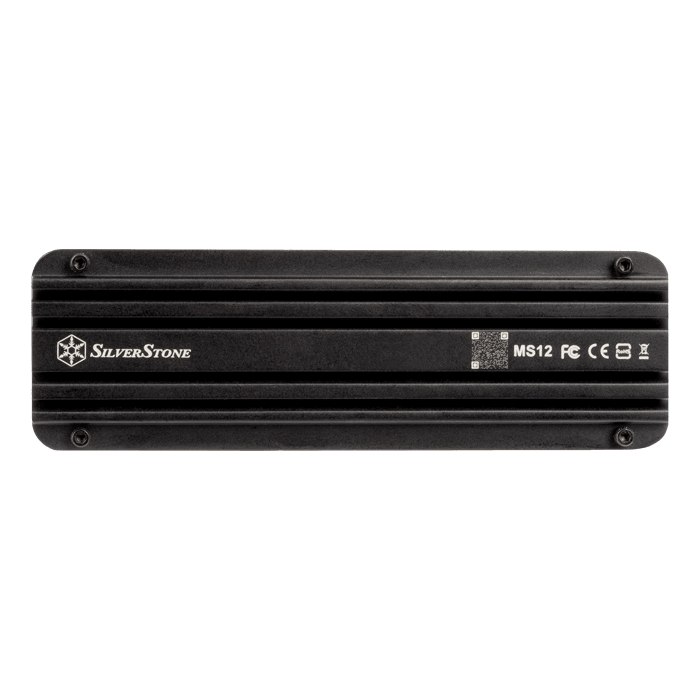

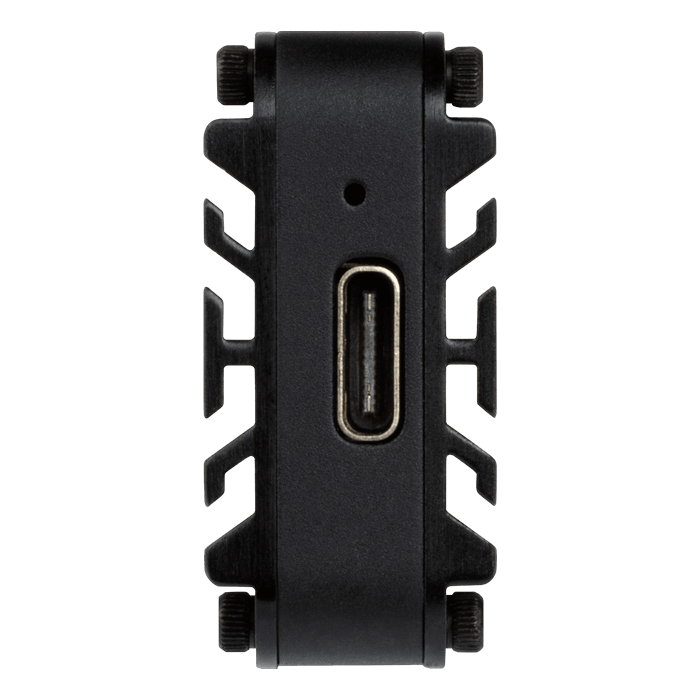

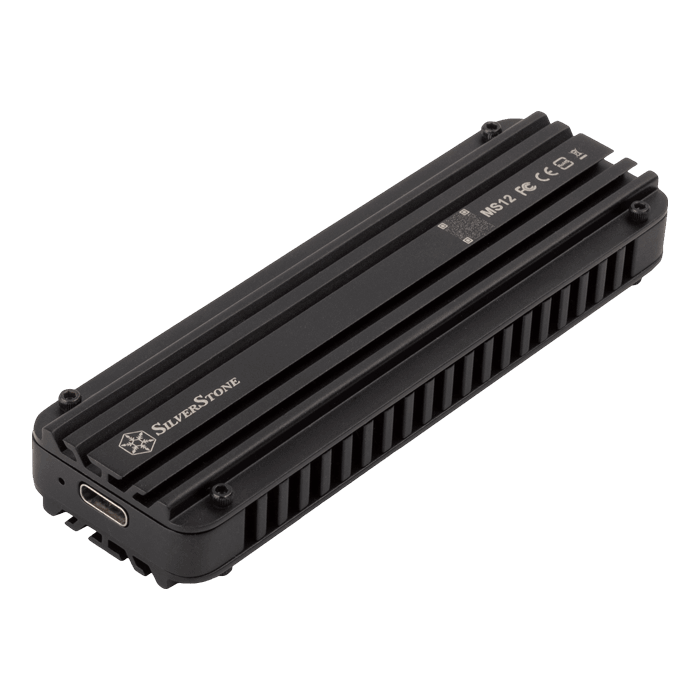

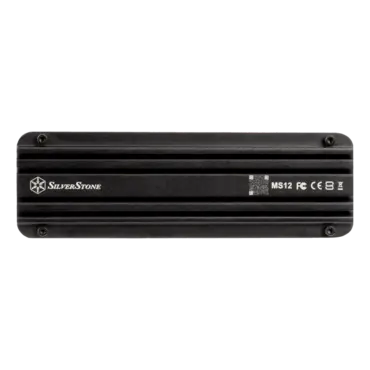

MS12 20Gbps SuperSpeed+ USB 3.2 Type-C to NVMe M.2 SSD enclosure
MS12 20Gbps SuperSpeed+ USB 3.2 Type-C to NVMe M.2 SSD enclosure
MS12 20Gbps SuperSpeed+ USB 3.2 Type-C to NVMe M.2 SSD enclosure
MS12 20Gbps SuperSpeed+ USB 3.2 Type-C to NVMe M.2 SSD enclosure
MS12 20Gbps SuperSpeed+ USB 3.2 Type-C to NVMe M.2 SSD enclosure

MS12 20Gbps SuperSpeed+ USB 3.2 Type-C to NVMe M.2 SSD enclosure

  • SKU: 14607900
  • Manufacturer: SILVERSTONE
  • MPN: SST-MS12
  • Availability: TEMPORARILY OUT OF STOCK
Price
$81.52
Quantity:
MS12 20Gbps SuperSpeed+ USB 3.2 Type-C to NVMe M.2 SSD enclosure

SilverStone MS12 (SST-MS12). 20Gbps SuperSpeed+ transfer rate. MS12 is an USB 3.2 Gen2x2 Type-C enclosure made for NVMe M.2 solid state drives that is capable of reaching up to 20Gbps of transfer rate.

  • Latest USB 3.2 Gen2x2 Type-C interface up to 20Gbps SuperSpeed+ transfer rate
  • Support various lengths of M.2 SSD (22x42mm, 22x60mm, 22x80mm)
  • Support BOT and UAS Protocol
  • Support TRIM command set
  • Support NVMe: SCSI Translation Reference Rev. 1.5
  • Support NVMe Error Reporting & Recovery
  • S.M.A.R.T drive monitoring
  • Compliant with PCI Express Base Specification Rev. 3.1a
  • Compliant with NVM Express Base Specification Rev. 1.3c
  • Aluminum alloy case and built-in thermal pad

    • Specifications
    Model No.
    SST-MS12
    Color Black
    Material Aluminum
    Connector ASMedia ASM2364
    Application USB 3.2 Gen2x2 Type-C NVMe M.2 SSD
    Transfer interface 20Gbps USB 3.2 Gen2x2 Type-C
    LED indicator Powered: Solid Blue
    Data access: Blinking Blue
    Drive interface support PCIe Gen3 x4, NVMe 1.3
    USB Cable length 300±15mm
    Net weight 53g
    Dimension 106.15mm (W) x 15.3mm (H) x 33.3mm (D)
    4.18" (W) x 0.6" (H) x 1.31" (D)
    Thermal Pad
    Thermal conductivity 2W/m.k
    Operating Temp. -40 °C ~ 220 °C
    dimension Gray: 60 mm (W) x 0.5 mm (H) x 20mm (D) - pre-installed
    Gray White: 60 mm (W) x 1.5 mm (H) x 20mm (D) - pre-installed
    Blue 1: 60 mm (W) x 1 mm (H) x 20mm (D)
    Blue 2: 60 mm (W) x 2 mm (H) x 20mm (D)
