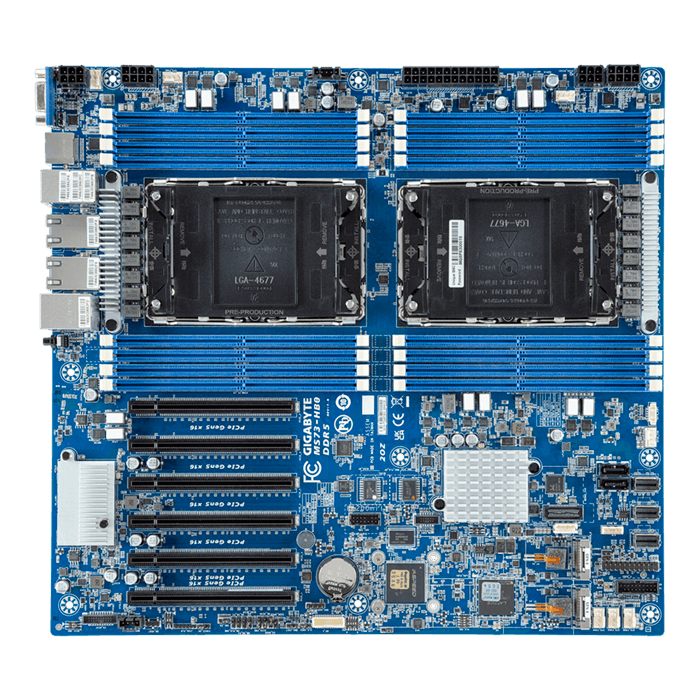

MS73-HB0, Intel® C741, LGA 4677 / 2, DDR5-4800 4TB ECC 3DS RDIMM / 16, VGA, M.2 / 2, USB 3.2 Gen 1 / 2, 10GbLAN / 2, 1GbLAN / 2, E-ATX Retail
- SKU: 17243647
- Manufacturer: GIGABYTE
- MPN: MS73-HB0
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$1,164.63
| Form Factor |
E-ATX 304.8W x 330.2D mm |
| CPU |
5th Generation Intel® Xeon® Scalable Processors 4th Generation Intel® Xeon® Scalable Processors Dual processor, CPU TDP up to 270W Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable |
| Socket |
2 x LGA 4677 Socket E |
| Chipset | Intel® C741 Chipset |
| Memory |
16 x DIMM slots DDR5 memory supported only 8-Channel memory architecture RDIMM modules up to 96GB supported 3DS RDIMM modules up to 256GB supported 5th Gen Intel® Xeon®: Up to 5600MHz 4th Gen Intel® Xeon®: Up to 4800MHz |
| LAN |
2 x 10Gb/s BASE-T LAN ports (Intel® X710-AT2) 2 x 1Gb/s LAN ports (Intel® I210-AT) NCSI function supported (by switch setting) 1 x 10/100/1000 management LAN |
| Video |
Integrated in Aspeed® AST2600 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp, DDR4 SDRAM |
| Audio | N/A |
| SAS | N/A |
| SATA |
3 x SlimSAS connectors for 12 x SATA 6Gb/s 2 x SATA 6Gb/s ports |
| RAID | Intel® SATA RAID 0/1/10/5 |
| Expansion Slots |
Slot_6: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU_0 Slot_5: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU_1 Slot_4: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU_1 Slot_3: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU_0 Slot_2: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU_0 Slot_1: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU_1 2 x M.2 slots: - M-key - PCIe Gen4 x4, from CPU_0 - Supports 2280/22110 cards |
| Internal I/O |
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 2 x 6-pin ATX 12V power connectors 2 x M.2 slots 2 x CPU fan headers 4 x System fan headers 1 x USB 3.2 Gen1 header 1 x TPM header 1 x VROC connector 1 x Front panel header 1 x Backplane board header 1 x PMBus connector 1 x IPMB connector 1 x Clear CMOS jumper 1 x BIOS recovery jumper 1 x Buzzer |

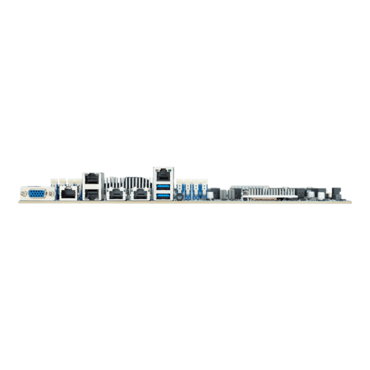

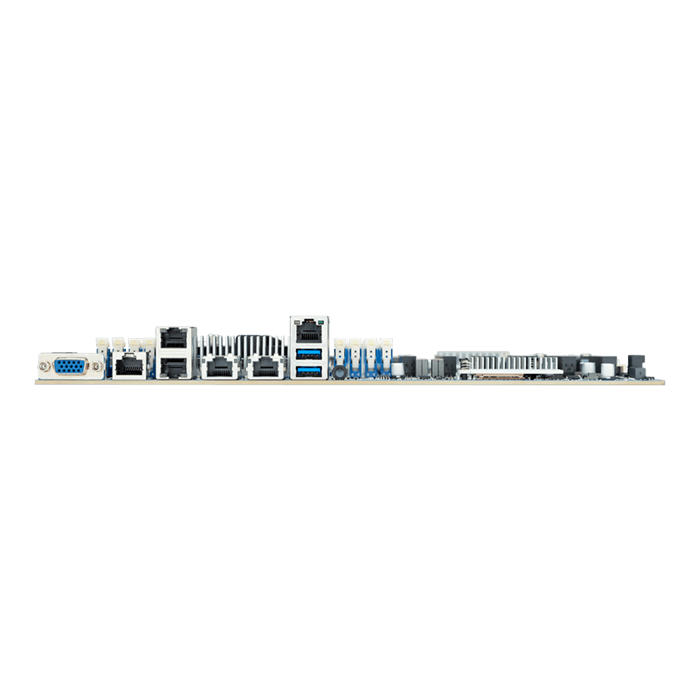

| Rear I/O |
2 x USB 3.2 Gen1 1 x VGA 1 x RJ45 COM 4 x RJ45 1 x MLAN 1 x ID button with LED |
| TPM |
1 x TPM header with SPI interface Optional TPM2.0 kit: CTM010 |
| OS Supported |
Please refer to OS compatibility table in support page Additional certifications: Windows Server 2022 (x64) |
| Board Management |
Aspeed® AST2600 management controller GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
|
| PSU Connectors |
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 2 x 6-pin ATX 12V power connectors |
| Operating Properties |
Operating temperature: 10°C to 40°C Operating humidity: 8-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing) |
| Retail Packaging Content |
1 x MS73-HB0 1 x I/O shield 1 x Quick start guide 6 x Carrier clips 1 x SlimSAS to 4 x SATAIII 6Gb/s cable Single Box dimensions: 409 x 355 x 78 mm Carton dimensions: 729 x 415 x 432 mm Quantity: 10 x single boxes in one carton |
| Bulk Packaging Content |
10 x MS73-HB0 10 x I/O shields 60 x Carrier clips Carton dimensions: 600 x 473 x 517 mm |
| Reference Numbers |
Retail: 9MS73HB0MR-000-3*/1* Bulk: 9MS73HB0NR-000-3*/1* Part Numbers: - I/O shield: 12AIO-MD72HB-00R - SlimSAS to 4 x SATA cable (600mm): 25CFM-600800-A4R |
