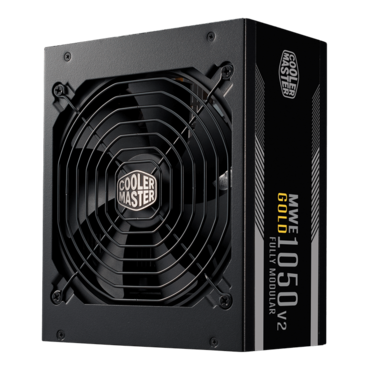

MWE GOLD 1050 - V2 ATX 3.0, 80 PLUS Gold 1050W, Fully Modular, ATX Power Supply
100% ATX 3.0 COMPATIBLE
Cooler Master took the initiative and continuously developing our first ATX3.0 Power Supply lineup. Compliant with ATX3.0 standard and 12VHPWR connectors, the MWE Gold 1050 - V2 ATX3.0 can fully support the peak power drawn by the 40 series RTX graphic cards and whole system.
- 80 PLUS Gold Efficiency
- 100% Japanese Capacitor
- 140mm Silent Fan
- High Temperature Resilience
- Fully Modular Cabling
- 10 Year Warranty
Model | MPE-A501-AFCAG-3 |
ATX Version | ATX Rev. 3.0 |
PFC | Active PFC |
Input Voltage | 100-240V |
Input Current | 13-6A |
Input Frequency | 50-60Hz |
Dimensions (L x W x H) | 180 x 150 x 86 mm |
Fan Size | 140mm |
Fan Bearing | FDB |
Efficiency | ≥90% @ Typical Load |
80 PLUS Rating | 80 PLUS Gold |
ErP 2014 Lot 3 | Yes |
Operating Temperature | 0-50°C |
Power Good Signal | 100 - 150 ms |
Hold Up Time | ≥16ms at 100% Load |
MTBF | >100,000 Hours |
Protections | OVP, OPP, SCP, OCP, UVP, OTP, Inrush Protection |
Regulatory | TUV, cTUVus, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, BIS |

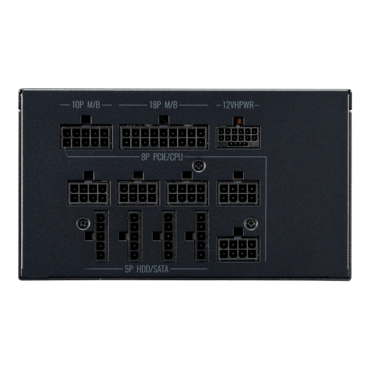

ATX 24 Pin Connectors | 1 |
EPS 4+4 Pin Connectors | 1 |
EPS 8 Pin Connector | 1 |
SATA Connectors | 12 |
Peripheral 4 Pin Connectors | 4 |
PCI-e 6+2 Pin Connectors | 3 |
12VHPWR Connector | 1 |
Series | MWE Gold Series |
80 Plus | Gold |
Modular | Full Modular |
Wattage | Above 750W |
