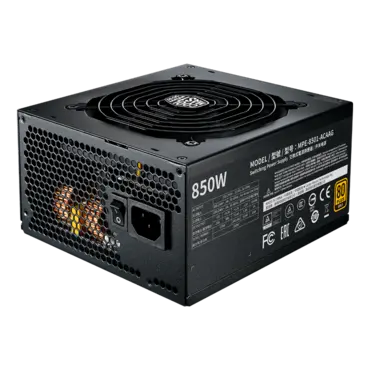

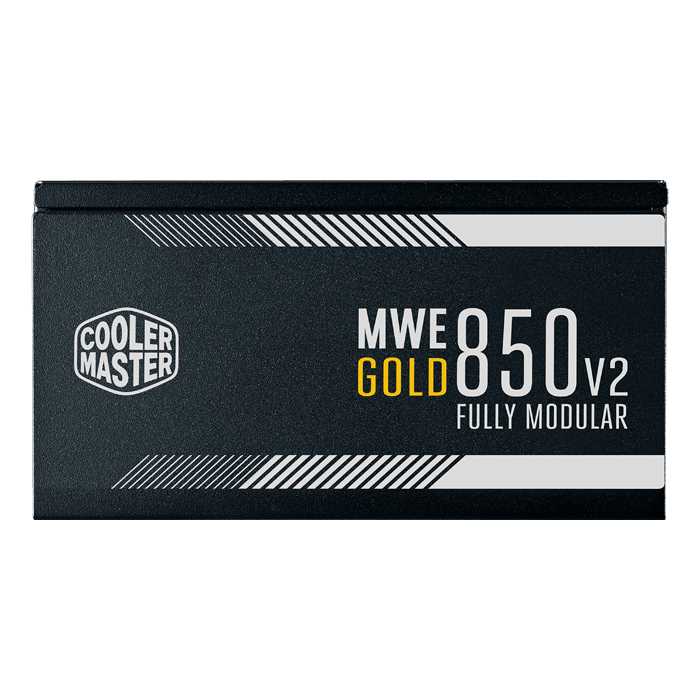

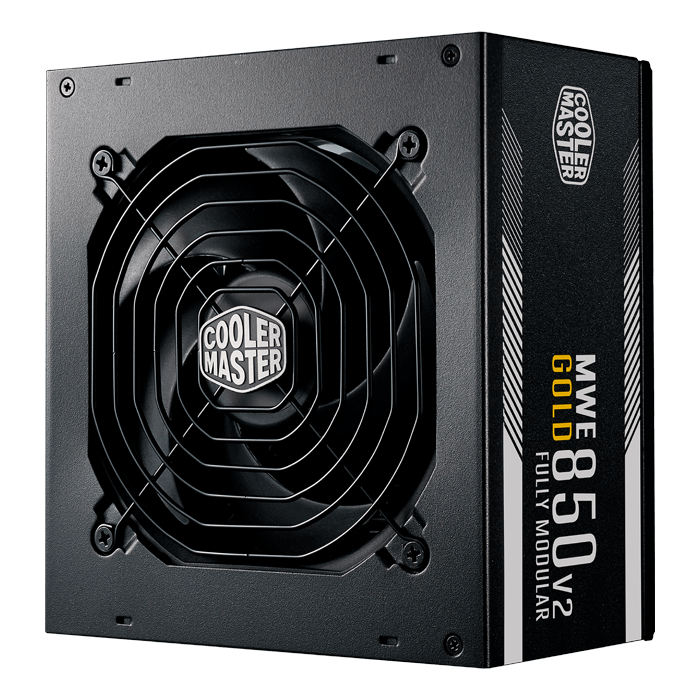

MWE GOLD 850 - V2 FULL MODULAR, 80 PLUS Gold 850W, Fully Modular, ATX Power Supply

SKU: 13665900

Manufacturer: COOLER MASTER

MPN: MPE-8501-AFAAG

Availability: Available


Price: $149.69
or as low as $5/month
Quantity:

COOLER MASTER MWE GOLD 850 - V2 FULL MODULAR (MPE-8501-AFAAG-US). POWER UP. The MWE Gold - V2 (Full Modular) is the next step in the evolution of Cooler Master's entry level 80 PLUS Gold power supply unit line. The original MWE Gold series was created in order to offer a simpler and more affordable Gold rated option in order to help users make the transition from 80 PLUS White and Bronze power supply units more accessible. While there is still demand for White and Bronze units, the global standard has been shifting to Gold. Some countries have even begun to legislate 80 PLUS Gold efficiency as the legal minimum to purchase. This is why bringing affordable options like the MWE Gold is so important to Cooler Master. The MWE Gold - V2 improves upon the original version in the places where users will see the most immediate benefit.

  • 80 Plus Gold Efficiency
  • 2 EPS Connectors
  • 120mm HDB Fan
  • High Temperature Resilience

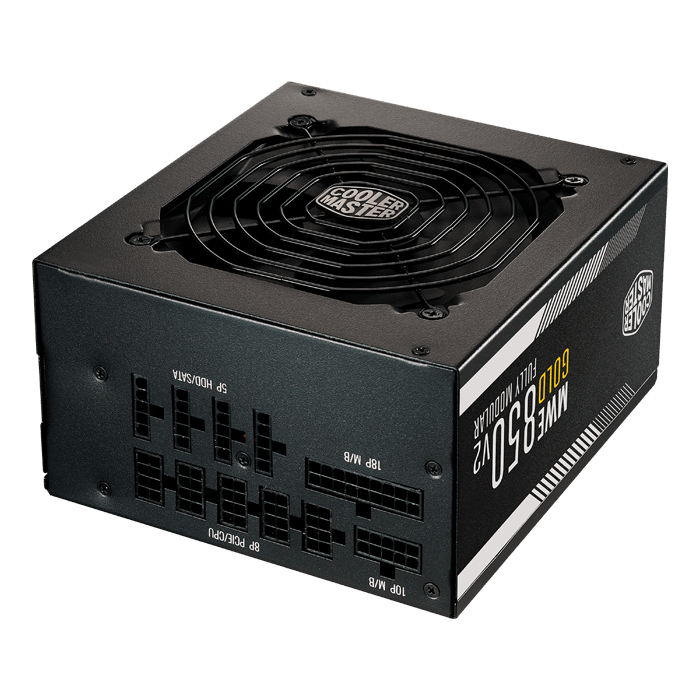

  • Full Modular Cabling
  • 5 Year Warranty
MODEL MPE-8501-AFAAG
ATX VERSION ATX 12V
PFC Active PFC
INPUT VOLTAGE 90-264V
INPUT CURRENT 12-6A
INPUT FREQUENCY 47-63Hz
DIMENSIONS (L X W X H) 160 x 150 x 86 mm

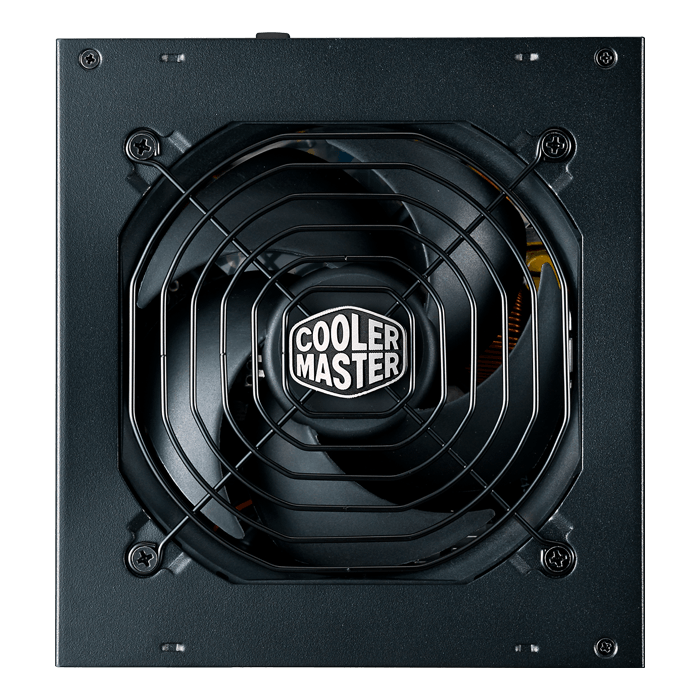

FAN SIZE 120mm
FAN BEARING HDB
FAN SPEED 1500 RPM
NOISE LEVEL @ 20% 0 dBA
NOISE LEVEL @ 50% 17.8 dBA
NOISE LEVEL @ 100% 25.9 dBA
EFFICIENCY 90% @ Typical Load
80 PLUS RATING 80 PLUS Gold
ERP 2014 LOT 3 Yes
OPERATING TEMPERATURE 0-50°C
POWER GOOD SIGNAL 100 - 150 ms
HOLD UP TIME >16ms at 100% Load
MTBF >100,000 Hours
PROTECTIONS OVP, OPP, OTP, SCP, OCP, UVP
REGULATORY TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI
ATX 24-PIN CONNECTORS 1
EPS 4+4 PIN CONNECTORS 1
EPS 8 PIN CONNECTOR 1
SATA CONNECTORS 12
PERIPHERAL 4-PIN CONNECTORS 4
PCI-E 6+2 PIN CONNECTORS 4
SERIE MWE Gold Series
80 PLUS Gold
MODULAR Full Modular
WATTAGE 850W
