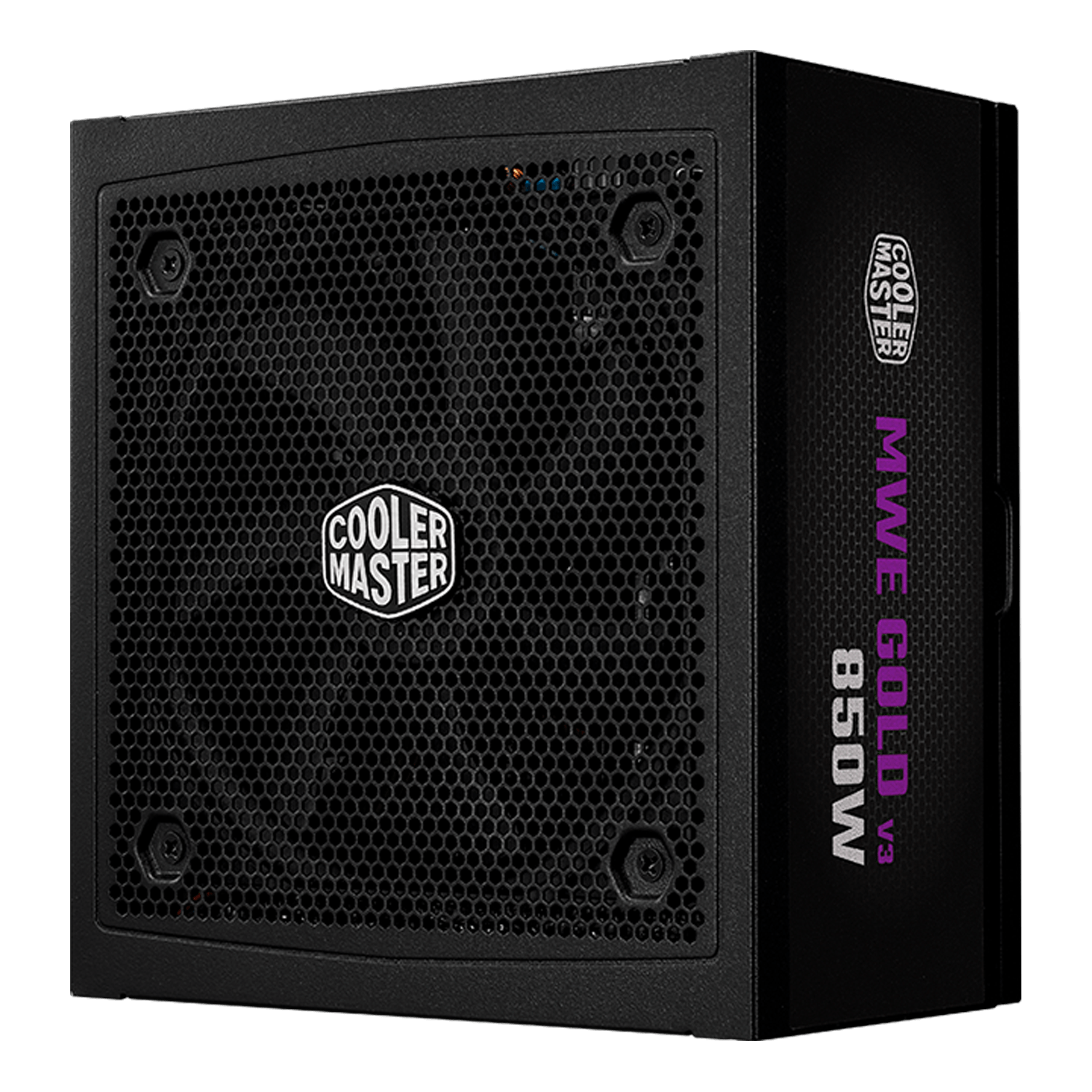

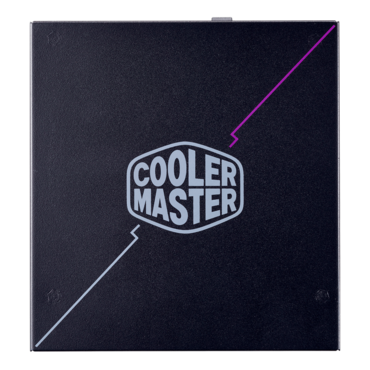

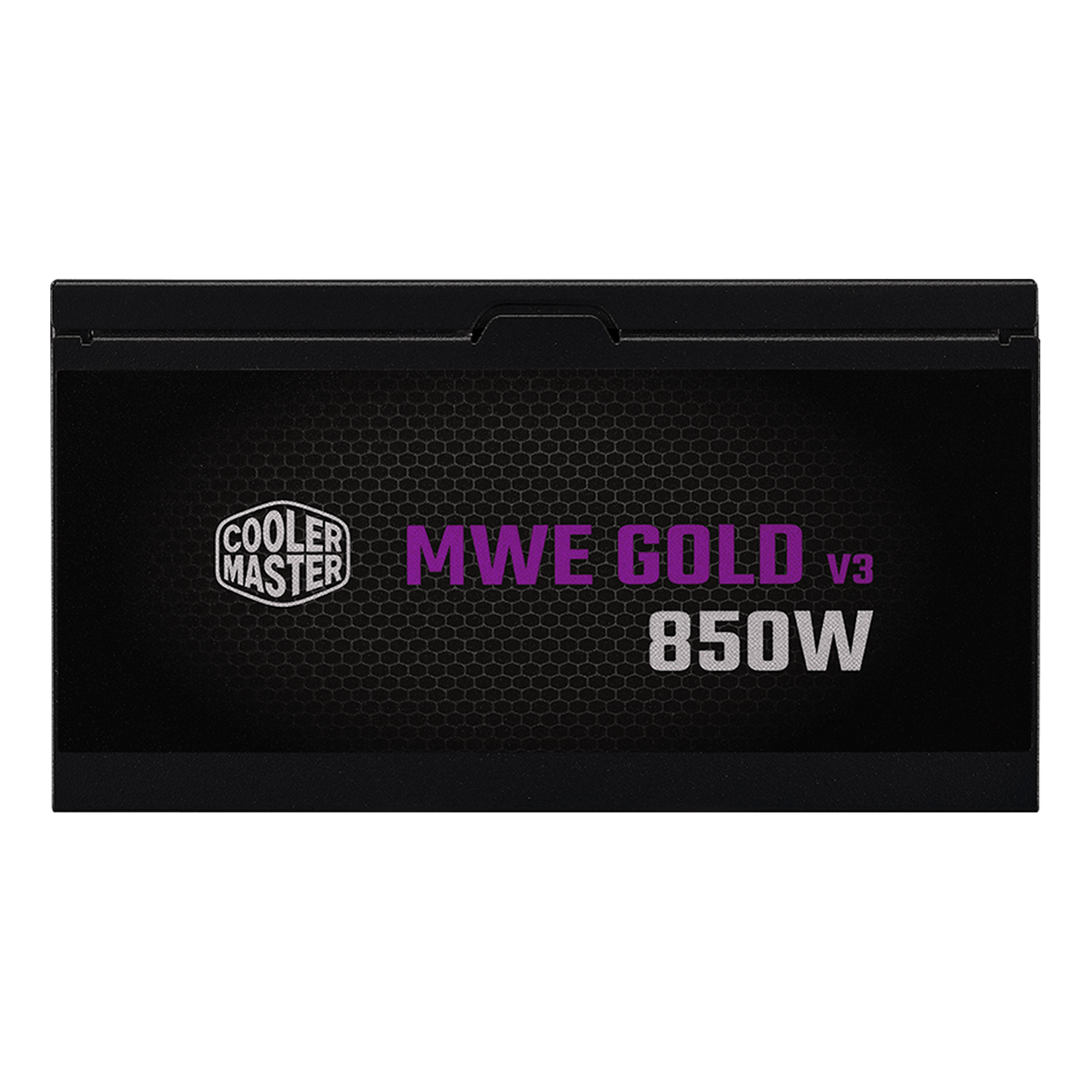

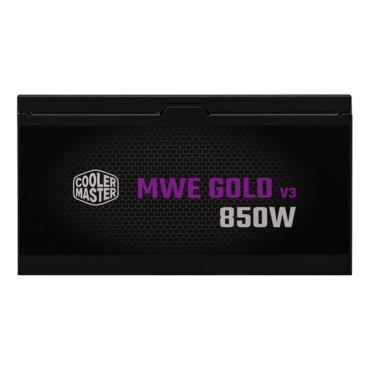

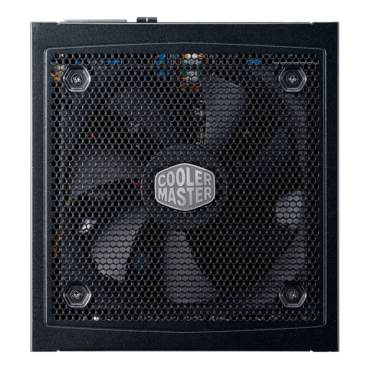

MWE Gold 850 V3 ATX 3.1, 80 PLUS Gold 850W, Fully Modular, ATX Power Supply
- SKU: 17768832
- Manufacturer: COOLER MASTER
- MPN: MPX-8503-AFAG-2BUV
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$101.95
MWE Gold 850 V3 ATX 3.1, 80 PLUS Gold 850W, Fully Modular, ATX Power Supply
The MWE Gold V3 sets a new standard of durability and efficiency for Cooler Master power supplies. This 80 Plus Gold certified unit can achieve Titanium-level efficiency at light loads in a 115V test. Featuring an APFC half-bridge LLC and DC-to-DC design, the MWE Gold V3 ensures top-tier performance with 80 Plus Gold efficiency. Smart thermal control and zero-RPM mode reduce noise and improve heat dissipation. The ATX 3.0 12V-2x6 native cable with a durable 90-degree connector adds space-saving convenience, making the MWE Gold V3 a powerhouse unit. Features: Designed For Durability: The MWE Gold V3 sets a new benchmark for durability and efficiency, now with ATX 3.0 support. 90 Durable Cables: Featuring a 90 12V-2x6 PCIe 5.0 connector, fo
The MWE Gold V3 sets a new standard of durability and efficiency for Cooler Master power supplies. This 80 Plus Gold certified unit can achieve Titanium-level efficiency at light loads in a 115V test. Featuring an APFC half-bridge LLC and DC-to-DC design, the MWE Gold V3 ensures top-tier performance with 80 Plus Gold efficiency. Smart thermal control and zero-RPM mode reduce noise and improve heat dissipation. The ATX 3.0 12V-2x6 native cable with a durable 90-degree connector adds space-saving convenience, making the MWE Gold V3 a powerhouse unit. Features: Designed For Durability: The MWE Gold V3 sets a new benchmark for durability and efficiency, now with ATX 3.0 support. 90 Durable Cables: Featuring a 90 12V-2x6 PCIe 5.0 connector, fo
| Model | 850: MPX-8503-AFAG-2BUV |
| ATX Version | ATX 12V Ver. 3.1 |
| PFC | Active PFC |
| Input Voltage | 100-240V |
| Input Current | 10-5A |
| Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 160 x 150 x 86 mm |
| Fan Size | 120mm |
| Fan Bearing | HDB |
| Fan Speed | 2500 RPM |
| Efficiency | ≥90% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Gold |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0-40°C |
| Power Good Signal | 100 - 150 ms |
| Hold Up Time | ≥16ms at 80% Load |
| MTBF | >100,000 Hours |
| Protections | OPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection |
| Regulatoryc | TUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (Based on region's requests.) |
| ATX 24 Pin Connectors | 1 |
| EPS 4+4 Pin Connectors | 1 |
| EPS 8 Pin Connector | 1 |
| SATA & Peripheral 4 Pin Connectors | 6 (SATA) / 2 (Peripheral) |
| PCI-e 6+2 Pin Connectors | 4 |
| 12V-2x6 Connectors | 1 |
| Series | MWE Gold Series |
| Category | Above 750W |
| Modular | Fully Modular |
| 80 Plus Efficiency | Gold |
| Form Factor | ATX |
| Watts | 850W |
