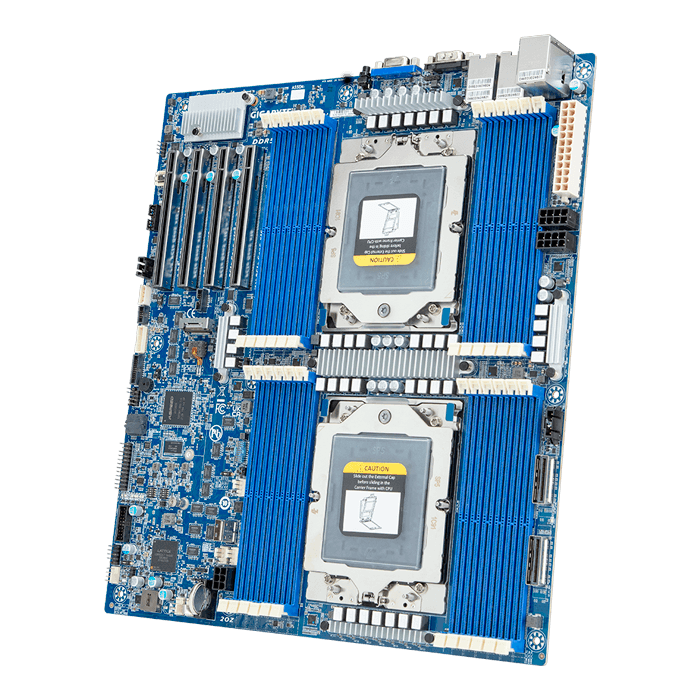

MZ73-LM0, AMD SoC, SP5 / 2, DDR5-4800 6TB ECC 3DS RDIMM / 24, VGA, M.2, USB 3.2 Gen 1 / 2, 10GbLAN / 2, E-ATX Retail
Quantity:
- SKU: 16060496
- Manufacturer: GIGABYTE
- MPN: MZ73-LM0
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$1,443.73
- AMD EPYC™ 9004 series processor family
- Dual processor, 5nm technology
- 12-Channel RDIMM DDR5, 24 x DIMMs
- 2 x 10Gb/s BASE-T LAN ports (Broadcom® BCM57416)
- 1 x Dedicated management port
- 1 x SlimSAS 4i with 4 x SATA 6Gb/s ports
- 2 x MCIO 8i with 4 x Gen5 NVMe or 16 x SATA ports
- 1 x M.2 slot with PCIe Gen4 x4 interface
- 4 x PCIe Gen5 x16 expansion slots
| Form Factor |
E-ATX 304.8W x 335.2D mm |
| CPU |
AMD EPYC™ 9004 series processor family Dual processor, 5nm technology Up to 84-core, 168 threads per processor CPU TDP up to 300W |
| Socket |
2 x LGA 6096 Socket SP5 |
| Chipset | System on Chip |
| Memory |
24 x DIMM slots DDR5 memory supported only 12-Channel memory architecture per processor RDIMM modules up to 128GB supported 3DS RDIMM modules up to 256GB supported Memory speed: Up to 4800 MHz |
| LAN |
2 x 10Gb/s BASE-T LAN ports (1 x Broadcom® BCM57416) NCSI function supported 1 x 10/100/1000 management LAN |
| Video |
Integrated in Aspeed® AST2600 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp, DDR4 SDRAM |
| Audio | N/A |
| SAS | N/A |
| SATA |
1 x SlimSAS 4i with 4 x SATA 6Gb/s ports, from CPU_0 2 x MCIO 8i with 4 x Gen5 NVMe or 16 x SATA ports, from CPU_1 |
| RAID | N/A |
| Expansion Slots |
Slot_4: 1 x PCIe x16 (Gen5 x16 bus) slot. from CPU_0 Slot_3: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU_0 Slot_2: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU_1 Slot_1: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU_1 1 x M.2 slot: - M-key - PCIe Gen4 x4, from CPU_0 - Supports 2280/22110 cards 2x MCIO 8i with 4 x Gen5 NVMe or 16 x SATA ports, from CPU_1 |
| Internal I/O |
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x 6-pin ATX 12V power connector 2 x MCIO 8i connectors 1 x M.2 slot 2 x CPU fan headers 3 x System fan headers 1 x USB 3.2 Gen1 header 1 x TPM header 1 x Front panel header 1 x HDD backplane board header 1 x PMBus connector 1 x IPMB connector 1 x Clear CMOS jumper 1 x BIOS recovery jumper 1 x Buzzer |
| Rear I/O |

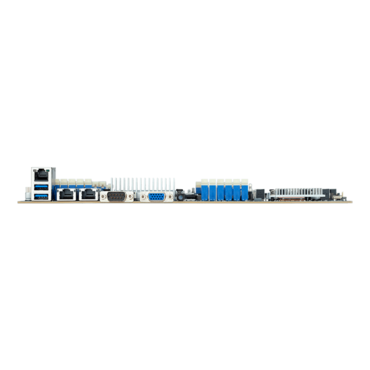

2 x USB 3.2 Gen1 1 x VGA 1 x COM 2 x RJ45 1 x MLAN 1 x ID button with LED |
| TPM |
1 x TPM header with SPI interface Optional TPM2.0 kit: CTM010 |
| OS Compatibility | Please refer to OS compatibility table in support page |
| Board Management |
Aspeed® AST2600 management controller GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
|
| PSU Connectors |
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x 6-pin ATX 12V power connector |
| Operating Properties |
Operating temperature: 10°C to 40°C Operating humidity: 8-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing) |
| Retail Packaging Content |

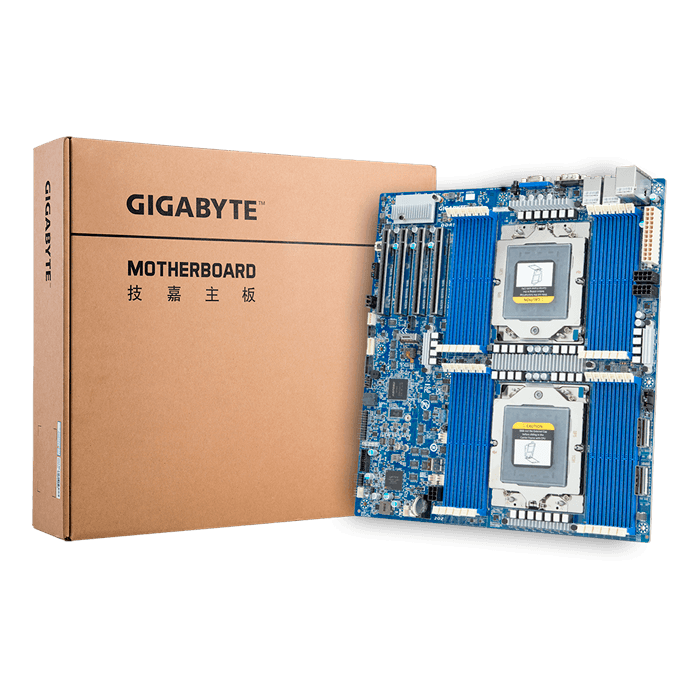

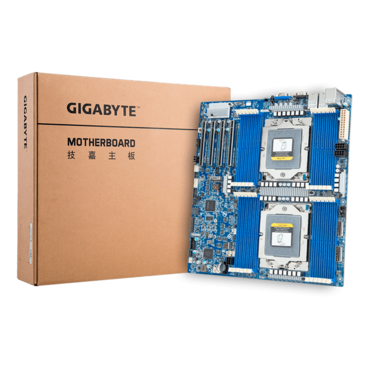

1 x MZ73-LM0 1 x I/O shield 1 x Quick start guide 1 x SlimSAS 4i to 4 x SATA 6Gb/s cable Single Box dimensions: 409 x 355 x 78 mm Carton dimensions: 729 x 415 x 432 mm Quantity: 10 x single boxes in one carton |
| Bulk Packaging Content |
10 x MZ73-LM0 10 x I/O shields Carton dimensions: 600 x 473 x 517 mm |
| Reference Numbers |
Retail: 9MZ73LM0MR-000-1* Bulk: 9MZ73LM0NR-000-1* Part Numbers: - I/O shield: 12AIO-MZ73L0-00R - CPU cooler: 25ST0-0Z6022-C1R (optional) - SlimSAS 4i to 4 x SATA 6Gb/s cable: 25CFM-600800-A4R NOTE: Please select GIGABYTE qualified cable to make sure Gen5 signal quality |
