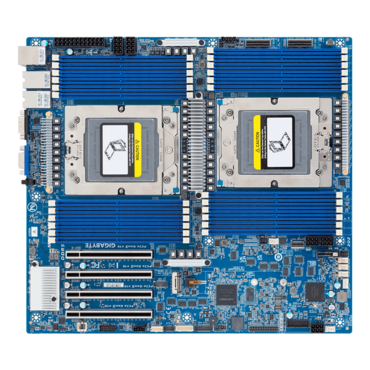

MZ73-LM2, AMD SoC, SP5 / 2, DDR5-6000 3TB ECC RDIMM / 24, VGA, M.2, MCIO / 2, 10GbLAN / 2, EATX OEM
Quantity:
- SKU: 18410772
- Manufacturer: GIGABYTE
- MPN: MZ73-LM2
- Availability: CONTACT US
Starting At
$2,573.69
| Form Factor (WxD, mm) |
E-ATX 304.8 x 335.2 |
| CPU |
AMD EPYC™ 9005 Series Processors AMD EPYC™ 9004 Series Processors Dual processor, cTDP up to 500W[1] [1]To support 500W CPUs, please select verified fansinks from the "Optional parts" section and ensure all fan power connectors (4pin+3pin for each fan) are properly connected. [Note]If only 1 CPU is installed, some PCIe or memory functions might be unavailable. |
| Socket |
2 x LGA 6096 Socket SP5 |
| Chipset | System on Chip |
| Memory |
24 x DIMM slots DDR5 memory supported 12-Channel memory per processor AMD EPYC™ 9005: RDIMM: Up to 6000 MT/s AMD EPYC™ 9004: RDIMM: Up to 4800 MT/s |
| LAN |
2 x 10Gb/s LAN (1 x Broadcom®BCM57416) - Support NCSI function 1 x 10/100/1000 Mbps Management LAN |
| Video |
Integrated in ASPEED®AST2600 - 1 x VGA port |
| Audio | N/A |
| Storage Interface |
MCIO: 2 x MCIO 8i for 4 x Gen5 NVMe or 16 x SATA, from CPU_1 SlimSAS: 1 x SlimSAS 4i for 4 x SATA, from CPU_0 M.2: 1 x M.2 (2280/22110), PCIe Gen5 x4, from CPU_0 |
| RAID | N/A |
| PCIe Expansion Slots |
Slot_4: PCIe x16 (Gen5 x16), from CPU_0 Slot_3: PCIe x16 (Gen5 x16), from CPU_0 Slot_2: PCIe x16 (Gen5 x16), from CPU_1 Slot_1: PCIe x16 (Gen5 x16), from CPU_1 2 x MCIO 8i (PCIe Gen5 x8 or SATA), from CPU_1[1][2] [1]Please contact technical support for qualified cables to ensure Gen5 signal quality. [2]The connector supports SATA by default. To enable the other option, please refer to the manual and adjust the settings in the BIOS. |
| Internal I/O |
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 3 x 6-pin ATX 12V power connectors 2 x CPU fan headers (4pin) 2 x CPU fan headers (3pin) 4 x System fan headers 1 x USB 3.2 Gen1 x2 header 1 x M.2 slot 2 x MCIO 8i connectors 1 x SlimSAS 4i connector 1 x Front panel header 1 x Backplane board header 1 x PMBus connector 1 x IPMB connector 1 x TPM header |
| Rear I/O |

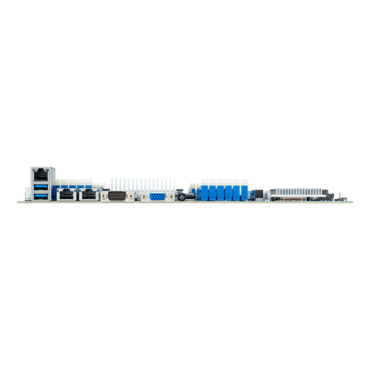

2 x USB 3.2 Gen1 ports (Type-A) 1 x VGA port 1 x COM port 2 x RJ45 ports 1 x MLAN port 1 x ID button with LED |
| Security Modules |
1 x TPM header with SPI interface -OptionalTPM2.0 kit:CTM012 |
| OS Supported | Please refer to OS compatibility table in support page |
| Board Management |
ASPEED®AST2600 Baseboard Management Controller GIGABYTE Management Console web interface
|
| PSU Connectors |
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 3 x 6-pin ATX 12V power connectors |
| Operating Properties |
Operating temperature: 10°C to 40°C Operating humidity: 8-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing) |
| Retail Packaging Content |
1 x MZ73-LM2 1 x I/O shield 1 x Quick start guide 1 x SlimSAS 4i to 4 x SATA cable (600mm) Single Box dimensions: 409 x 355 x 78 mm Carton dimensions: 729 x 415 x 432 mm Quantity: 10 x single boxes in one carton |
| Bulk Packaging Content |
10 x MZ73-LM2 10 x I/O shields Carton dimensions: 600 x 473 x 517 mm |
| Reference Numbers |
Retail: 9MZ73LM2MR-000-3* Bulk: 9MZ73LM2NR-000-3* Part Numbers: - I/O shield: 12AIO-MZ73L1-00R - SlimSAS 4i to 4 x SATA cable (600mm): 25CFM-600800-A4R Optional parts: - 500W CPU fansink: 25ST0-0Z1921-C1R |
