MasterAir MA624 STEALTH, 160mm Height, Copper/Aluminum CPU Cooler
Cooler Master MasterAir MA624 STEALTH (MAM-D6PS-314PK-R1). PREMIUM AESTHETICS. Stealth black aluminum top cover matches all-black hardware throughout to offer a premium finish.

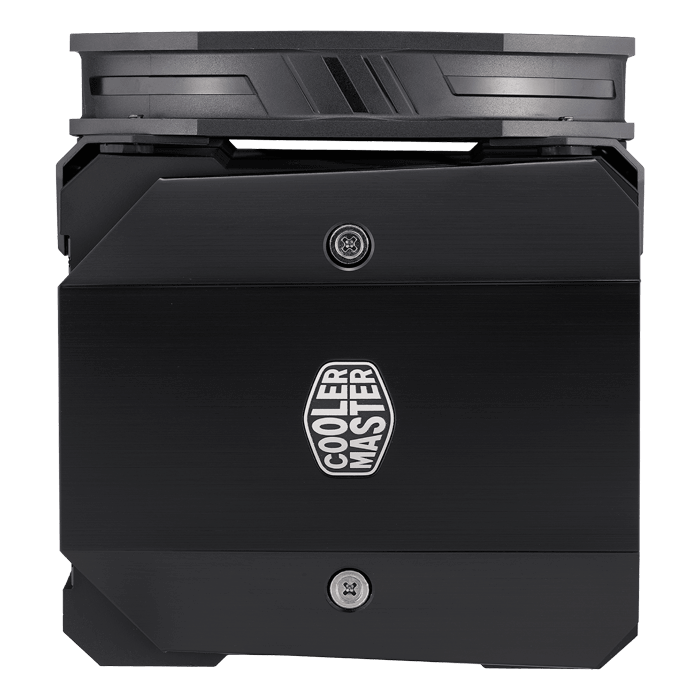

- Premium Aluminum Black Top Cover

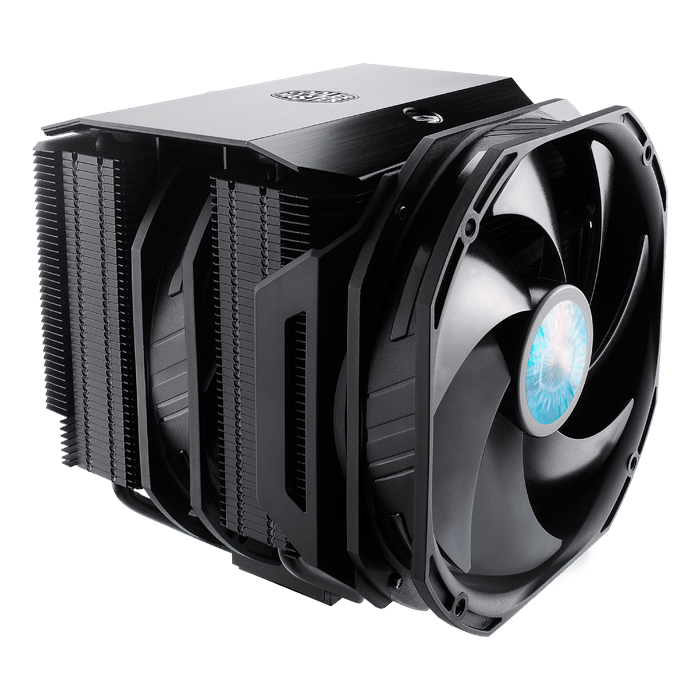

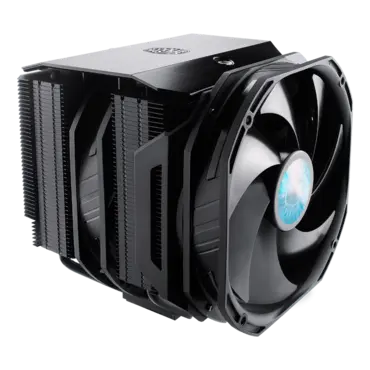

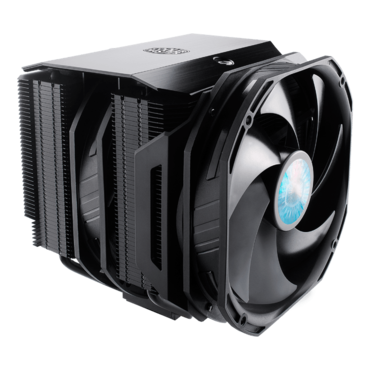

- Dual Tower Heat Sink

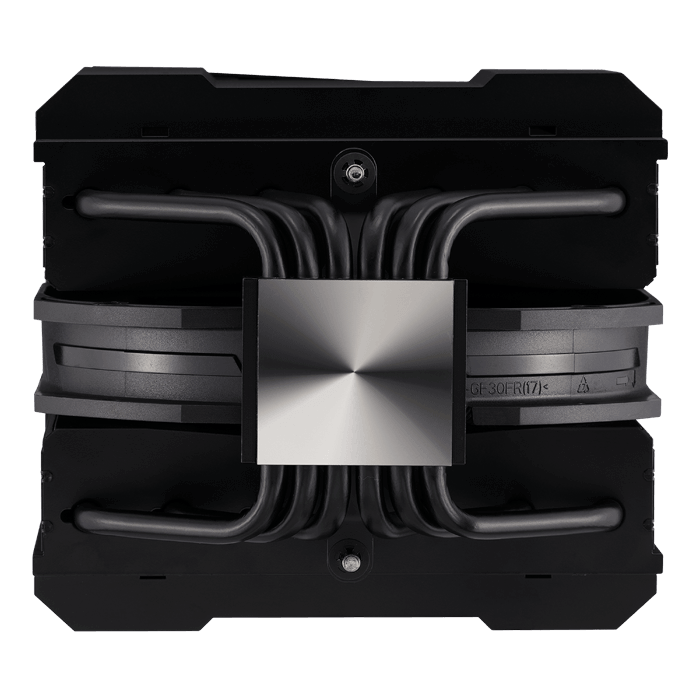

- 6 Heat Pipes with Nickel Plated Base

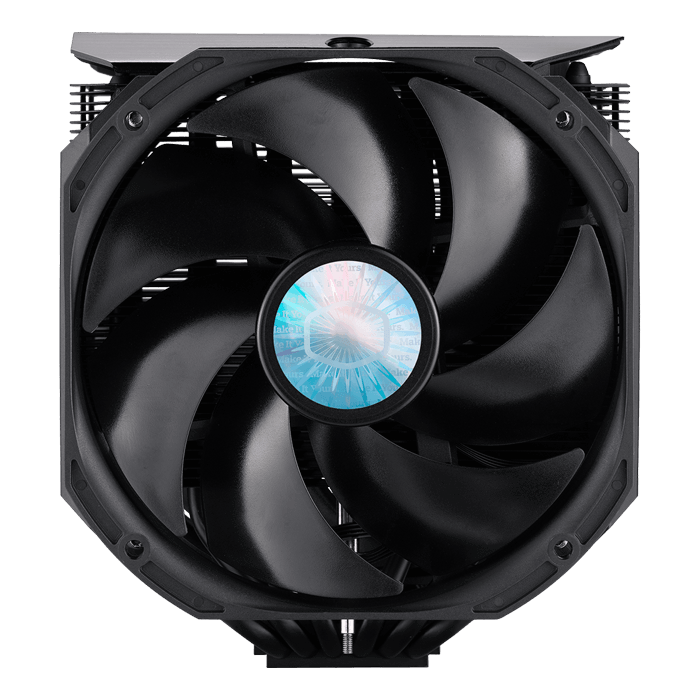

- Dual SickleFlow 140 Fan
- 3rd 120 mm fan for RAM Clearance
- Easy Mounting System
PRODUCT NUMBER | MAM-D6PS-314PK-R1 |
EXTERIOR COLOR | Black |
CPU SOCKET | LGA2066, LGA2011-v3, LGA2011, LGA1200, LGA1366, LGA1156, LGA1155, LGA1151, LGA1150, AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1 |
DIMENSIONS (L X W X H) | 144.9 x 153.2 x 160 mm / 5.7 x 6 x 6.3 inch |
HEAT SINK MATERIAL | 6 Heat Pipes, Aluminum Fins |
FAN DIMENSIONS (L X W X H) | 140 mm Fan - 140 x 140 x 25 mm / 5.5 x 5.5 x 1 inch, 120 mm Fan - 120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch |
FAN QUANTITY | 140 mm Fan - 2 PCS, 120 mm Fan - 1 PC |
FAN SPEED | 140 mm Fan - 650-1400 RPM ± 5%, 120 mm Fan - 650-1800 RPM ± 5% |
FAN AIRFLOW | 140 mm Fan - 67 CFM (Max), 120 mm Fan - 62 CFM (Max) |
FAN NOISE LEVEL | 140 mm Fan - 10 ~ 27 dBA, 120 mm Fan - 8 ~ 27 dBA |
FAN AIR PRESSURE | 140 mm Fan - 2.25 mmH2O (Max), 120 mm Fan - 2.5 mmH2O (Max) |
FAN MTTF | 160,000 Hours |
FAN POWER CONNECTOR | 4-Pin (PWM) |
FAN RATED VOLTAGE | 12VDC |
FAN RATED CURRENT | 0.15A |
FAN SAFETY CURRENT | 140 mm Fan - 0.4A, 120 mm Fan - 0.37A |
FAN POWER CONSUMPTION | 1.8W |
WARRANTY | 5 years |
SERIES | MasterAir |
COOLER TYPE | Air Cooler |
HEATPIPES | 6 |
PACKAGE CONTENTS |
MA624 Stealth 2 x SickleFlow 140mm 1 x SickleFlow 120mm Install Tool Kits for AMD/ Intel Manual |
