MasterBox NR200, No PSU, Mini-ITX, Black, Mini Tower Case

Quantity:
  • SKU: 13516254
  • Manufacturer: COOLER MASTER
  • MPN: MCB-NR200-KNNN-S00
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$81.60
Quantity:
MasterBox NR200, No PSU, Mini-ITX, Black, Mini Tower Case

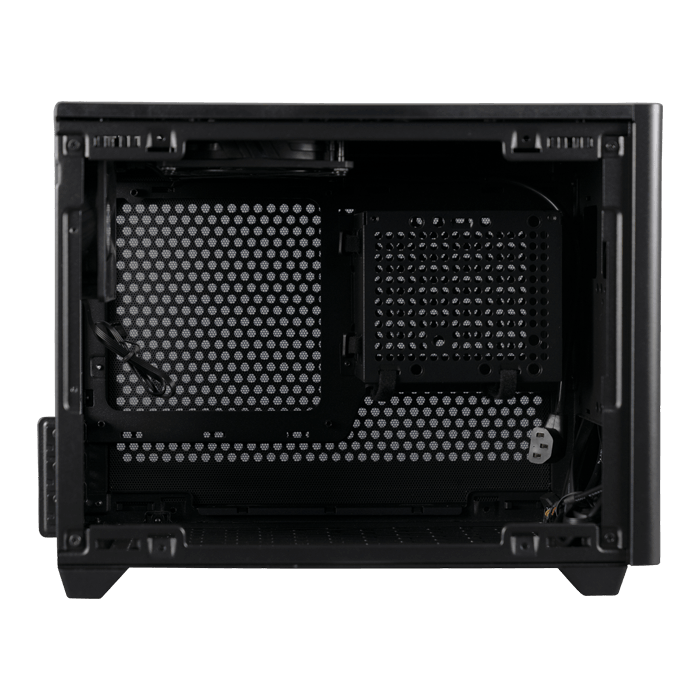

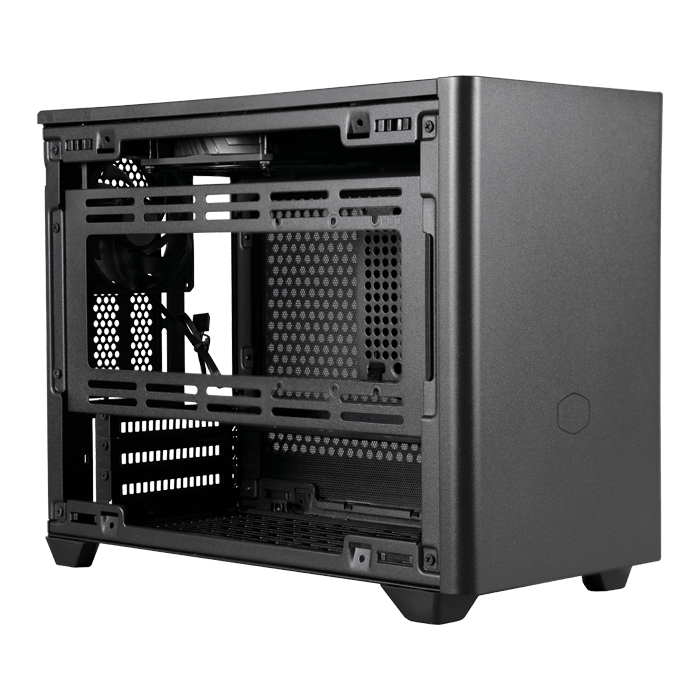

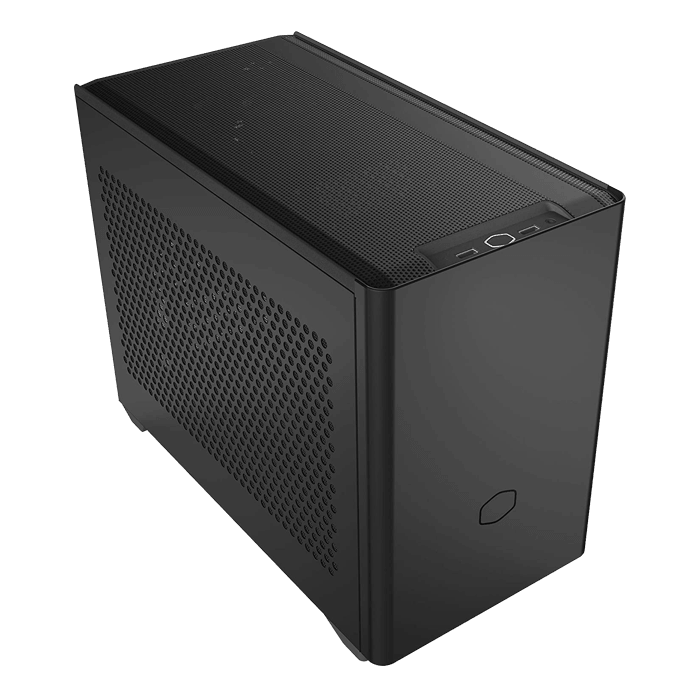

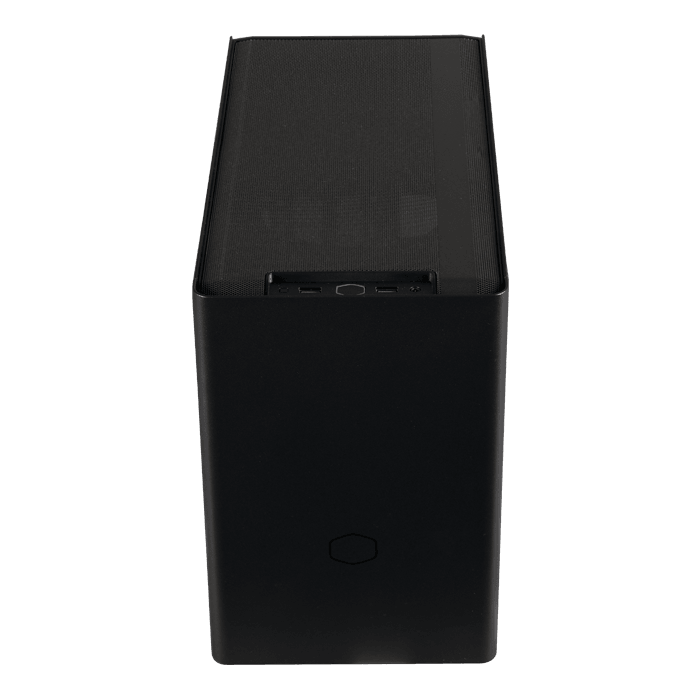

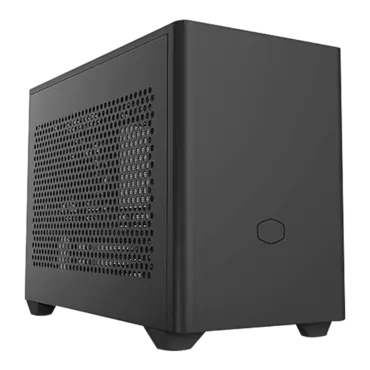

MasterBox NR200 mini case, from Cooler Master

Small Size, Big Features

This 18-liter case packs all of the features found in a core performance ATX chassis in a space less than half the volume. Take full advantage of your high-end processor and triple-slot graphics card thanks to open ventilation, multiple fan mounts, and generous clearance for water cooling. Easy-to-remove panels allow 360-degree access to the internals of your system for easy build and maintenance.

  • Unrestricted Cooling Potential
  • Triple-slot GPU support Easy, Tool-free access 360 Degree Accessibility
  • Multiple motherboard support options
  • Out-of-the-box Custom Cooling Support
  • High quality materials
MODEL NUMBER MCB-NR200-KNNN-S00
SERIES MasterBox Series
SIZE Mini ITX
AVAILABLE COLOR(S) Black
MATERIALS Steel, Plastic, Mesh
DIMENSIONS (L X W X H) 376 x 185 x 292mm incl. Protrusions, 360 x 185 x 274mm excl. Protrusions
VOLUME (EXLC. PROTRUSIONS) 18.25L
MOTHERBOARD SUPPORT Mini DTX, Mini ITX, Max. size: 244 x 226mm
EXPANSION SLOTS 3
5.25" DRIVE BAYS 0
3.5" DRIVE BAYS 1 (Max. 2)
2.5" / 3.5" DRIVE BAYS (COMBO) 1
2.5" DRIVE BAYS 2 (Max. 3)
I/O PANEL 2x USB 3.2 Gen 1 Type-A, 1x 3.5mm Headset Jack (Audio+Mic)
PRE-INSTALLED FANS - TOP 1x 120mm 650-1800RPM PWM (SickleFlow)
PRE-INSTALLED FANS - FRONT N/A
PRE-INSTALLED FANS - REAR 1x 92mm 650-2300RPM PWM (SickleFlow)
PRE-INSTALLED FANS - BOTTOM N/A
FAN SUPPORT - TOP 2x 120mm
FAN SUPPORT - REAR 1x 92mm
FAN SUPPORT - BOTTOM 2x 120mm (recommended slim fans for GPUs wider than 2.5 PCI slots)
FAN SUPPORT - SIDE 2x 120/140mm
RADIATOR SUPPORT - TOP N/A
RADIATOR SUPPORT - REAR 92mm (not compatible with vertical GPU installation)
RADIATOR SUPPORT - BOTTOM 120mm, 140mm, (recommended only for single slot water-cooled GPUs or vertically mounted GPUs)
RADIATOR SUPPORT - SIDE 120mm, 140mm, 240mm, 280mm, (not compatible with vertical GPU installation)
CLEARANCE - CPU COOLER 155mm, 76mm (GPU in vertical position)
CLEARANCE - PSU 130mm
CLEARANCE - GFX L: 330mm (incl. power connector), H: 156mm (incl. power connector), W: 60mm (triple slot)
DUST FILTERS Top, Bottom, Left side, Right side
POWER SUPPLY SUPPORT SFX, SFX-L
WARRANTY 2 years
EAN CODE 4719512106747 (MCB-NR200-KNNN-S00)
UPC CODE 884102079054 (MCB-NR200-KNNN-S00)
WEIGHT 4.6 kg / 10.1 lbs
