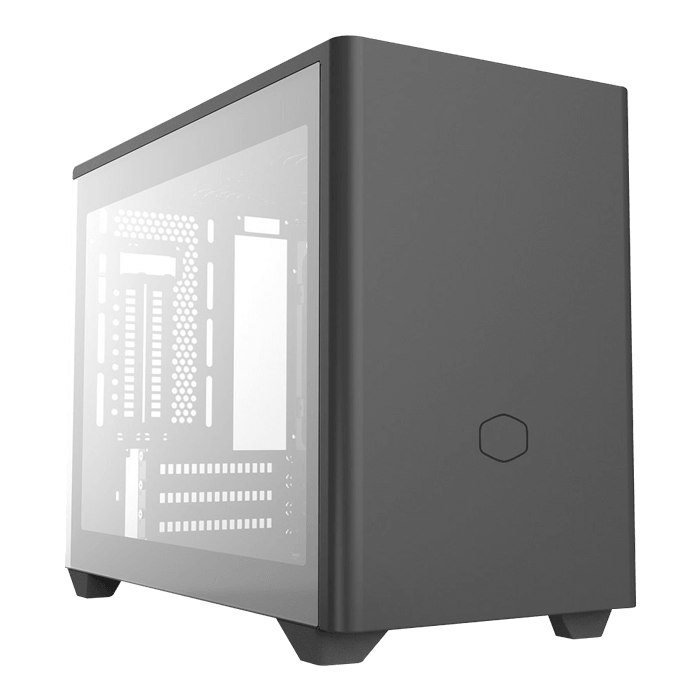

MasterBox NR200P, Tempered Glass, No PSU, Mini-ITX, Black, Mini Tower Case
Quantity:
- SKU: 13739856
- Manufacturer: COOLER MASTER
- MPN: MCB-NR200P-KGNN-S00
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$174.96
| MODEL NUMBER | MCB-NR200P-KGNN-S00 |
| SERIES | MasterBox Series |
| SIZE | Mini ITX |
| AVAILABLE COLOR(S) | Black |
| MATERIALS | Steel, Plastic, Mesh, Tempered Glass |
| DIMENSIONS (L X W X H) | 376 x 185 x 292mm incl. Protrusions, 360 x 185 x 274mm excl. Protrusions |
| VOLUME (EXLC. PROTRUSIONS) | 18.25L |
| MOTHERBOARD SUPPORT | Mini DTX, Mini ITX, Max. size: 244 x 226mm |
| EXPANSION SLOTS | 3 |
| 5.25" DRIVE BAYS | 0 |
| 3.5" DRIVE BAYS | 1 (Max. 2) |
| 2.5" / 3.5" DRIVE BAYS (COMBO) | 1 |
| 2.5" DRIVE BAYS | 2 (Max. 3) |
| I/O PANEL | 2x USB 3.2 Gen 1 Type-A, 1x 3.5mm Headset Jack (Audio+Mic) |
| PRE-INSTALLED FANS - TOP | 2x 120mm 650-1800RPM PWM (SickleFlow) |
| PRE-INSTALLED FANS - FRONT | N/A |
| PRE-INSTALLED FANS - REAR | N/A |
| PRE-INSTALLED FANS - BOTTOM | N/A |
| FAN SUPPORT - TOP | 2x 120mm |
| FAN SUPPORT - REAR | 1x 92mm |
| FAN SUPPORT - BOTTOM | 2x 120mm (recommended slim fans for GPUs wider than 2.5 PCI slots) |
| FAN SUPPORT - SIDE | 2x 120/140mm |
| RADIATOR SUPPORT - TOP | N/A |
| RADIATOR SUPPORT - REAR | 92mm (not compatible with vertical GPU installation) |
| RADIATOR SUPPORT - BOTTOM | 120mm, 240mm, (recommended for custom loops only) |
| RADIATOR SUPPORT - SIDE | 120mm, 140mm, 240mm, 280mm, (not compatible with vertical GPU installation) |
| CLEARANCE - CPU COOLER | 76mm (GPU in vertical position), 153mm (tempered glass side panel), 155mm (vented steel side panel) |
| CLEARANCE - PSU | 130mm |
| CLEARANCE - GFX | L: 330mm (incl. power connector), H: 156mm (incl. power connector), W: 60mm (triple slot) |
| DUST FILTERS | Top, Bottom, Left side, Right side |
| POWER SUPPLY SUPPORT | SFX, SFX-L |
| WARRANTY | 2 years |
| EAN CODE | 4719512106761 (MCB-NR200P-KGNN-S00) |
| UPC CODE | 884102079078 (MCB-NR200P-KGNN-S00) |
| WEIGHT | 5.1 kg |
| NOTE | Single slot water-cooler GPUs or vertically mounted GPUs are recommended when using bottom radiator position, This product is only compatible for devices that support the PCI-E 3.0 specification. If you use this product with a motherboard that supports PCI-E 4.0, please enter into BIOS option and select PCI-E 3.0 before installation. |
