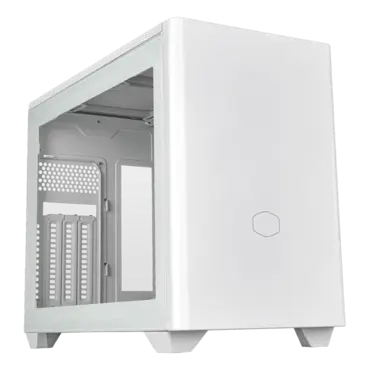

MasterBox NR200P V2, Tempered Glass, No PSU, Mini-ITX, White/Grey, Mini Tower Case

  • SKU: 17526543
  • Manufacturer: COOLER MASTER
  • MPN: NR200PV2-WCNN-S00
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
Model Number NR200PV2-WCNN-S00
Series MasterBox Series
Size Mini ITX
Exterior Color White / Grey
Materials - Exterior SGCC Steel, Mesh, ABS Plastic
Materials - Left Side Panel Tempered Glass x1, Steel x1
Dimensions (L x W x H) 372 x 185 x 292mm (incl. Protrusions), 360 x 185 x 274mm (excl. Protrusions)
Volume 18.25L
Motherboard Support Mini ITX, Max. size: 170x180mm
Expansion Slots 3
3.5" Drive Bays 1 (Max. 2, remove bottom fan)
2.5" / 3.5" Drive Bays (Combo) 1
2.5" Drive Bays 1 (Max. 2)
I/O Panel 2x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 2x2 Type C, 1x 3.5mm Headset Jack (Audio+Mic)
Included Accessories 1x PCIe 4.0 x16 riser cable, 1x GPU Holder
Pre-installed Fans - Top N/A
Pre-installed Fans - Front N/A
Pre-installed Fans - Rear N/A
Pre-installed Fans - Bottom 1x 120mm 650~1800rpm PWM SickleFlow
Fan Support - Top 2x 120/140mm
Fan Support - Rear N/A
Fan Support - Bottom 2x 120mm (1x max 15mm, w/o 3.5" HDD at the bottom)
Fan Support - Side N/A
Radiator Support - Top 120mm, 140mm, 240mm, 280mm
Radiator Support - Rear N/A
Radiator Support - Bottom N/A
Radiator Support - Side N/A
Clearance - CPU Cooler 67mm
Clearance - PSU 130mm
Clearance - GFX Exceed front bracket: L: 357mm (incl. power connector) , H: 160mm (incl. power connector) , W: 73mm (triple slot); Not exceed front bracket: L: 334mm (incl. power connector) , H: 160mm (incl. power connector) , W: 80mm (triple slot)
Dust Filters Bottom, Left side, Right side, Top
Power Supply Support SFX, SFX-L
Warranty 2 years
