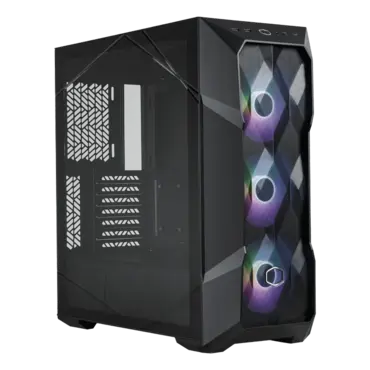

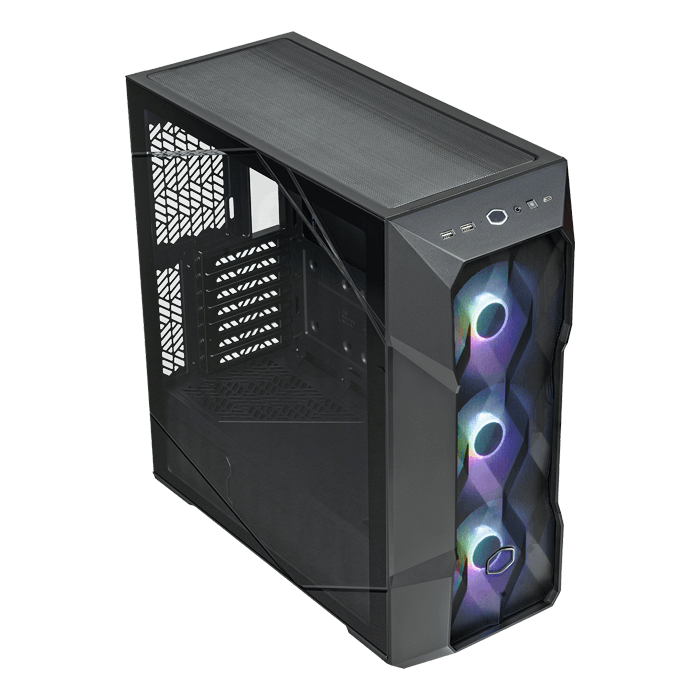

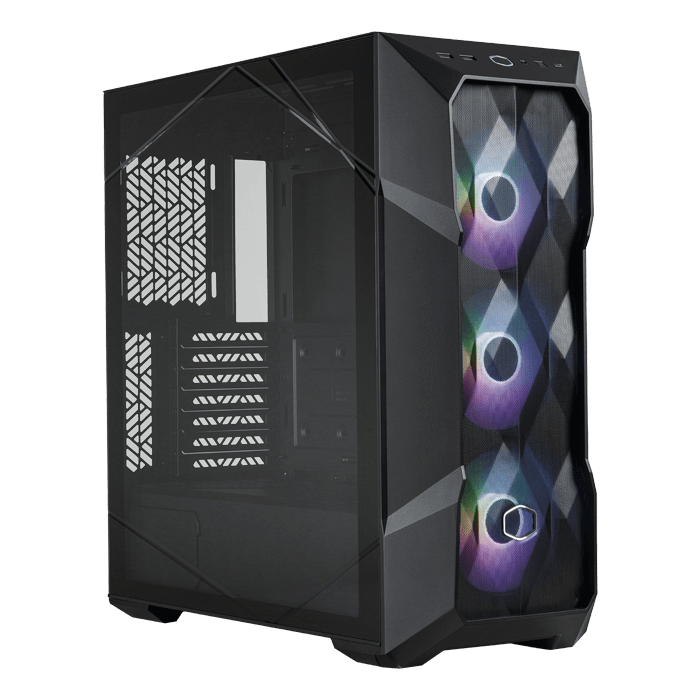

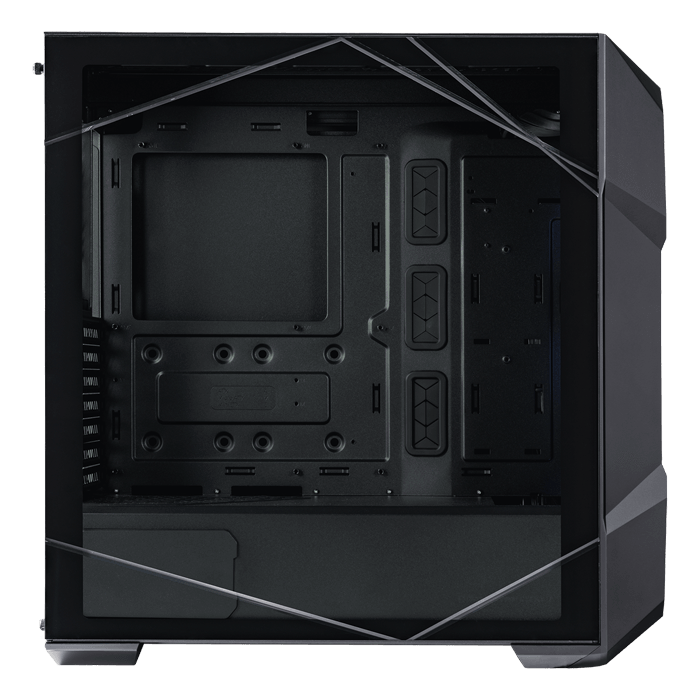

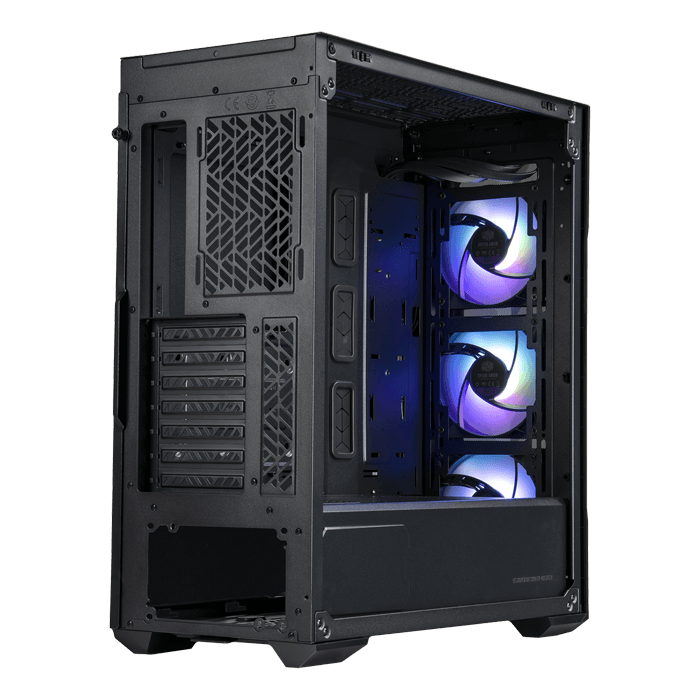

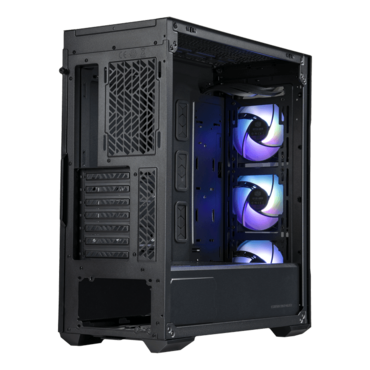

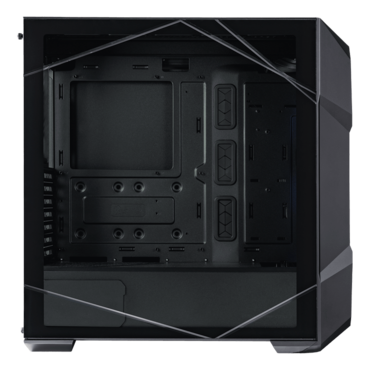

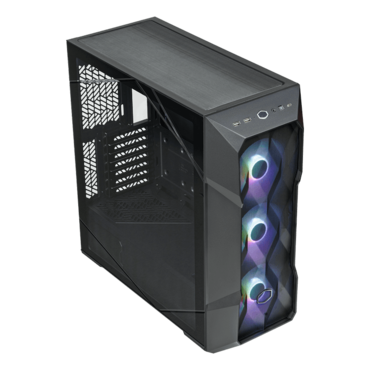

MasterBox TD500 Mesh V2, Tempered Glass, No PSU, E-ATX, Black, Mid Tower Case
MasterBox TD500 Mesh V2’s iconic polygonal design keeps your system looking unique and your gaming sessions streamlined.

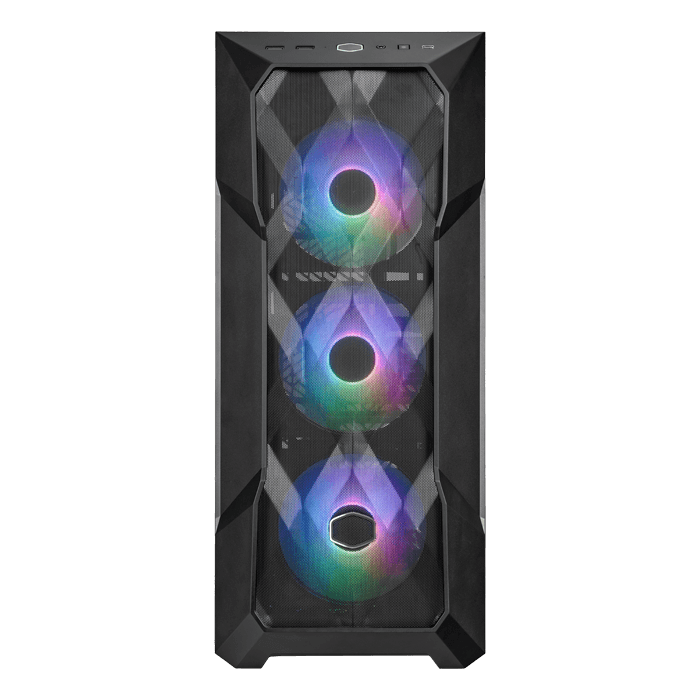

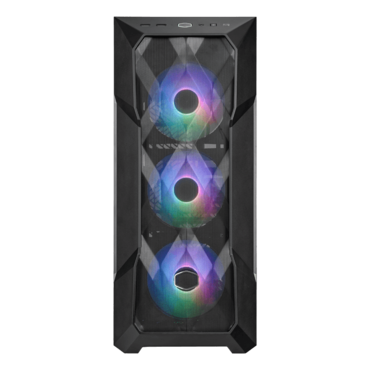

- Polygonal FineMesh Front Panel
- Three CF120 ARGB Fans Included
- USB 3.2 Gen 2 Type C Support
- Tool-Free Crystalline TG Side Panel
- PSU Shroud With Removable Cover
- ARGB Controller Included
- Removable Top Panel
- Removable HDD cage
Model Number | TD500V2-KGNN-S00, TD500V2-WGNN-S00 |
Exterior Color | Black, White |
Materials - Exterior | Steel, Mesh, Plastic |
Materials - Left Side Panel | Tempered Glass |
Dimensions (L x W x H) | 499 x 210 x 500mm (incl. Protrusions), 430 x 210 x 477mm (excl. Protrusions) |

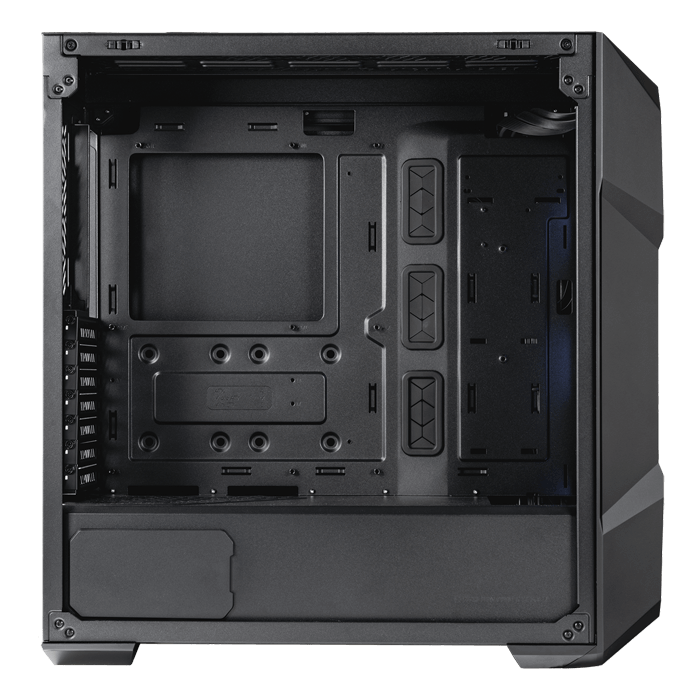

Motherboard Support | Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX*, (*up to 12" x 10.7" motherboards, may impact cable management feature) |

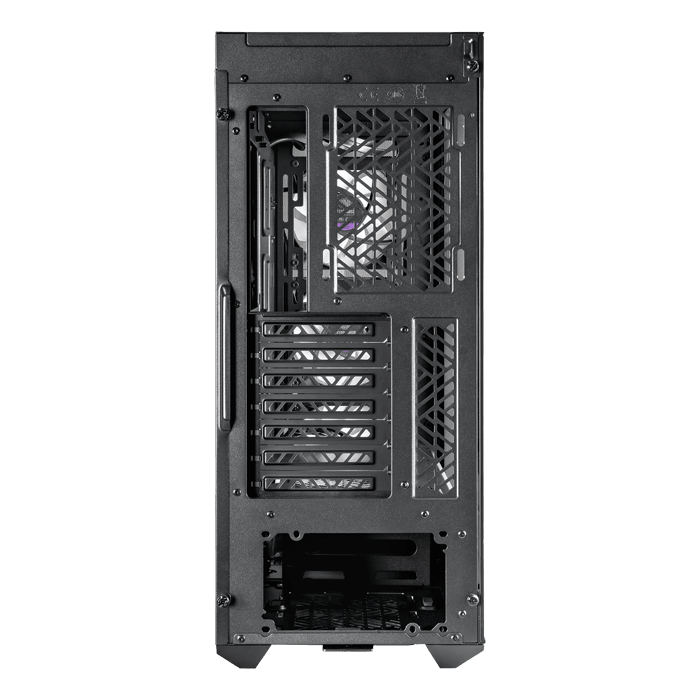

Expansion Slots | 7 |
3.5" Drive Bays | 2 |
2.5" Drive Bays | 3 |

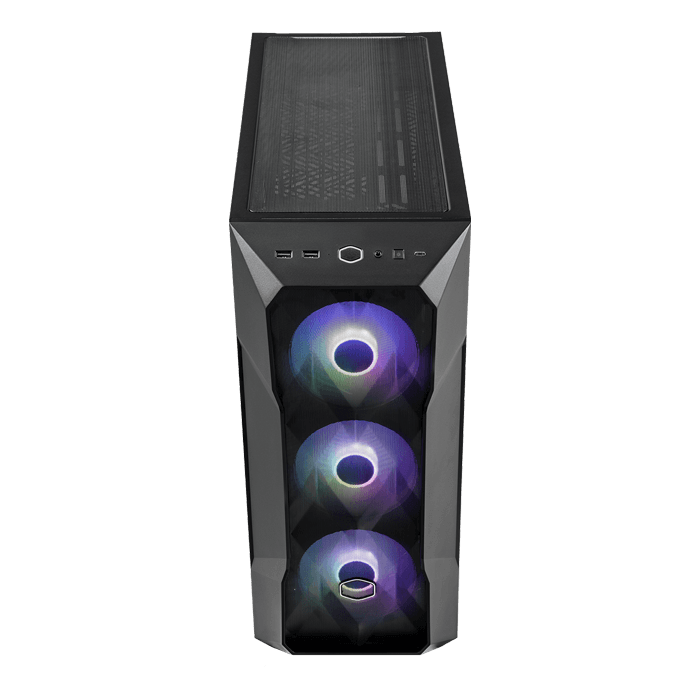

I/O Panel - USB Ports | 2x USB 3.2 Gen 1, 1x USB 3.2 Gen 2 Type C |
I/O Panel - Audio In / Out | 1x Audio Jack |
I/O Panel - Other | 1x ARGB Fan Hub |
Pre-installed Fans - Front | 3x 120mm CF120 ARGB |
Pre-installed Fans - Rear | N/A |
Fan Support - Top | 3x 120mm, 2x 140mm |
Fan Support - Front | 3x 120mm, 2x 140mm |
Fan Support - Rear | 1x 120mm |
Radiator Support - Top | 120mm, 140mm, 240mm, 280mm, 360mm, (recommended maximum thickness -55mm) |
Radiator Support - Front | 120mm, 140mm, 240mm, 280mm, 360mm |
Radiator Support - Rear | 120mm |
Clearance - CPU Cooler | 165mm/6.49" |
Clearance - PSU | 200mm, (Recommended up to 170mm) |
Clearance - GFX | 410mm / 16.14" |

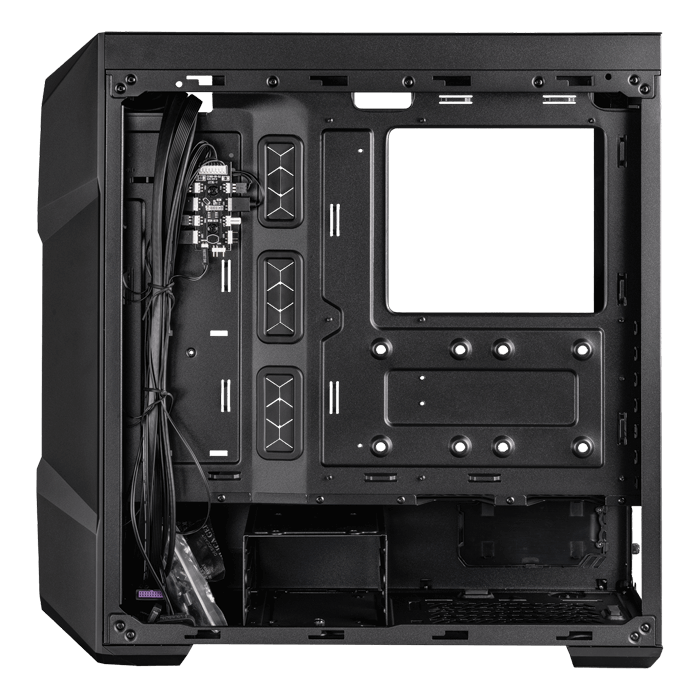

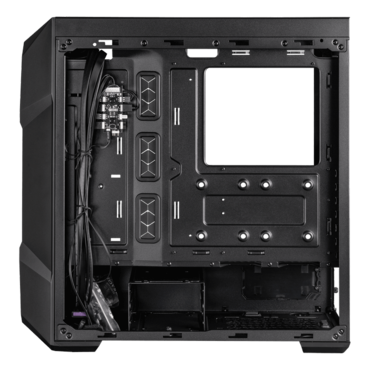

Cable Routing - Behind Motherboard Tray | 19mm / 0.74" |
Dust Filters | Front, Top, Bottom |
Power Supply Support | Bottom Mount, ATX |
Warranty | 2 years |
Series | MasterBox Series |
Size | Mid Tower |
