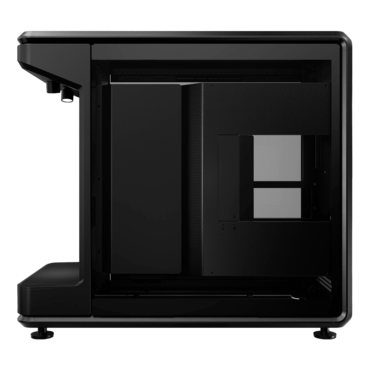

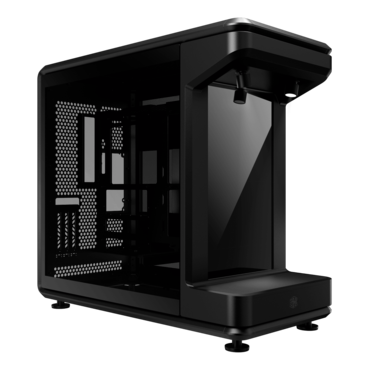

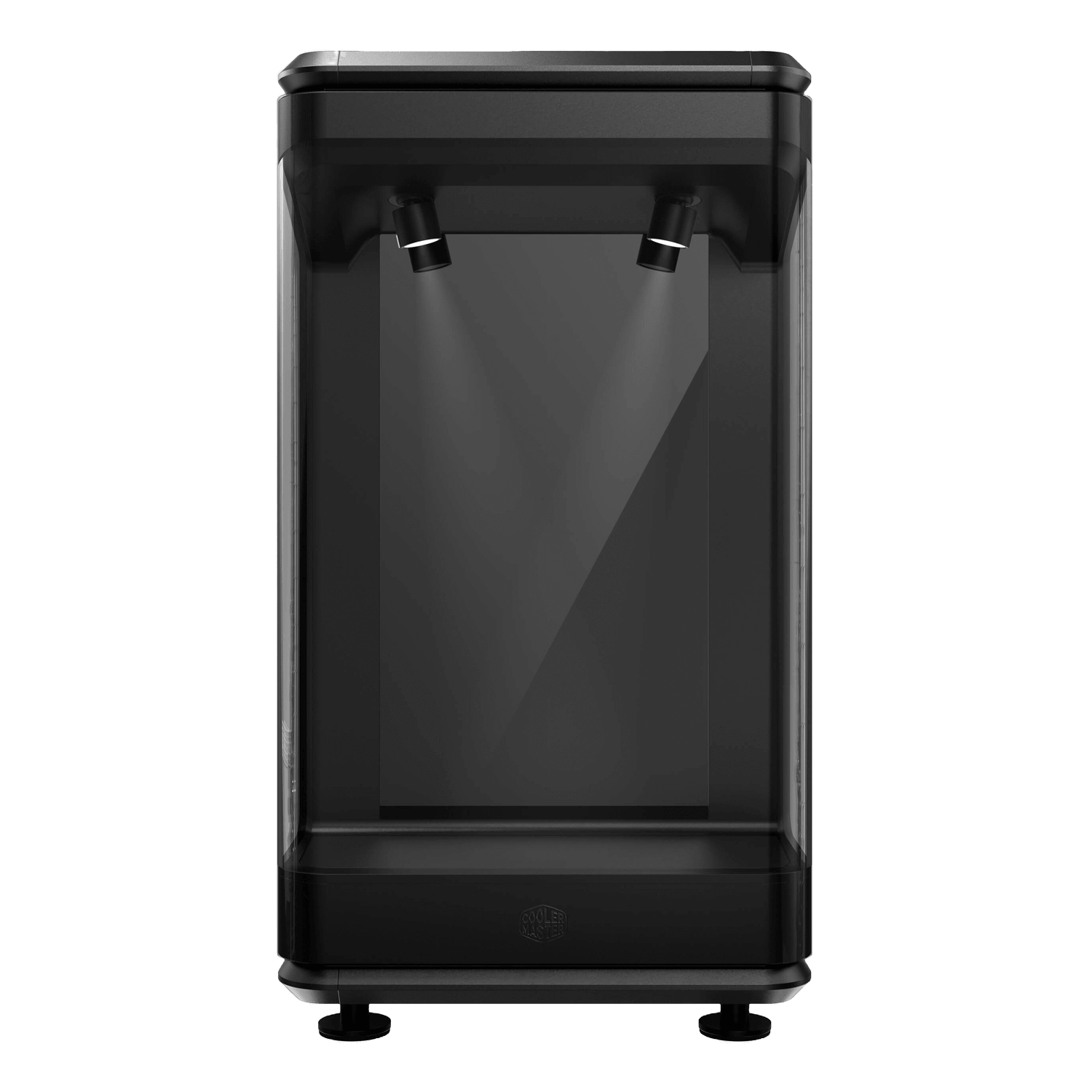

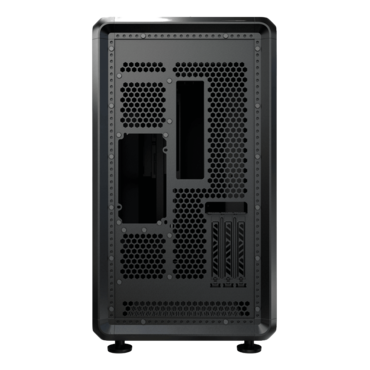

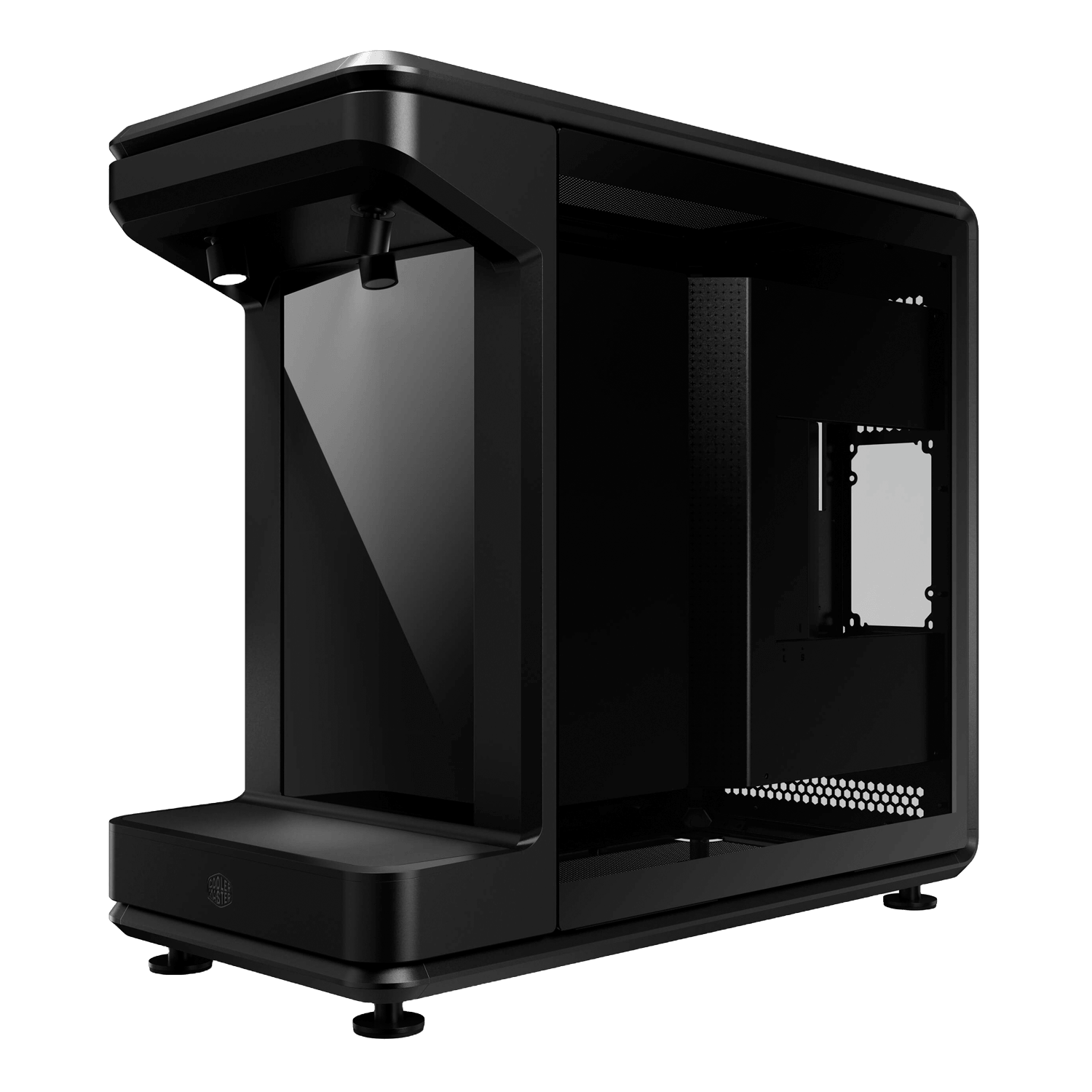

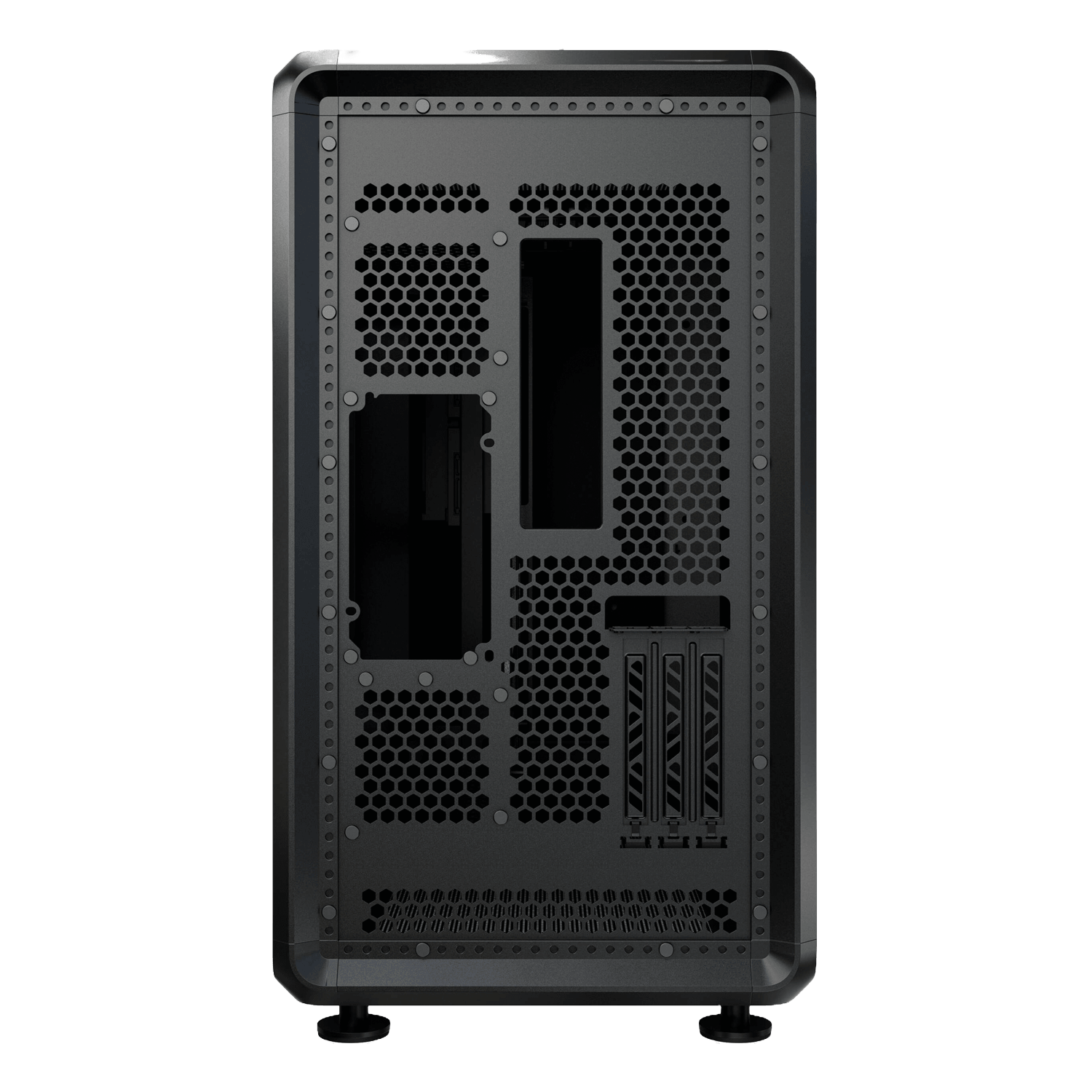

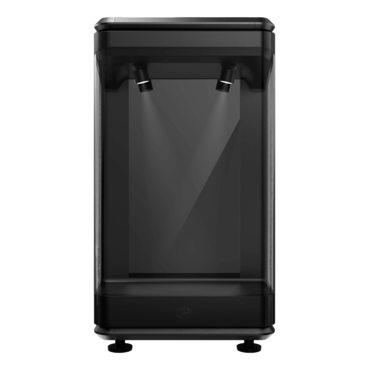

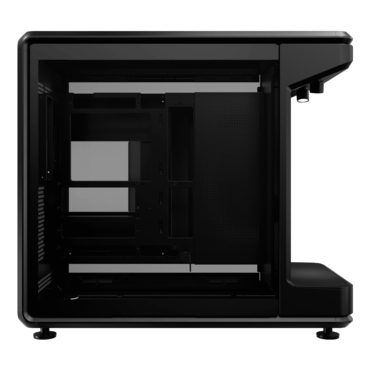

| Product Name |
MASTERFRAME 360 STAGE LCD |
| Series |
MASTERFRAME Series |
| Color |
Black |
| Model Number |
MF360-KHNN-S02 |
| Materials - Exterior |
SGCC |
| Materials - Side Panel (Left / Right) |
TG / TG |
| Dimension (L x W x H) - Incl. Protrusions |
549 x 291 x 581 mm |
| Dimension (L x W x H) - Excl. Protrusions |
511 x 291 x 581 mm |
| Dimension (L x W x H) - Volume (w/o panel, protrusions and feet) |
86 L |
| Dimension (L x W x H) - Volume (with panel, protrusions and feet) |
93 L |
| Hardware support - Motherboard Support |
Mini-ITX, Micro-ATX, ATX, BTF (ATX) |
| Hardware support - Power Supply Support |
ATX |
| Hardware support - PCI Expansion Slots |
3.5 |
| Drive Bay Support - 3.5" Drive Bays |
0 |
| Drive Bay Support - 3.5" / 2.5" Drive Bay (or SSD) |
HDD (44.45 mm) *1 or SSD *2 |
| Preinstalled Drive Bay - 3.5" / 2.5" Drive Bay (or SSD) |
HDD (44.45 mm) *1 or SSD *2 |
| I/O Panel - USB Ports |
2x USB 3.2 Gen 1 Type-A 5G; 1x USB 4.0 Gen 2x2 Type-C 20G |
| I/O Panel - Audio In / Out |
1x 3.5 mm Headset Jack (Audio + Mic) |
| Fans Support - Top |
6x 120 mm, 2x 140 mm, 2x 180 mm, 2x 200 mm |
| Fans Support - Bottom |
6x 120 mm, 2x 140 mm, 2x 180 mm, 2x 200 mm |
| Radiator Support - Top |
120 / 140 / 240 / 280 / 360 mm (maximum thickness clearance 75 mm) |
| Radiator Support - Bottom |
120 / 140 / 240 / 280 / 360 mm (maximum thickness clearance 75 mm) |
| Dust Filters - Removable Filters |
Mesh Only |
| Other Electronic Components |
PCIe 5.0 Riser / ARGB spotlight *2 / 15.6-inch Screen 1920×1080p FHD (16G Built-in), Win11
supported
|
| Maximum Dimensions for Front Collectibles Display (H x W x D) |
328 x 290 x 110 mm |
| DIY Tank & Pump Support |
Yes (Left side) |
| Toolbox |
Yes |
| Clearances - CPU Cooler |
145 mm |
| Clearances - Power Supply |
210 mm |
| Clearances - Graphics Card |
430 mm |
| Cable Routing - Behind MB Tray |
110 mm |
| Warranty |
2 Years |
