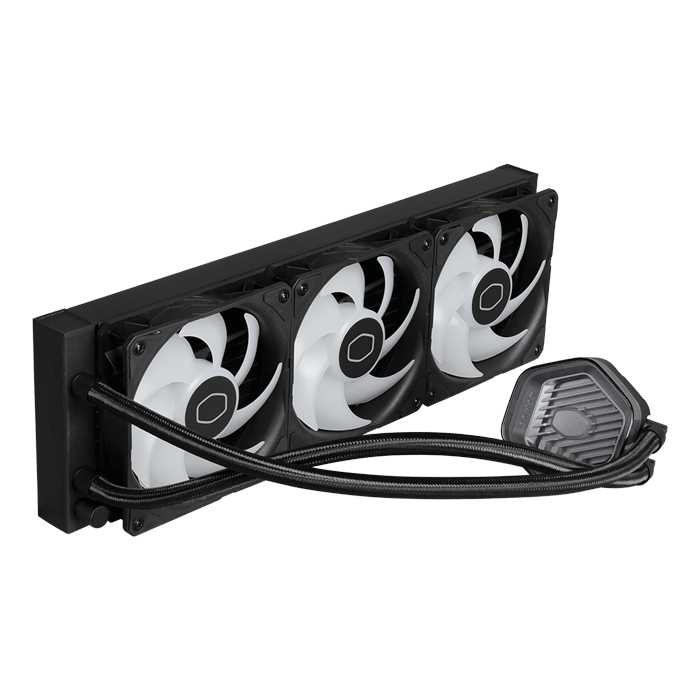

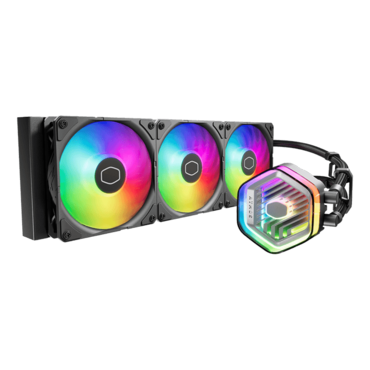

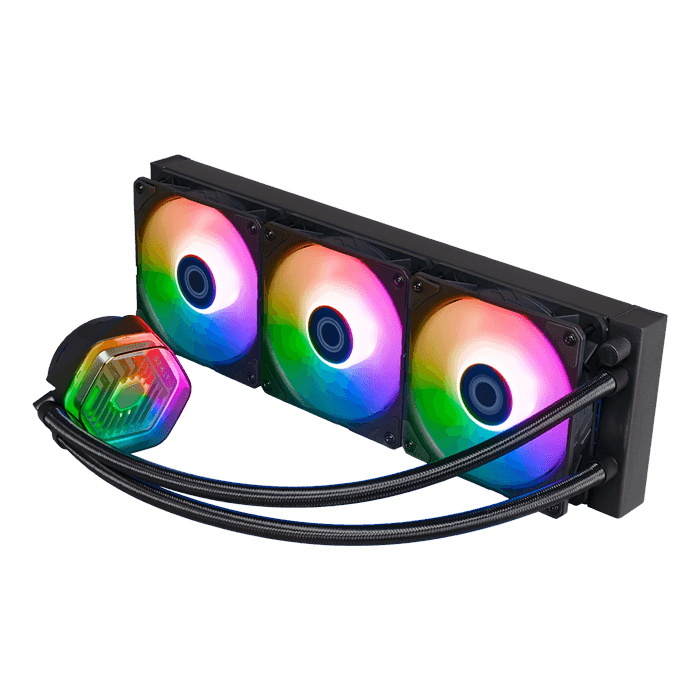

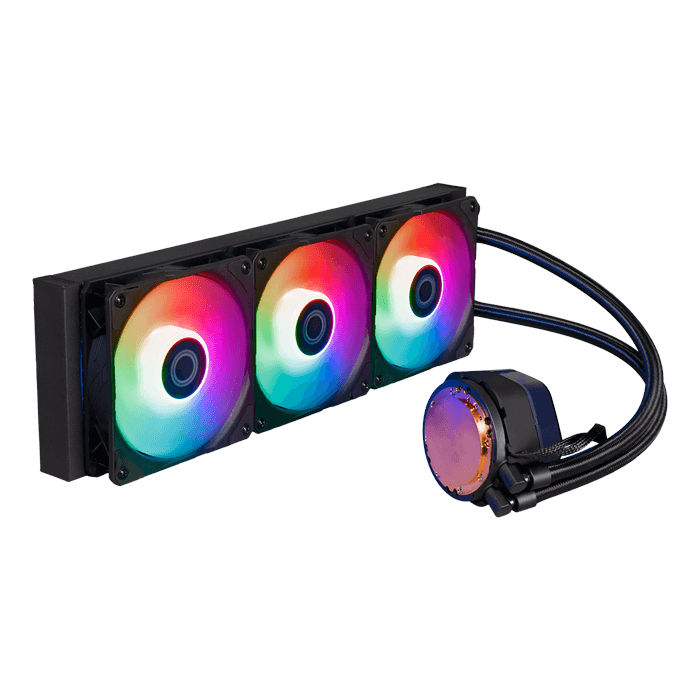

MasterLiquid 360 Atmos, 360mm Radiator, Liquid Cooling System

  • SKU: 17085617
  • Manufacturer: COOLER MASTER
  • MPN: MLX-D36M-A25PZ-R1
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
MasterLiquid 360 Atmos, 360mm Radiator, Liquid Cooling System


The next generation AIO liquid cooling is here with the MasterLiquid 360 Atmos. The Atmos is our forward-thinking, innovative take on what an AIO cooler can and should be. Exceptionally silent performance provided by our SickleFlow Edge fans. An optimized user experience from unboxing to the MasterCTRL software. A pump top cover fully customizable with your own 3D-printed creations. Eco-friendly construction implemented throughout. Our signature dual chamber pump design, refined. The Atmos represents the best of the best in modern AIO liquid cooling, a full 360 degrees of cool.

  • Exceptional silence
  • Optimized user experience
  • Fully customizable
  • Eco-friendly construction
  • Refined dual chamber design
Product Number MLX-D36M-A25PZ-R1
Exterior Color Black
CPU Socket LGA1700, LGA1200, LGA1151, LGA1150, LGA1155, LGA1156, AM5, AM4
Radiator Material Aluminum
Radiator Dimensions 394 × 119 × 27.2 mm / 15.5 × 4.7 × 1.1 inch
Pump Dimensions 84.9 x 81 x 53.15 mm / 3.3 x 3.2 x 2.1 inch
Pump MTTF >210,000 Hours
Pump Noise Level 12 dBA (Max)
Pump Connector 4-Pin
Pump Rated Voltage 12 VDC
Pump Power Consumption 3.84W
Fan Dimensions (L x W x H) 120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch
Fan Quantity 3 PCS
Fan Speed 690-2500 RPM ± 10%
Fan Airflow 70.7 CFM (Max)
Fan Noise Level 27.2 dBA (Max)
Fan Pressure 3.61 mmH?O (Max)
Fan Bearing Type Loop Dynamic Bearing
Fan MTTF >160,000 Hours
Fan Power Connector 4-Pin (PWM)
Fan Rated Voltage 12 VDC
Fan Rated Current 0.2A
Fan Safety Current 0.3A
RAM Clearance N/A
Warranty 5 years
Series MasterLiquid
Cooler Type Liquid Cooler
Radiator Size 360
