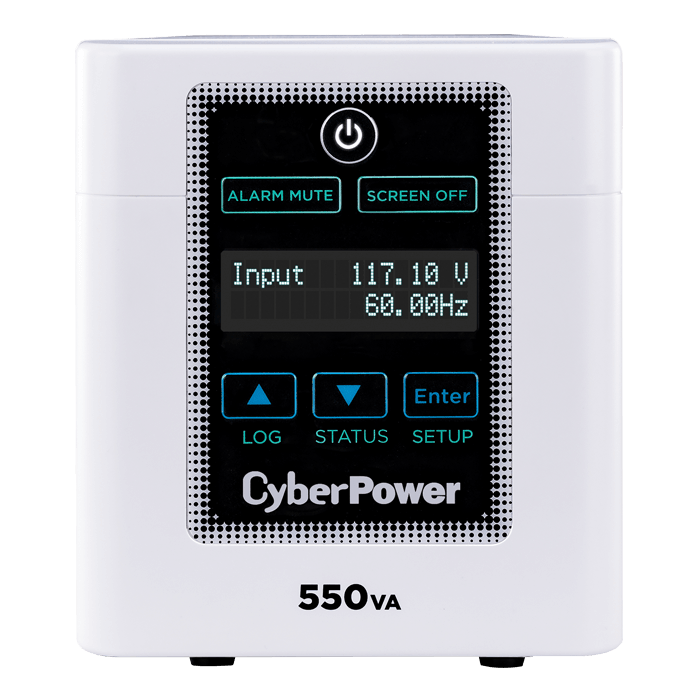

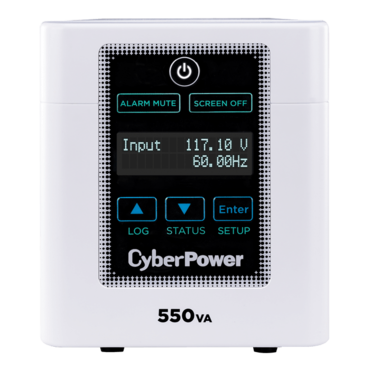

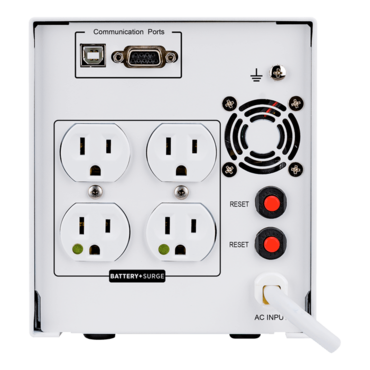

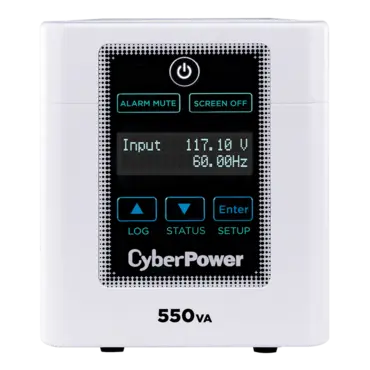

Medical Grade M550L, LCD, 550 VA/440 W, Simulated Sine Wave, Tower UPS
Quantity:
- SKU: 11754468
- Manufacturer: CYBERPOWER SYSTEMS
- MPN: M550L
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$439.95
| General | |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| UPS Topology | Line Interactive |
| Battery | |
| Battery Quantity | 2 |
| Battery Size | 12 V / 7 Ah |
| Battery Type | Sealed Lead-Acid Battery |
| Hot Swappable | Yes |
| Replacement Battery Cartridge | RB1270X2E |
| Runtime at Full Load | 8 min |
| Runtime at Half Load | 25 min |
| Typical Recharge Time | 8 Hours (0% to 90% charged) |
| User Replaceable Battery | Yes |
| Input | |
| Adjustable Voltage Range | 88 – 150 VAC |
| Circuit Breaker | 6 A |
| Cord Length | 6 ft (1.8 m) |
| Input Frequency Range | 57 Hz – 63 Hz |
| Input Plug Type | NEMA 5-15P-HG |
| Input Voltage Range | 90 VAC – 146 VAC |
| Nominal Input Voltage | 120 VAC |
| Output | |
| Automatic Voltage Regulation |
Single Boost Single Buck |
| On AC WaveForm | Sine Wave |
| On Battery Frequency | 60 Hz ± 1% |
| On Battery Voltage | 120 VAC ± 5% |
| On Battery Waveform | Simulated Sine Wave |
| Outlet Type | 4 – 5-15R-HG |
| Outlets – Battery & Surge Protected | 4 |
| Outlets – Total | 4 |
| Output Power Factor | 0.8 |
| Overload Protection |
Internal Circuitry Limiting Circuit Breaker Protected |
| Typical Transfer Time | < 10 ms |
| USB Charge Port | No |
| VA | 550 VA |
| Watts | 440 W |
| Surge Protection & Filtering | |
| EMI/RFI Filtration | Yes |
| Surge Suppression (Joules) | 1445 J |
| Management & Communications | |
| Audible Alarms |
Battery Mode Low Battery Overload Fault |
| HID Compliant USB Port | Yes |
| LCD | Multifunction LCD |
| LED Indicators | Power On |
| Management Cable | USB Cable |
| Serial Port | 1 Serial |
| Software (Free Download) | PowerPanel® Business |
| Physical | |
| Color | White |
| Form Factor | Mini-Tower |
| Material of Construction | Plastic |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 13.72 x 16.26 x 34.8 (cm) |
| Physical Dimensions – (WxHxD) (in) | 5.4 x 6.4 x 13.7 (in) |
| Physical Dimensions – (WxHxD) (mm) | 137 x 163 x 348 (mm) |
| Physical Weight (kg) | 13.65 |
| Physical Weight (lb) | 30.1 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 14.88 |
| Shipping – Weight (lb) | 32.8 |
| Shipping Dimensions – (WxHxD) (cm) | 26.29 x 28.5 x 47.8 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 10.35 x 11.22 x 18.82 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 262.89 x 284.99 x 478.03 (mm) |
| Environmental | |
| Operating Elevation | 0 – 10000 ft (0 – 3048 m) |
| Operating Relative Humidity | 0 – 95 % (non-condensing) |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Storage Temperature | 5 – 113 °F (-15 – 45 °C) |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety | UL1778 |
| Isolation | |
| Leakage Current (Max Shock Potential) | <100 µA |
| Output Isolation Transformer | Hospital Grade Load Isolation Transformer |
| Warranty | |
| CEG Amount | $400000 |
| Connected Equipment Guarantee | Lifetime |
| Extended Warranty Option | WEXT5YR-U2A |
| Product Warranty | 3 Year Limited Warranty |
