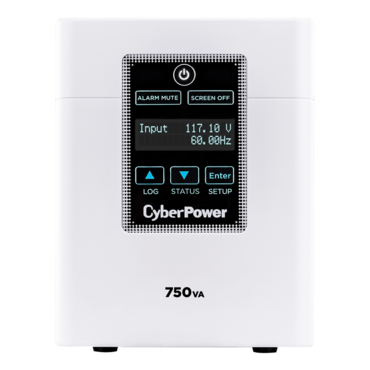

Medical Grade M750L, LCD, 750 VA/600 W, Simulated Sine Wave, Tower UPS
- SKU: 11754464
- Manufacturer: CYBERPOWER SYSTEMS
- MPN: M750L
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$660.95
| General | |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| UPS Topology | Line Interactive |
| Battery | |
| Battery Quantity | 3 |
| Battery Size | 12 V / 7 Ah |
| Battery Type | Sealed Lead-Acid Battery |
| Hot Swappable | Yes |
| Replacement Battery Cartridge | RB1270X3A |
| Runtime at Full Load | 12 min |
| Runtime at Half Load | 30 min |
| Typical Recharge Time | 8 Hours (0% to 90% charged) |
| User Replaceable Battery | Yes |
| Input | |
| Adjustable Voltage Range | 88 – 150 VAC |
| Circuit Breaker | 8 A |
| Cord Length | 6 ft (1.8 m) |
| Input Frequency Range | 57 Hz – 63 Hz |
| Input Plug Type | NEMA 5-15P-HG |
| Input Voltage Range | 90 VAC – 150 VAC |
| Nominal Input Voltage | 120 VAC |
| Output | |
| Automatic Voltage Regulation |
Single Boost Single Buck |
| On AC WaveForm | Sine Wave |
| On Battery Frequency | 60 Hz ± 1% |
| On Battery Voltage | 120 VAC ± 5% |
| On Battery Waveform | Simulated Sine Wave |

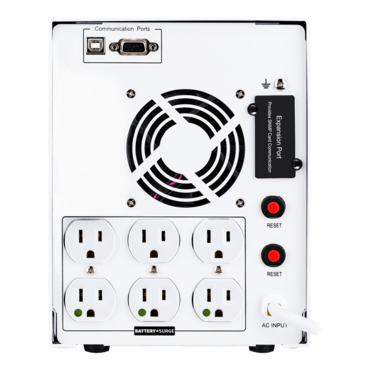

| Outlet Type | 6 – 5-15R-HG |
| Outlets – Battery & Surge Protected | 6 |
| Outlets – Total | 6 |
| Output Power Factor | 0.8 |
| Overload Protection |
Internal Circuitry Limiting Circuit Breaker Protected |
| Typical Transfer Time | < 10 ms |
| USB Charge Port | No |
| VA | 750 VA |
| Watts | 600 W |
| Surge Protection & Filtering | |
| EMI/RFI Filtration | Yes |
| Surge Suppression (Joules) | 1445 J |
| Management & Communications | |
| Audible Alarms |
Battery Mode Low Battery Overload Fault |
| HID Compliant USB Port | Yes |
| LCD | Multifunction LCD |
| LED Indicators | Power On |
| Management Cable | USB Cable |
| Serial Port | 1 Serial |
| Software (Free Download) | PowerPanel® Business |
| Physical | |
| Color | White |
| Form Factor | Mini-Tower |
| Material of Construction | Plastic |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 17.02 x 22.1 x 43.18 (cm) |
| Physical Dimensions – (WxHxD) (in) | 6.7 x 8.7 x 17 (in) |
| Physical Dimensions – (WxHxD) (mm) | 170 x 221 x 432 (mm) |
| Physical Weight (kg) | 23.95 |
| Physical Weight (lb) | 52.8 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 10.34 |
| Shipping – Weight (lb) | 22.8 |
| Shipping Dimensions – (WxHxD) (cm) | 31.6 x 35.99 x 57.91 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 12.44 x 14.17 x 22.8 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 315.98 x 359.92 x 579.12 (mm) |
| Environmental | |
| Operating Elevation | 0 – 10000 ft (0 – 3048 m) |
| Operating Relative Humidity | 0 – 95 % (non-condensing) |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Storage Temperature | 5 – 113 °F (-15 – 45 °C) |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety | UL1778 |
| Isolation | |
| Leakage Current (Max Shock Potential) | <100 µA |
| Output Isolation Transformer | Hospital Grade Load Isolation Transformer |
| Warranty | |
| CEG Amount | $400000 |
| Connected Equipment Guarantee | Lifetime |
| Extended Warranty Option | WEXT5YR-U4A |
| Product Warranty | 3 Year Limited Warranty |
