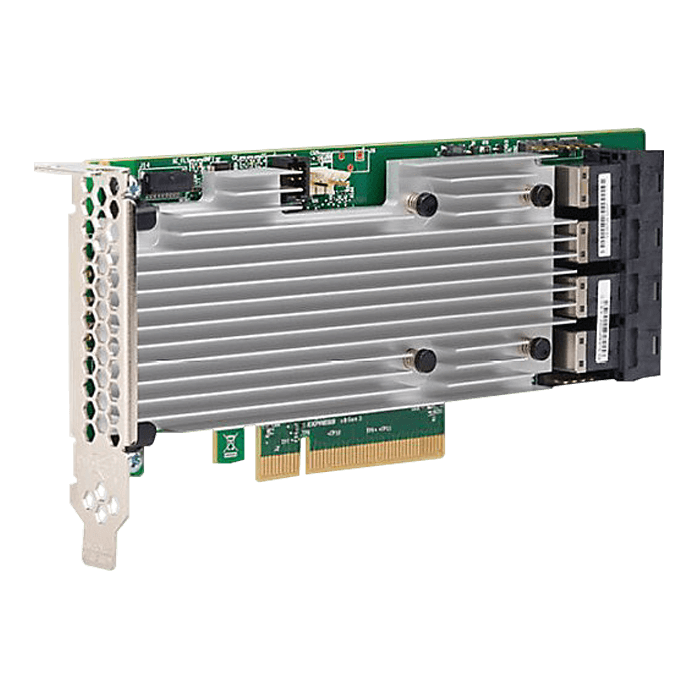

MegaRAID 9361-16i, SAS 12Gb/s, 16-Port, PCIe 3.0 x8, Controller with 2GB Cache
Quantity:
- SKU: 11073138
- Manufacturer: Broadcom
- MPN: 05-25708-00
- Availability: CONTACT US
Starting At
$961.42
MegaRAID 9361-16i, SAS 12Gb/s, 16-Port, PCIe 3.0 x8, Controller with 2GB Cache
Data center, cloud and high-performance computing environments not only require large amounts of storage capacity, they also must provide the data protection and performance today’s applications and end users demand. The MegaRAID SAS 9361-16i 12Gb/s RAID controller card addresses these needs by delivering proven performance and RAID data protection for a range of server storage applications.
- Connect up to 16 SATA or SAS drives via direct connection inside the box or up to 240 drives leveraging SAS expander technology
- Fit into rack-mounted servers with low-profile form factor and side-mounted SAS connectors
- Support critical, high-bandwidth applications with PCIe® 3.0 connectivity
- Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60
- Add more protection and peace of mind with optional CacheVault® flash cache protection.
| Product | Manufacturer Part # | What's in the Box |
| MegaRAID SAS 9361-16i | 05-25708-00 | MegaRAID SAS 9361-16i, QIG, LP bracket |
| RAID-on-Chip Controller | SAS3316 dual core RAID on Chip (ROC) |
| What's in the box | MegaRAID SAS 9361-16i, QIG, LP bracket |
| Generation | 12 Gb/s |
| RAID Management Software | LSA (LSI Storage Authority), MegaRAID Storage Manager, StorCLI (command-line interface), CTRL-R (BIOS configuration utility), HII (UEFI Human Interface Infrastructure) |
| Cache Protection | Optional CacheVault Module (CVPM02) |
| Physical Dimensions | Low profile 6.127” x 2.712” |
| Host Bus Type | x8 lane PCI Express® 3.0 |
| Cache Memory | 2GB 1866MHz DDR3 SDRAM |
| Internal Ports | 16 |
| Data Transfer Rates | Up to 12Gb/s per port |
| Devices Supported | Up to 240 SATA and/or SAS devices |
| Internal Connectors | 4 Mini-SAS HD SFF8643 |
| MTBF | > 2,500,000 hours |
| Operating Temperature | Maximum ambient: Controller Card: 55°C, with optional CacheVault accessory (LSICVM02) 55°CMaximum ambient: Controller Card: 60°C (44.5°C with LSIiBBU07) |
| Operating Voltage (V) | +12V, +3.3V |
| OS | Extensive support includes Microsoft® Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and more. *Visit the downloads page for the most complete list of supported operating systems |
| Warranty | 3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba |
