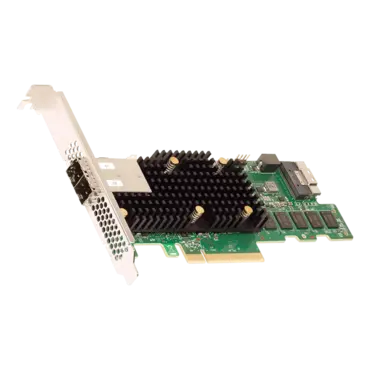

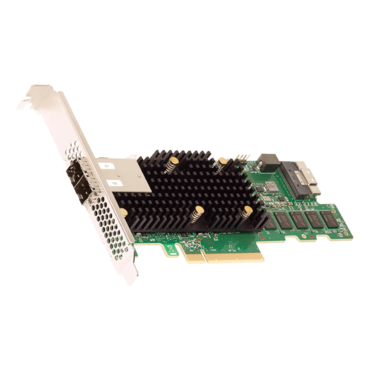

MegaRAID 9580-8i8e, Tri-mode SATA/SAS/PCIe (NVMe) 12Gb/s, 8-Port External (2x SFF-8644), 8-Port Internal (1x SFF-8654), PCIe 4.0 x8, Controller with 8GB Cache
- SKU: 14946818
- Manufacturer: Broadcom
- MPN: 05-50076-00
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$973.27
| Lifecycle | Active |
| Distributor Inventory | No |
| Cache Memory | 8GB |
| Cache Protection | CacheVault CVPM05 |
| Data Transfer Rates | 12Gb/s SAS and 16GT/s PCIe Gen4 (NVMe) compliant |
| Devices Supported | SAS/SATA: 240, NVMe: 24 |
| External Connectors | 2 x4 SFF-8644 |
| External Ports | 8 |
| Generation | 12 Gb/s |
| Host Bus Type | x8 lane PCI Express 4.0 |
| I/O Processor / SAS Controller | SAS3916 12Gb/s SAS Tri-Mode RAID-on-Chip (ROC) |
| Internal Connectors | 1 x8 SFF-8654 (SlimSAS) |
| Internal Ports | 8 |
| Management Software | LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure) |
| MTBF | >3,000,000 hours at 40° C |
| Operating Temperature°C | 0°C to 55°C |
| OS | Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD |
| Physical Dimensions | 6.600" x 2.712" |
| Regulatory Certifications | Australia/New Zealand (AS/NZS CISPR 22), Canada (ICES -003, Class B), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS compliant, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE |
| Warranty | 3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba |
