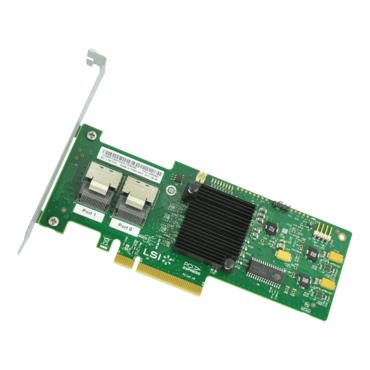

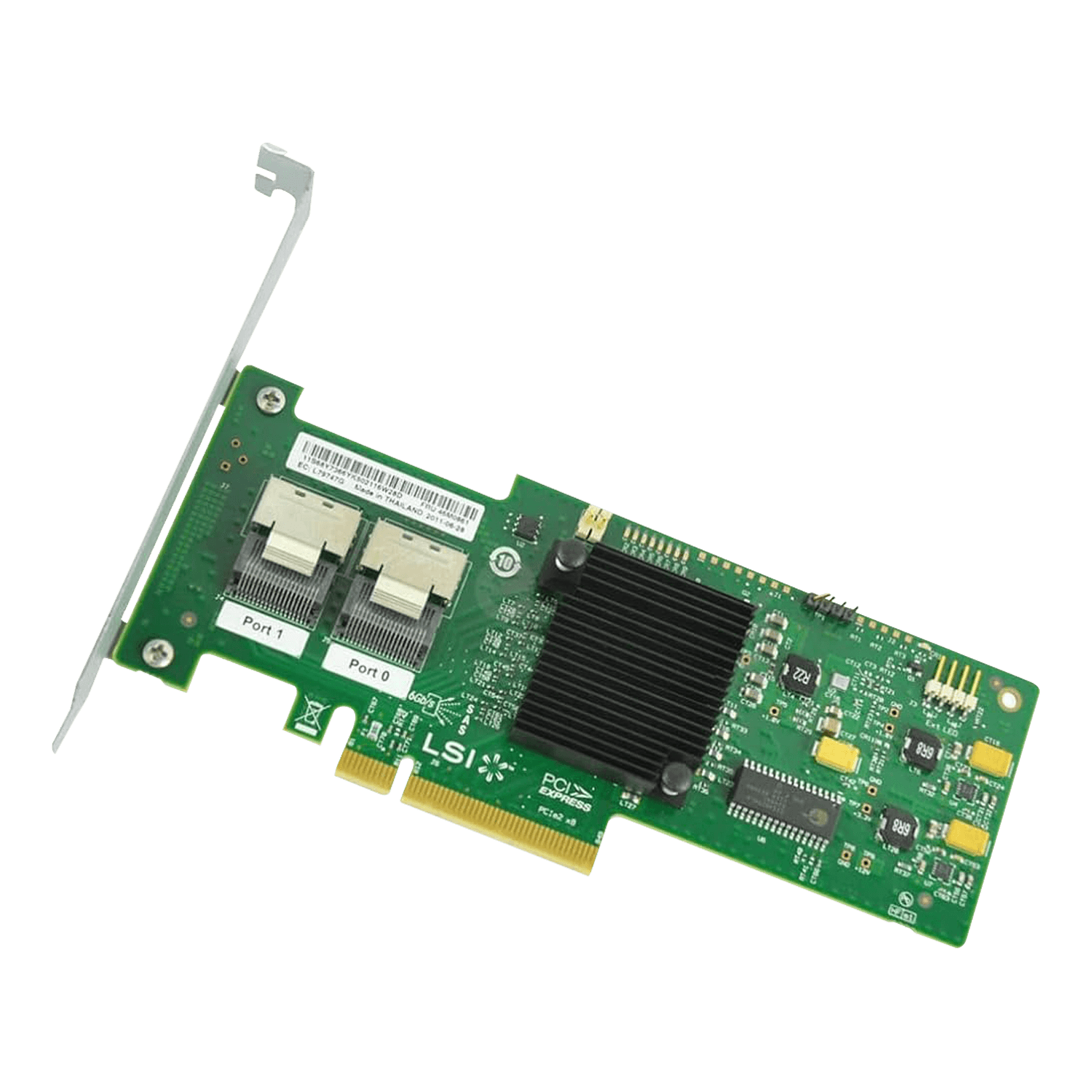

MegaRAID SAS 9240-8i, SAS 6Gb/s, 8-Port, PCIe 2.0 x8, Controller

SKU: 3569757

Manufacturer: Broadcom

MPN: LSI00200

Availability: Low Stock


Price: $184.79
or as low as $6/month
Quantity:

Email, file, SharePoint, and similar critical apps need to scale easily over time while remaining both highly protected and easily manageable. The MegaRAID® SAS 9240-8i 6Gb/s SAS and SATA RAID controller card is designed for small and medium businesses (SMBs) with tower and rack-mounted servers needing to balance budgets with future growth needs.

  • Connect up to 64 SATA or SAS drives in non-RAID mode or 16 drives in RAID mode with eight internal 6Gb/s SATA and SAS ports
  • Bandwidth to support applications with PCIe® 2.0 connectivity
  • Fit into 1U/2U rack-mounted servers and compact servers with low-profile form factor
  • Balance protection and performance for critical applications with RAID levels 0, 1, 5, 10 and 50
Lifecycle Active
Distrib. Inventory No
RAID-on-Chip Controller LSISAS2008
RAID Management Software MegaRAID Management Suite™, MegaRAID Storage Manager™, MegaCLI (command-line interface), WebBIOS
Physical Dimensions Low profile (6.6" x 2.536")
Host Bus Type x8 lane PCI Express® 2.0
Internal Ports 8
Data Transfer Rates Up to 6Gb/s per port
Devices Supported Non-RAID (JBOD Mode): 64 RAID 0: 32 per volume RAID 1: 2 per volume plus hot spare RAID 5: 32 per volume RAID 10: 32 per volume RAID 50: 32 per volume
Internal Connectors 2 Mini-SAS SFF8087 (vertical orientation)
Operating Temperature 0°C to 70°C
Operating Voltage (V) +12V
Regulatory Certifications Australia/New Zealand (AS/NZS 3548), Canada (ICES-003), EMC: Class B-US (CFR 47, P15B), Europe (EN55022/EN55024), Japan (V-3/02.04), Safety: EN60950
