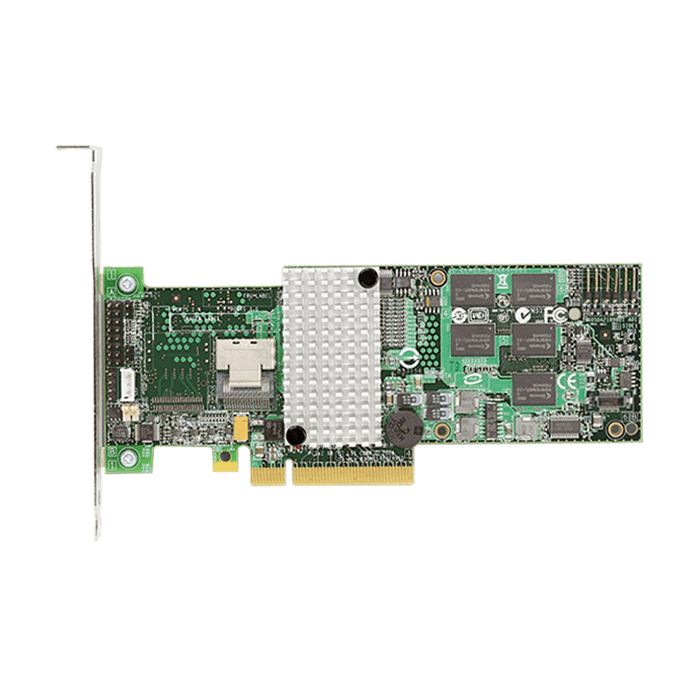

MegaRAID SAS 9260-4i, SAS 6Gb/s, 4-Port, PCIe 2.0 x8, Controller with 512MB Cache
Quantity:
- SKU: 2518385
- Manufacturer: Broadcom
- MPN: LSI00197
- Availability: LOW STOCK
Starting At
$409.38
MegaRAID SAS 9260-4i, SAS 6Gb/s, 4-Port, PCIe 2.0 x8, Controller with 512MB Cache
Video, imaging, archiving, and line-of-business apps need the peace of mind of RAID data protection. With the MegaRAID® SAS 9260-4i 6Gb/s SATA+SAS RAID controller card, smaller enterprises can cost-effectively realize the data protection benefits of hardware RAID.
- Connect up to 128 SATA or SAS drives with four internal 6Gb/s SAS ports
- Fit into rack-mounted servers with low-profile form factor
- Bandwidth to support applications with PCIe® 2.0 connectivity
- Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60
- Add more protection and peace of mind with options including heat-tolerant battery backupand advanced software
| Lifecycle | Active |
| Distrib. Inventory | No |
| RAID-on-Chip Controller | LSISAS2108 RAID-on-Chip (ROC) |
| RAID Management Software | MegaRAID Management Suite™, MegaRAID Storage Manager™, MegaCLI (command-line interface), WebBIOS |
| Cache Protection | LSIiBBU07 or LSIiBBU08, optional intelligent battery backup modules that directly or remotely connect to the adapter |
| Physical Dimensions | MD2 Low profile (6.6" x 2.536") |
| Host Bus Type | x8 lane PCI Express® 2.0 |
| Cache Memory | 512MB 800MHz DDR II SDRAM |
| Internal Ports | 4 |
| Data Transfer Rates | Up to 6Gb/s per port |
| Devices Supported | Up to 128 SAS and/or SATA devices |
| Internal Connectors | 1 Mini-SAS SFF8087 |
| MTBF | 1,093,393 hours |
| Operating Temperature | Maximum ambient: 60°C (44.5°C with optional LSIiBBU07 or LSIiBBU08) |
| Operating Voltage (V) | +3.3V |
| OS | Extensive support includes Microsoft® Windows® Vista/Server 2003/2000/XP, Linux® and more. *Visit the downloads page for the most complete list of supported operating systems |
| Regulatory Certifications | BSMI, C-tick, CSA C22.2, EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3, FCC Class A, Class B, RRL for MIC, UL, UL1950, VCCI |
| Warranty | 3 years, free technical support, advanced replacement option |
