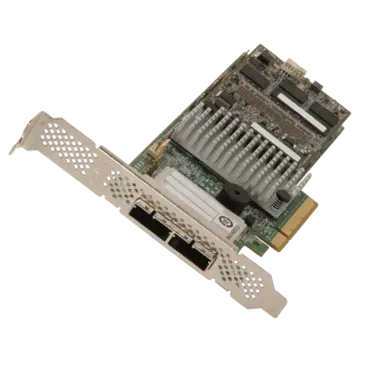

MegaRAID SAS 9286CV-8e, SAS 6Gb/s, 8-Port, PCIe 3.0 x8, Controller with 1GB Cache

  • SKU: 7155636
  • Manufacturer: Broadcom
  • MPN: L5-25421-21
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
MegaRAID SAS 9286CV-8e, SAS 6Gb/s, 8-Port, PCIe 3.0 x8, Controller with 1GB Cache
Large datacenters with thousands of servers face significant manageability challenges. The MegaRAID® SAS 9286CV-8e SAS and SATA RAID controller couples data protection with flash-based cache protection for lower total cost of ownership (TCO) and simpler manageability. CacheVault® flash cache technology stores write data in onboard NAND flash instead of using battery backup units for a greener, lower TCO approach to protecting highly scalable external storage.
  • Connect up to 240 SATA or SAS drives with eight external 6 Gb/s SATA and SAS ports
  • Fit into compact and rack-mounted servers with low-profile form factor
  • Bandwidth to support critical applications and solid state drive (SSD) arrays with PCIe® 3.0 connectivity
  • Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60
  • rotect critical data and lower TCO with CacheVault® write-back flash cache protection
Main Specifications
Product Type SAS RAID Controller
Data Transfer Rate 6Gb/s SAS
Internal Ports 0 Ports
External Ports 8 Ports
Host Interface PCI Express 3.0 x8
I/O Processor LSI SAS2208 (ROC)
Detailed Specifications
Product Series MegaRAID 9286
Cache Memory 1GB DDR3
Data Transfer Rate 6Gb/s
RAID Levels 0, 1, 5, 6, 10, 50, 60
Max Devices 240
Max Drives Per Group 32
Cache Protection Yes (Included MegaRAID CacheVault)
Internal Connectors None
External Connectors 2x mini-SAS SFF-8088
Included Parts None
Bracket Height Low Profile and Full Height
Dimensions (HxL) 2.536" x 6.6"
