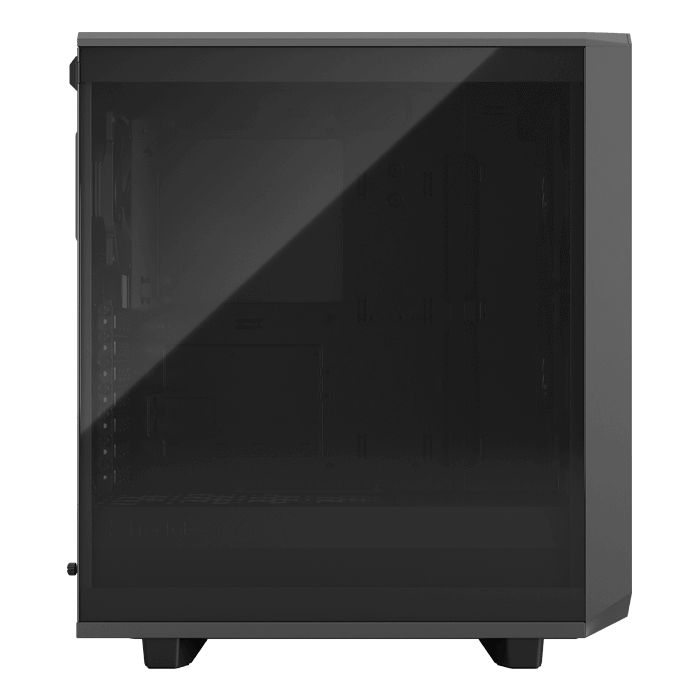

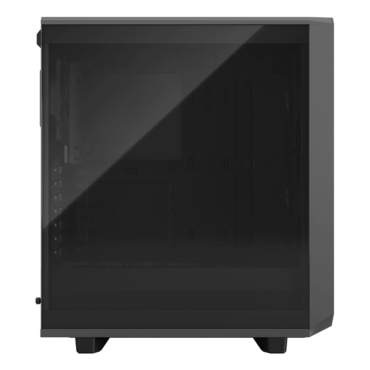

Meshify 2 Compact Light Tempered Glass, No PSU, ATX, Grey, Mid Tower Case

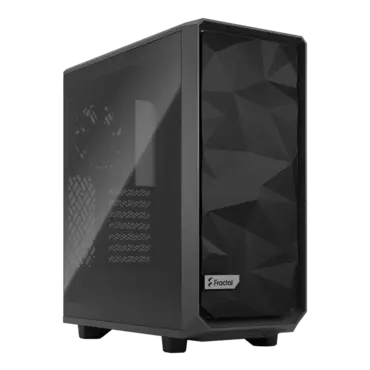

Fractal Design Meshify 2 Compact Light Tempered Glass Gray
A high-performing case with a bold, stealth-inspired aesthetic. Its striking exterior features bolt-free, flush tempered glass, a fully removable top panel granting excellent interior access, and a front USB 3.1 Type-C port.Maximum radiator width: 145 mm. Maximum motherboard component height for top mounted radiator: 40 mm (FD-C-MES2C-04).
- Fractal Design Meshify 2 Compact Light Tempered Glass Gray

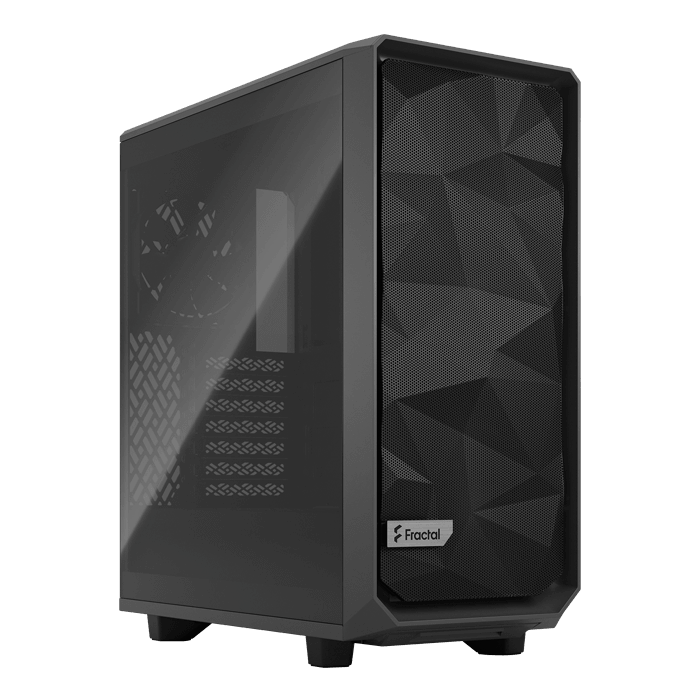

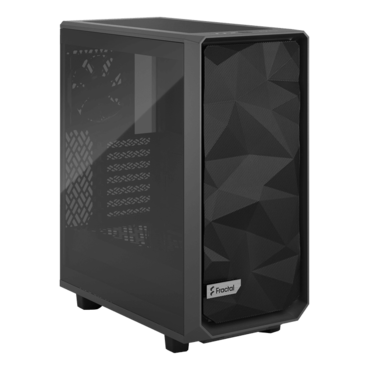

- Iconic angular mesh front provides filtered airflow with a bold, stealth-inspired aesthetic
- Room for GPUs up to 360 mm with a 240 mm radiator in the top, or up to 360/280 mm front radiators with GPUs under 305 mm
- Versatile and space-efficient ATX form-factor design offers the performance and capacity of much larger cases
- New front panel design with hinged removable mesh and tether-free bezel for easier access to front fan mounts
- Easy-to-clean filters on the front, top and base with full PSU coverage and convenient front access
- New front nylon filter that can be removed for increased airflow
- Install up to 7 fans, front radiators up to 360 mm, or top radiators up to 240 mm

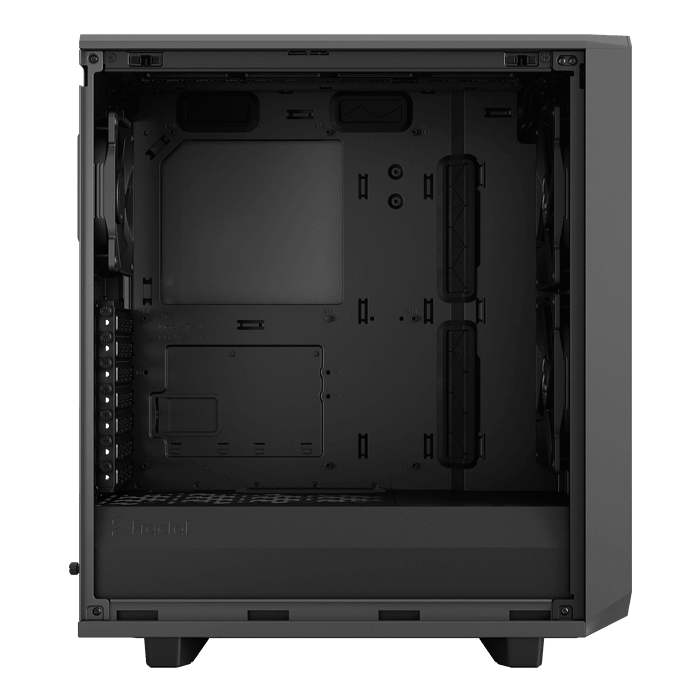

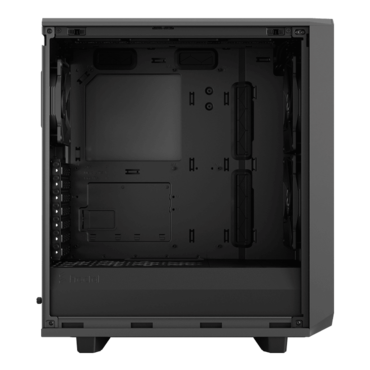

- Open interior layout creates a smooth airflow path from intake to exhaust
- Install up to 7x 120 mm or 4x 140 mm fans (1x 120 mm and 2x 140 mm Dynamic X2 fans included)

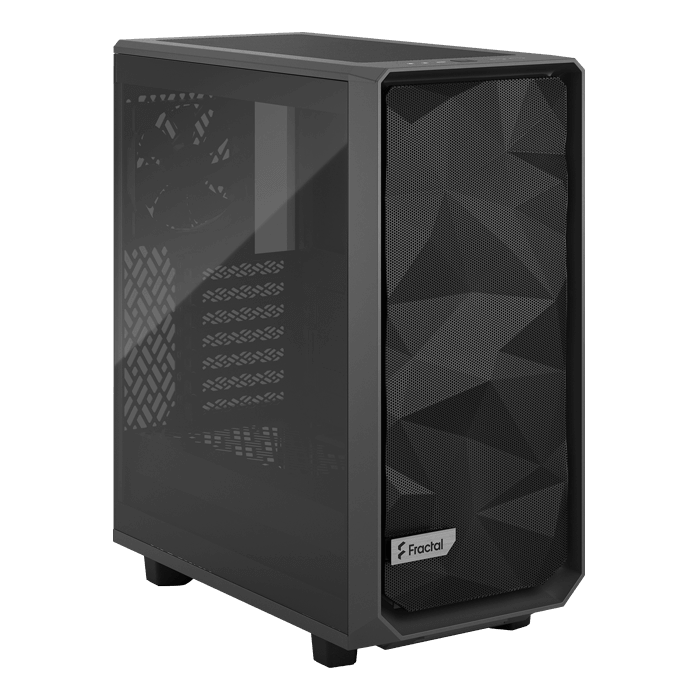

- Seamlessly integrated TG panel with steel frame support and bolt-free top-latching mechanism
- Flexible storage options supporting two 2.5”/3.5” drives and up to four SSDs (two SSD brackets included)

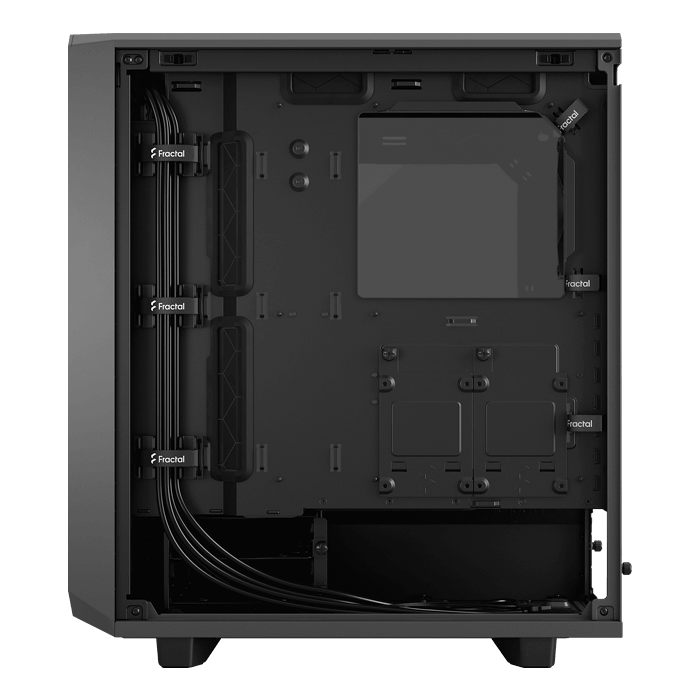

- Improved cable routing with three integrated cable alignment clips and six velcro straps

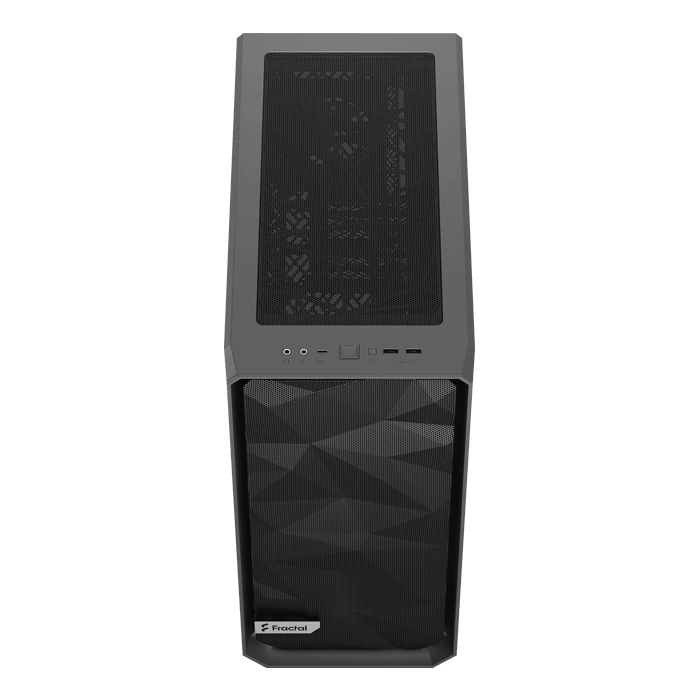

- The fully removable top panel opens to provide excellent interior access
- Clever layout enables the capacity of much larger cases
- FD-C-MES2C-04 | Model
Specifications | |
3.5"/2.5" Universal drive mounts | 2 (included) |
Dedicated 2.5" drive mounts | 4 (2 included) |

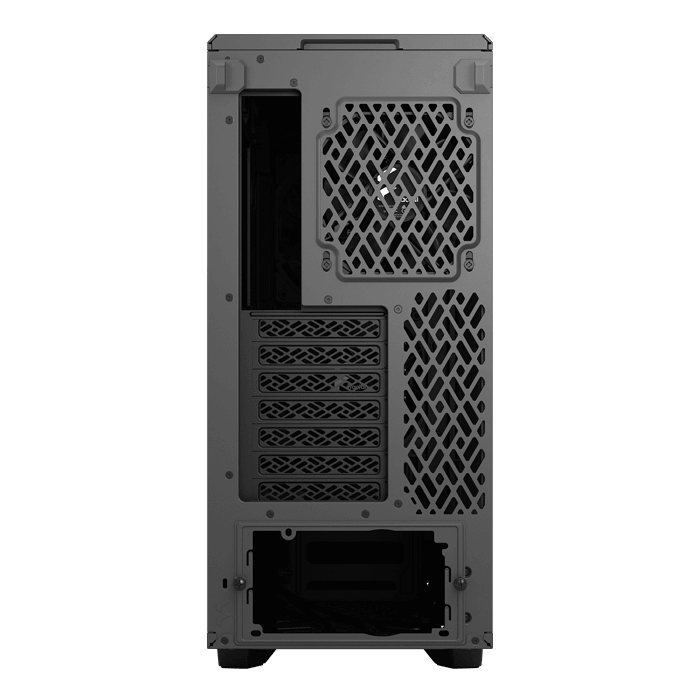

Expansion slots | 7 |
Front interface | 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, Reset button |
Total fan mounts | 7x 120 or 4x 140 mm and 2x 120 mm |
Front fan | 3x 120 or 2x 140 mm, (2x Dynamic X2 GP-14 included) |
Top fan | 2x 120/140 mm |
Rear fan | 1x 120 mm, (1x Dynamic X2 GP-12 included) |
Bottom fan | 1x 120 mm (requires removal of HDD cage) |
Dust filters | Top, front and bottom |
Fixed velcro straps | Yes |
Cable routing grommets | Yes |
Captive thumbscrews | HDD, SSD and PSU brackets |
Left side panel | Tempered Glass |

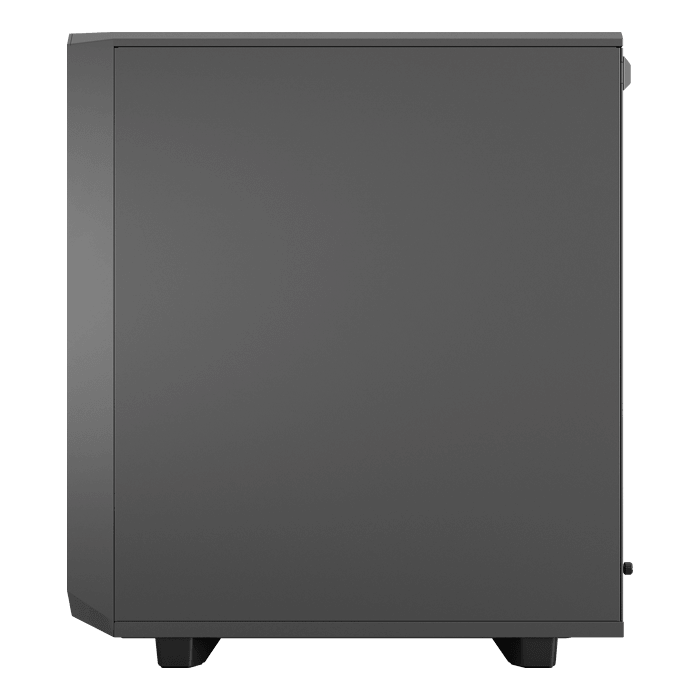

Right side panel | Steel |
Compatibility | |
Motherboard compatibility | ATX / mATX / Mini-ITX |
Power supply type | ATX |
PSU max length | 200 mm (165 mm with HDD cage and front fan) |
GPU max length | 341 mm (360 mm without front fan) |
CPU cooler max height | 169 mm |
Front radiator | Up to 360/280 mm |
Top radiator | Up to 240 mm |
Rear radiator | 120 mm |
Bottom radiator | 120 mm (requires removal of HDD cage) |
Cable routing space | 17-28 mm |
Radiator Support – Additional Details | Maximum radiator width: 145 mm. Maximum motherboard component height for top mounted radiator: 40 mm. For more details, consult the manual. |
Dimensions | |
Case dimensions (LxWxH) | 424 x 210 x 475 mm |
Case dimensions w/o feet/protrusions/screws | 412 x 210 x 455 mm |
Package dimensions (LxWxH) | 542 x 320 x 554 mm |
Net weight | 7.7 kg |
Gross weight | 9.3 kg |
Volume | 39.4 Liters |
Other | |
Package contents | Meshify 2 Compact Case, User manual, Accessory box |
EAN | Gray: 7340172702351 |
UPC | Gray: 843276102357 |
JAN | Gray: 4537694276832 |
ASIN | Gray: B0822XW85G |
Product code | Gray: FD-C-MES2C-04 |
