Meshify 2 Compact TG Light Tint, Tempered Glass, No PSU, ATX, Black, Mid Tower Case
- SKU: 13941032
- Manufacturer: Fractal Design
- MPN: FD-C-MES2C-03
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$148.37
Meshify 2 Compact TG Light Tint, Tempered Glass, No PSU, ATX, Black, Mid Tower Case
Fractal Design Meshify 2 Compact Light Tempered Glass Black
A high-performing case with a bold, stealth-inspired aesthetic. Its striking exterior features bolt-free, flush tempered glass, a fully removable top panel granting excellent interior access, and a front USB 3.1 Type-C port.Maximum radiator width: 145 mm. Maximum motherboard component height for top mounted radiator: 40 mm (FD-C-MES2C-03).
- Fractal Design Meshify 2 Compact Light Tempered Glass Black
- Iconic angular mesh front provides filtered airflow with a bold, stealth-inspired aesthetic
- Room for GPUs up to 360 mm with a 240 mm radiator in the top, or up to 360/280 mm front radiators with GPUs under 305 mm
- Versatile and space-efficient ATX form-factor design offers the performance and capacity of much larger cases
- New front panel design with hinged removable mesh and tether-free bezel for easier access to front fan mounts
- Easy-to-clean filters on the front, top and base with full PSU coverage and convenient front access
- New front nylon filter that can be removed for increased airflow
- Install up to 7 fans, front radiators up to 360 mm, or top radiators up to 240 mm

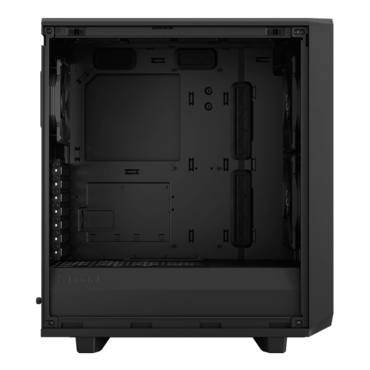

- Open interior layout creates a smooth airflow path from intake to exhaust
- Install up to 7x 120 mm or 4x 140 mm fans (1x 120 mm and 2x 140 mm Dynamic X2 fans included)
- Seamlessly integrated TG panel with steel frame support and bolt-free top-latching mechanism
- Flexible storage options supporting two 2.5”/3.5” drives and up to four SSDs (two SSD brackets included)
- Improved cable routing with three integrated cable alignment clips and six velcro straps
- The fully removable top panel opens to provide excellent interior access
- Clever layout enables the capacity of much larger cases
- FD-C-MES2C-03 | Model
| Specifications | |
| 3.5"/2.5" Universal drive mounts | 2 (included) |
| Dedicated 2.5" drive mounts | 4 (2 included) |
| Expansion slots | 7 |
| Front interface | 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, Reset button |
| Total fan mounts | 7x 120 or 4x 140 mm and 2x 120 mm |
| Front fan | 3x 120 or 2x 140 mm, (2x Dynamic X2 GP-14 included) |
| Top fan | 2x 120/140 mm |
| Rear fan | 1x 120 mm, (1x Dynamic X2 GP-12 included) |
| Bottom fan | 1x 120 mm (requires removal of HDD cage) |
| Dust filters | Top, front and bottom |
| Fixed velcro straps | Yes |
| Cable routing grommets | Yes |
| Captive thumbscrews | HDD, SSD and PSU brackets |
| Left side panel | Tempered Glass |

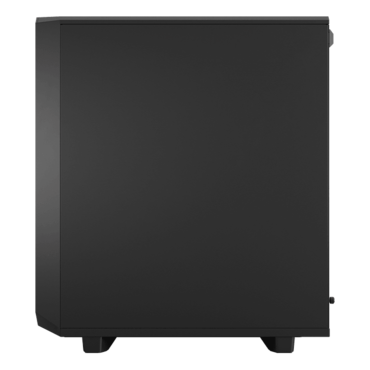

| Right side panel | Steel |
| Compatibility | |
| Motherboard compatibility | ATX / mATX / Mini-ITX |
| Power supply type | ATX |
| PSU max length | 200 mm (165 mm with HDD cage and front fan) |
| GPU max length | 341 mm (360 mm without front fan) |
| CPU cooler max height | 169 mm |
| Front radiator | Up to 360/280 mm |
| Top radiator | Up to 240 mm |
| Rear radiator | 120 mm |
| Bottom radiator | 120 mm (requires removal of HDD cage) |
| Cable routing space | 17-28 mm |
| Radiator Support – Additional Details | Maximum radiator width: 145 mm. Maximum motherboard component height for top mounted radiator: 40 mm. For more details, consult the manual. |
| Dimensions | |
| Case dimensions (LxWxH) | 424 x 210 x 475 mm |
| Case dimensions w/o feet/protrusions/screws | 412 x 210 x 455 mm |
| Package dimensions (LxWxH) | 542 x 320 x 554 mm |
| Net weight | 7.7 kg |
| Gross weight | 9.3 kg |
| Volume | 39.4 Liters |
| Other | |
| Package contents | Meshify 2 Compact Case, User manual, Accessory box |
| EAN | Black: 7340172702344 |
| UPC | Black: 843276102340 |
| JAN | Black: 4537694276825 |
| ASIN | Black: B0822WTQW9 |
| Product code | Black: FD-C-MES2C-03 |
