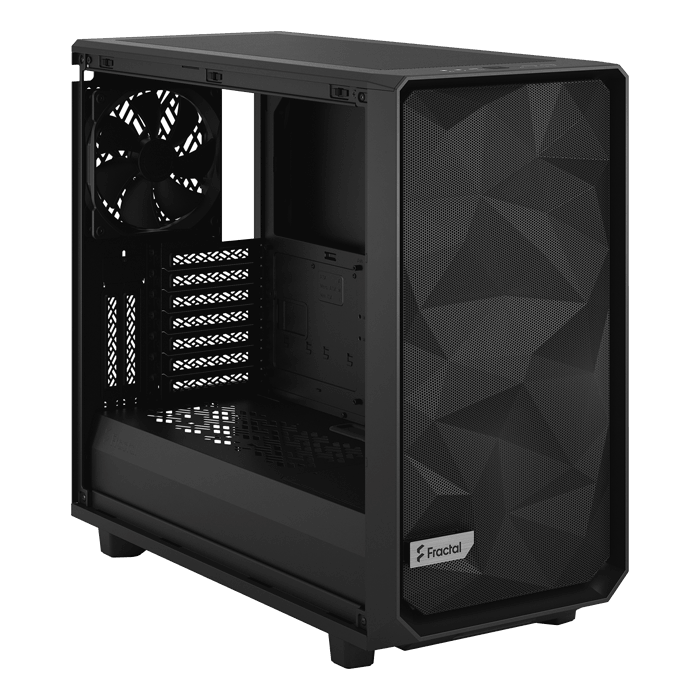

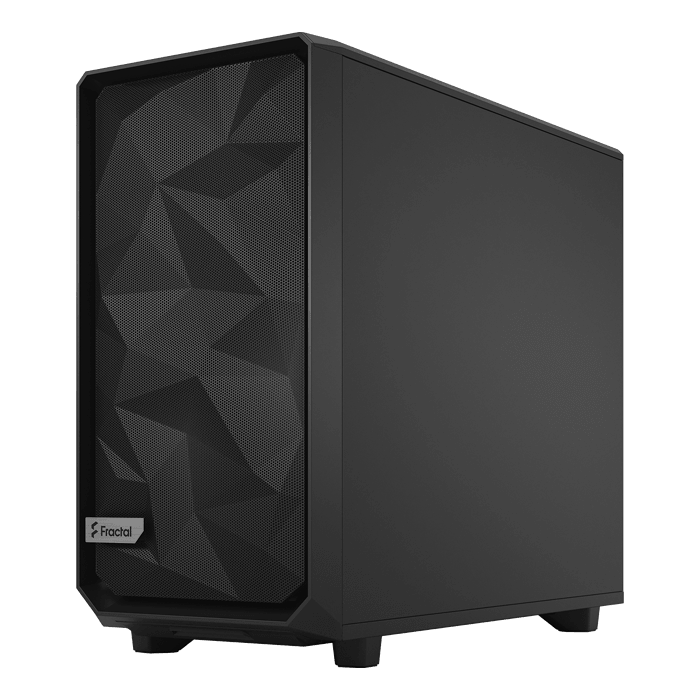

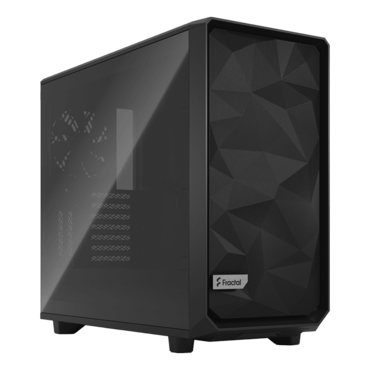

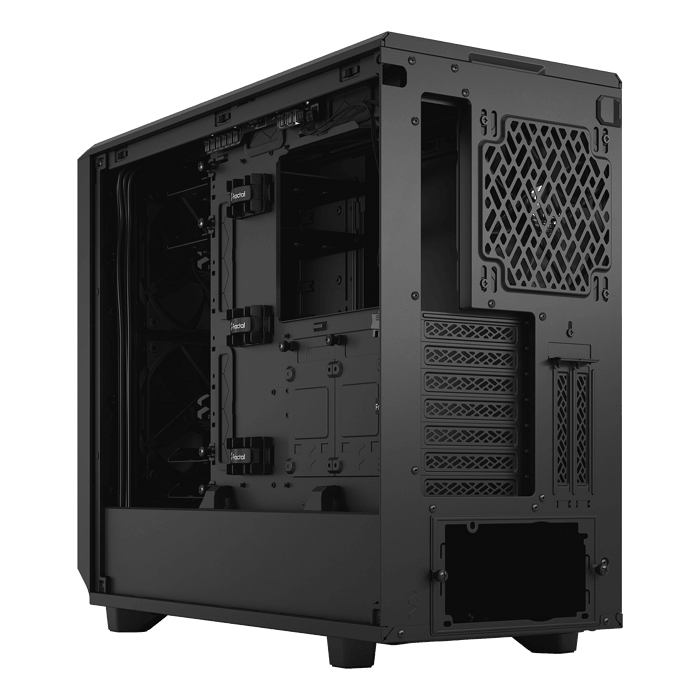

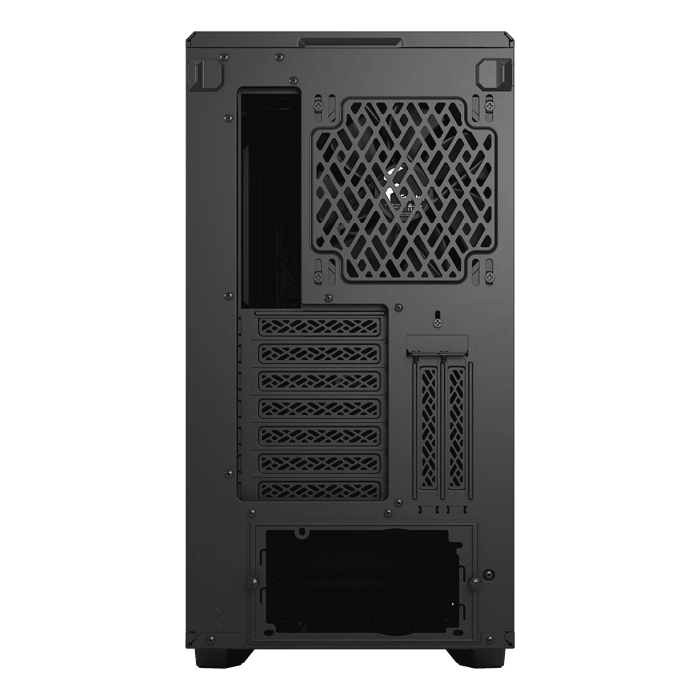

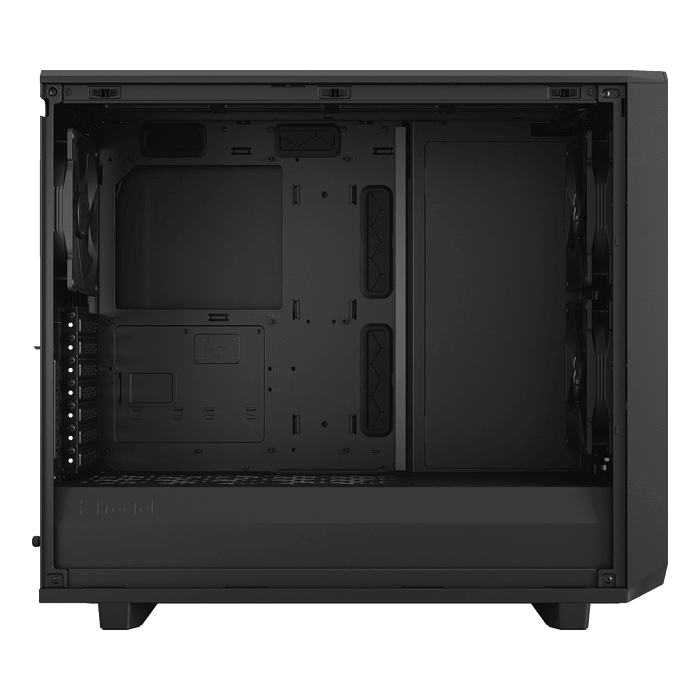

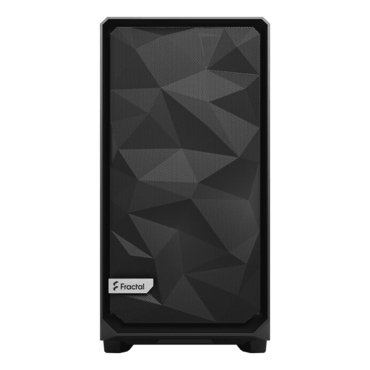

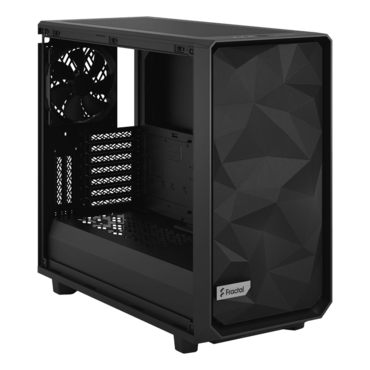

Meshify 2 Light Tempered Glass, No PSU, E-ATX, Black, Mid Tower Case
Quantity:
- SKU: 13733499
- Manufacturer: Fractal Design
- MPN: FD-C-MES2A-03
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$179.07
Meshify 2 Light Tempered Glass, No PSU, E-ATX, Black, Mid Tower Case
Fractal Design Meshify 2 Light Tempered Glass (FD-C-MES2A-03). The new Meshify 2 is a classic evolved with focus on distinctive design, spacious interior and rugged good looks.
Detachable front filter
- New front nylon filter that can be removed for increased airflow

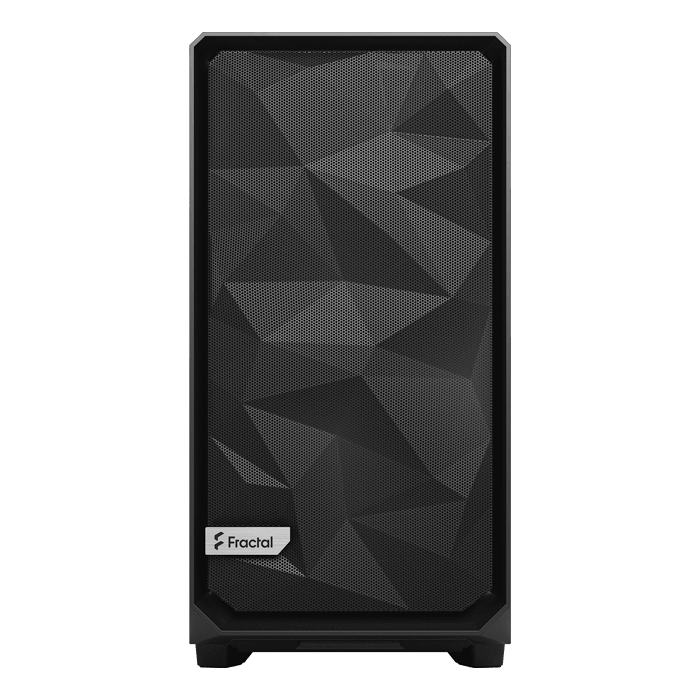

- New front panel design with hinged removable mesh and tether-free bezel for easier access to front fan mounts
- Three Dynamic X2 GP-14 fans come preinstalled with room to expand up to a total of nine fans
Superlative storage
- Convert to Storage Layout and install up to 11 HDDs alongside four dedicated SSDs mounts (6x SSD/HDD trays, 2x SSD brackets and 1x Multibracket included)
- Transformable interior design utilizing a movable wall for enhancing custom builds
- The included Multibracket lets you convert any unused fan position to an HDD, SSD or pump mount
- Tool-less, top-latching side panels allow quick access while preventing accidental drops
Extremely flexible
- Fits your custom water loop with large reservoirs and radiators up to 420 mm in the default Open Layout
- Support for radiators up to 360 mm (front), 420 mm (top) and 280 mm (base)
- Easily holds large motherboards up to and including 285 mm E-ATX
| Specifications | |
| 3.5"/2.5" Universal drive mounts | 6 included, 14 positions total + 1 Multibracket |
| Dedicated 2.5" drive mounts | 2 included, 4 positions total |
| Expansion slots | 7 + 2 |
| Front interface | 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, Reset button |
| Total fan mounts | 9x 120/140 mm |
| Front fan | 3x 120/140 mm (2x Dynamic X2 GP-14 included) |
| Top fan | 3x 120/140 mm |
| Rear fan | 1x 120/140 mm (1x Dynamic X2 GP-14 included) |
| Bottom fan | 2x 120/140 mm |
| Dust filters | Top, front and bottom |
| Fixed velcro straps | Yes |
| Cable routing grommets | Yes |
| Captive thumbscrews | HDD, SSD and PSU brackets |
| Left side panel | Tempered glass light tint |
| Right side panel | Steel |
| Compatibility | |
| Motherboard compatibility | E-ATX (max 285 mm)/ ATX / mATX / Mini-ITX |
| Power supply type | ATX |
| PSU max length | 250 mm (with HDD cage installed) |
| GPU max length | Storage layout: 315 mm Open layout: 491 mm (467 mm w/ front fan) |
| CPU cooler max height | 185 mm |
| Front radiator | Up to 360/280 mm |
| Top radiator | Up to 360/420 mm |
| Rear radiator | 120 mm |
| Bottom radiator | Up to 240/280 mm |
| Cable routing space | 30 mm |
| Dimensions | |
| Case dimensions (LxWxH) | 542 x 240 x 474 mm |
| Case dimensions w/o feet/protrusions/screws | 541 x 240 x 454 mm |
| Package dimensions (LxWxH) | 634 x 542 x 324 mm |
| Net weight | Solid: 10.1 kg TG: 10.5 kg |
| Gross weight | Solid: 12.8 kg TG: 13.2 kg |
| Volume | 59 liters |
| Other | |
| Package contents | Meshify 2 Case, User manual, Large accessory box - HDD trays, Small accessory box |
| EAN | Black - 7340172702443, Gray - 7340172702450 |
| UPC | Black - 843276102449, Gray - 843276102456 |
| JAN | Black - 4537694277136, Gray - 4537694277143 |
| Product code | Black - FD-C-MES2A-03, Gray - FD-C-MES2A-04 |
