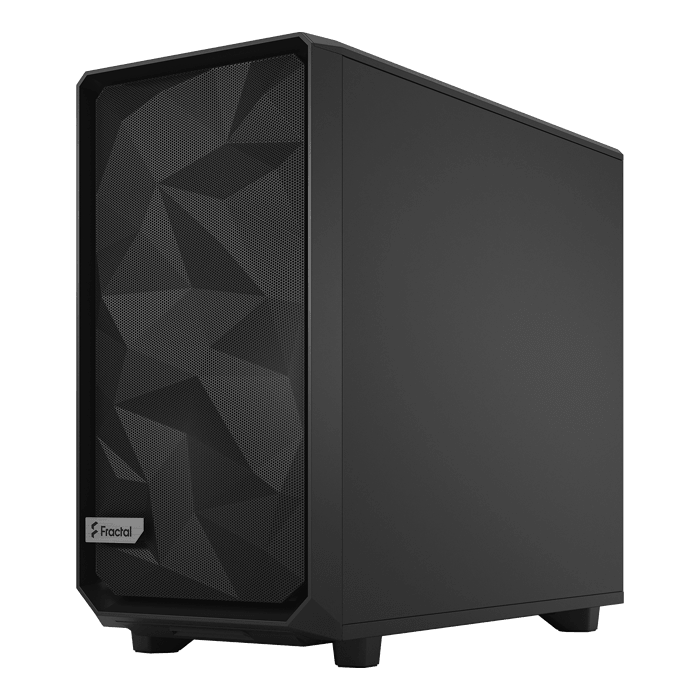

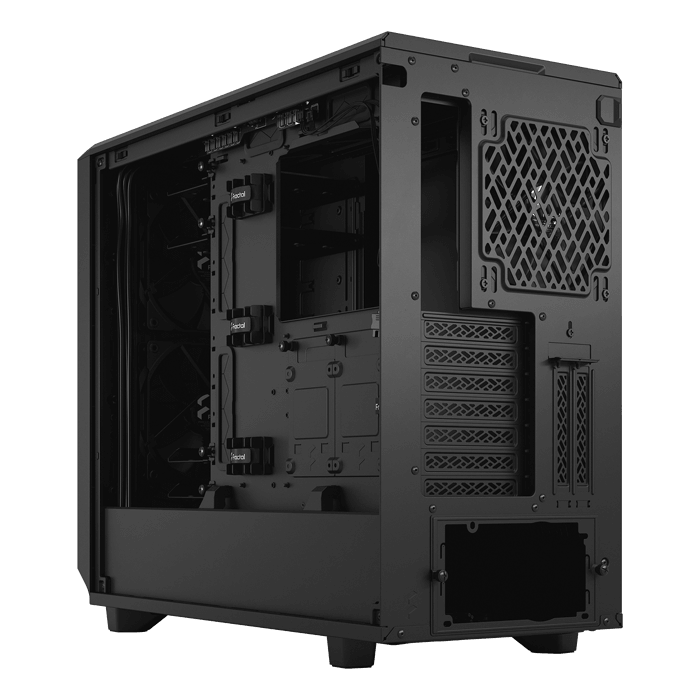

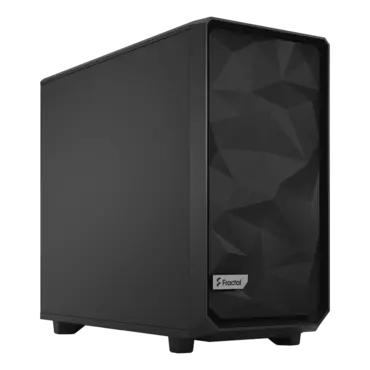

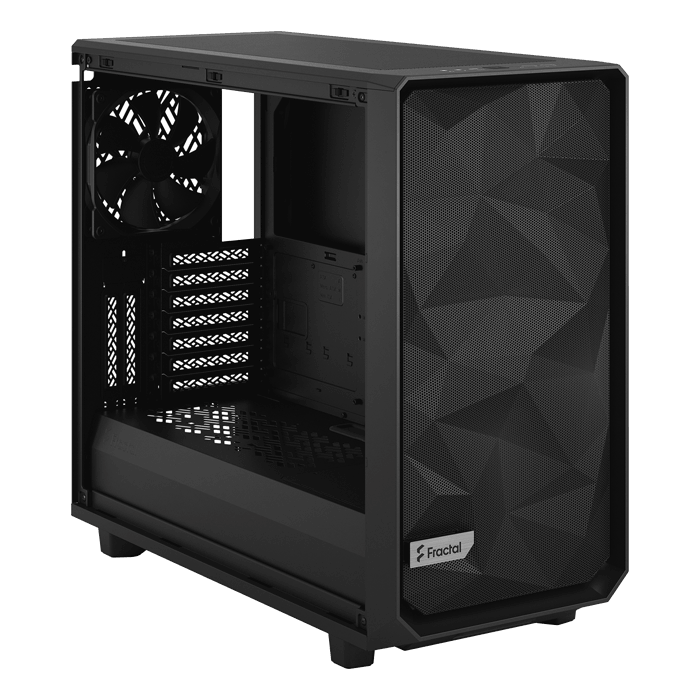

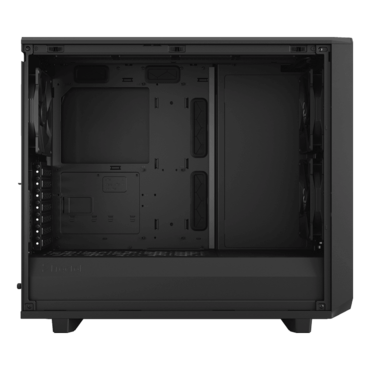

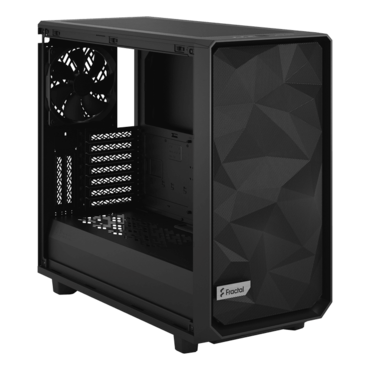

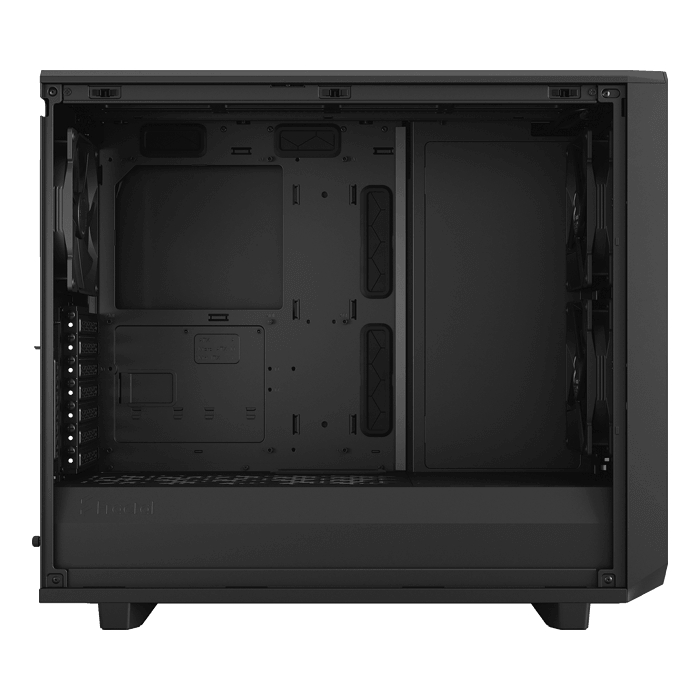

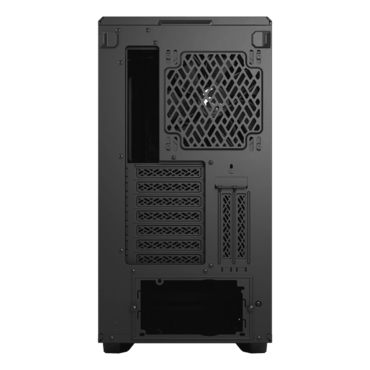

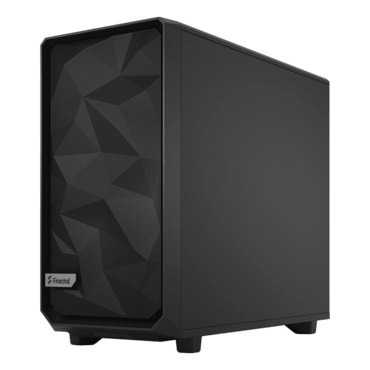

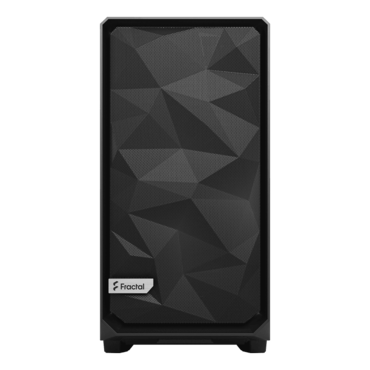

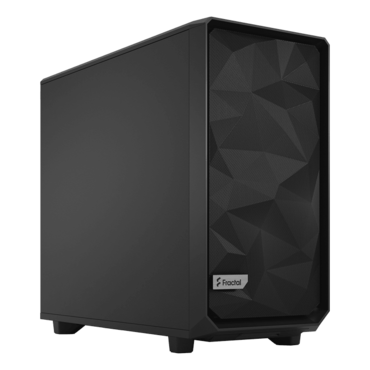

Meshify 2, No PSU, E-ATX, Black, Mid Tower Case
Fractal Design Meshify 2 (FD-C-MES2A-01). The new Meshify 2 is a classic evolved with focus on distinctive design, spacious interior and rugged good looks.
Detachable front filter
- New front nylon filter that can be removed for increased airflow
- New front panel design with hinged removable mesh and tether-free bezel for easier access to front fan mounts
- Three Dynamic X2 GP-14 fans come preinstalled with room to expand up to a total of nine fans
Superlative storage
- Convert to Storage Layout and install up to 11 HDDs alongside four dedicated SSDs mounts (6x SSD/HDD trays, 2x SSD brackets and 1x Multibracket included)
- Transformable interior design utilizing a movable wall for enhancing custom builds
- The included Multibracket lets you convert any unused fan position to an HDD, SSD or pump mount
- Tool-less, top-latching side panels allow quick access while preventing accidental drops
Extremely flexible
- Fits your custom water loop with large reservoirs and radiators up to 420 mm in the default Open Layout
- Support for radiators up to 360 mm (front), 420 mm (top) and 280 mm (base)
- Easily holds large motherboards up to and including 285 mm E-ATX
Specifications | |
3.5"/2.5" Universal drive mounts | 6 included, 14 positions total + 1 Multibracket |
Dedicated 2.5" drive mounts | 2 included, 4 positions total |

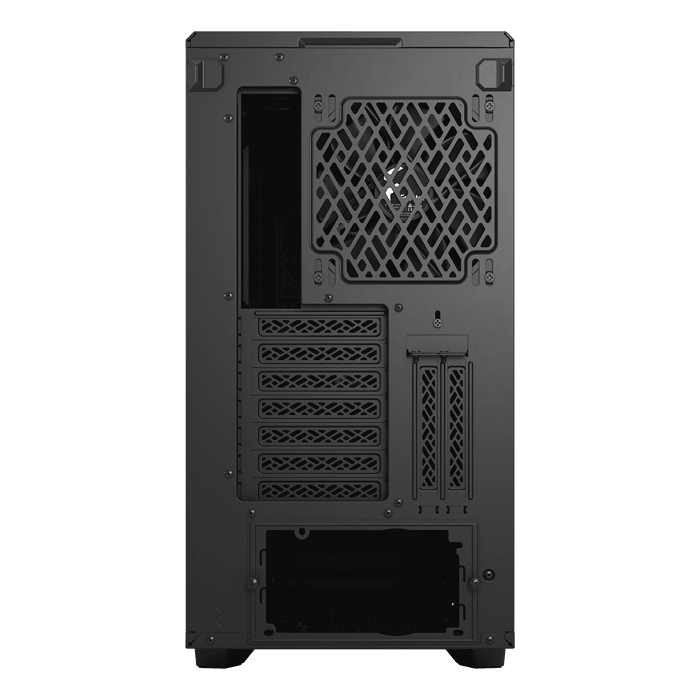

Expansion slots | 7 + 2 |
Front interface | 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, Reset button |
Total fan mounts | 9x 120/140 mm |
Front fan | 3x 120/140 mm (2x Dynamic X2 GP-14 included) |
Top fan | 3x 120/140 mm |
Rear fan | 1x 120/140 mm (1x Dynamic X2 GP-14 included) |
Bottom fan | 2x 120/140 mm |
Dust filters | Top, front and bottom |
Fixed velcro straps | Yes |
Cable routing grommets | Yes |
Captive thumbscrews | HDD, SSD and PSU brackets |
Left side panel | Steel |
Right side panel | Steel |
Compatibility | |
Motherboard compatibility | E-ATX (max 285 mm)/ ATX / mATX / Mini-ITX |
Power supply type | ATX |
PSU max length | 250 mm (with HDD cage installed) |
GPU max length | Storage layout: 315 mm Open layout: 491 mm (467 mm w/ front fan) |
CPU cooler max height | 185 mm |
Front radiator | Up to 360/280 mm |
Top radiator | Up to 360/420 mm |
Rear radiator | 120 mm |
Bottom radiator | Up to 240/280 mm |
Cable routing space | 30 mm |
Dimensions | |
Case dimensions (LxWxH) | 542 x 240 x 474 mm |
Case dimensions w/o feet/protrusions/screws | 541 x 240 x 454 mm |
Package dimensions (LxWxH) | 634 x 542 x 324 mm |
Net weight | Solid: 10.1 kg TG: 10.5 kg |
Gross weight | Solid: 12.8 kg TG: 13.2 kg |
Volume | 58.95 liters |
Other | |
Package contents | Meshify 2 Case, User manual, Large accessory box - HDD trays. Small accessory box |
EAN | 7340172702429 |
UPC | 843276102425 |
JAN | 4537694277112 |
Product code | FD-C-MES2A-01 |
