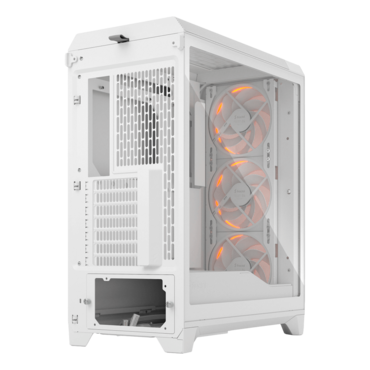

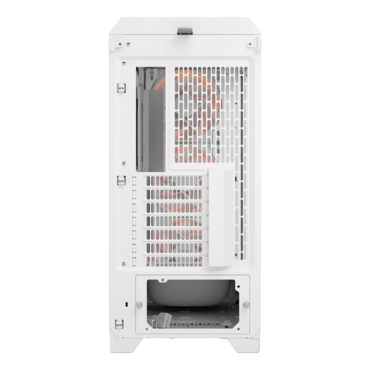

Meshify 3 RGB TG Clear Tint, Tempered Glass, No PSU, E-ATX, White, Mid Tower Case
- SKU: 19022457
- Manufacturer: Fractal Design
- MPN: FD-C-MES3A-07
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$129.83
| Specifications | |
| 3.5"/2.5" drive mounts | 2/4 |
| Dedicated 2.5" drive mounts | 2 (6 total) |
| 5.25” drive mounts | - |
| Expansion slots | 7 |
| Adjust Pro Hub | Included in Ambience Pro RGB version |
| Ambient Case Lighting | Ambience Pro RGB version |
| Front interface | 1 x USB Type-C 20 Gbps, 2 x USB Type-A 5 Gbps, 1x Audio Combo Jack, Power button |
| Total fan mounts | 6x 120 mm or 5x 140 mm + 1x 120 mm |
| Front fan | 3x 120 mm, 3x 140 mm (3 x 140 mm Momentum Included) |
| Top fan | 2x 120 mm, 2x 140 mm |
| Rear fan | 1x 120 mm |
| Bottom fan | - |
| Dust filters | PSU (Bottom) |
| Cable routing space | 34,5 mm |
| Cable cover | Yes |
| Cable organizers | 3 Hook-and-loop straps + 3 Cable Aligners |
| Tool-less push-to-lock | Both Side Panels, Bottom Filter, Front Panel, Top Panel, PSU Bracket |
| Captive thumbscrews | Top Radiator Bracket, PSU Bracket |
| Left side panel | Industrial steel (Solid), Tempered Glass (TG/RGB/Ambience Pro RGB) |
| Right side panel | Industrial steel |
| Compatibility | |
| Power supply type | ATX |
| Motherboard compatibility | E-ATX (277 mm) / AT / MATX / m-ITX |
| PSU max length | 180 mm |
| GPU max length | 349 mm |
| GPU max height | 176 mm (7 slot) including cables |
| CPU cooler max height | 173 mm |
| Front radiator | 280/360 mm |
| Top radiator | 240/280 mm |
| Rear radiator | 120 mm |
| Bottom radiator | - |
| Dimensions | |
| Case dimensions (LxWxH) | 433 x 229 x 507 mm |
| Case dimensions w/o feet/protrusions/screws | 423 x 229 x 483 mm |
| Package dimensions | 596 x 345 x 550 mm |
| Net weight | 8.7 kg (Solid) 8.8 kg (TG and RGB) 9.1 kg (Ambience Pro RGB) |
| Gross weight | 10.5 kg (Solid) 10.6 kg (TG and RGB) 11.1 kg (Ambience Pro RGB) |
| Other | |
| Package contents | Case, Accessory Box, manual, Manual, Red Note |
| Accessory Box content (Solid/TG/RGB) |
Motherboard Screw x9, PSU Screw x4, SSD Screw x24, HDD Screw x8, Motherboard Standoff x1, HDD Rubber x8, Zip Tie x4 |
| Accessory Box content (Ambience Pro RGB) |
Motherboard Screw x9, PSU Screw x4, SSD Screw x24, HDD Screw x8, Motherboard Standoff x1, HDD Rubber x8, Zip Tie x4, 500 mm Fractal Connect Cable x1, Legacy Splitter Cable |
| Warranty | 2 Years |
