Milo 10 SST-ML10B, No PSU, Mini-ITX, Black, Slim Case
Quantity:
- SKU: 13563401
- Manufacturer: SILVERSTONE
- MPN: SST-ML10B
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$88.55

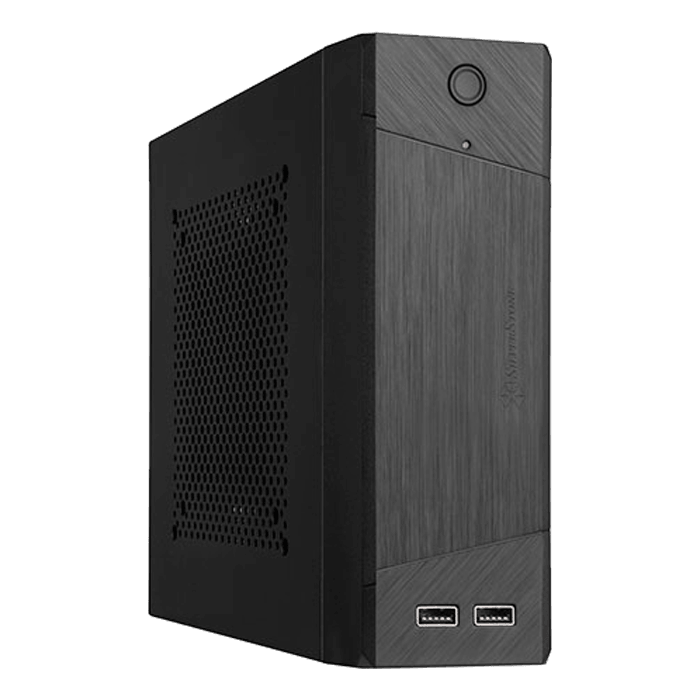

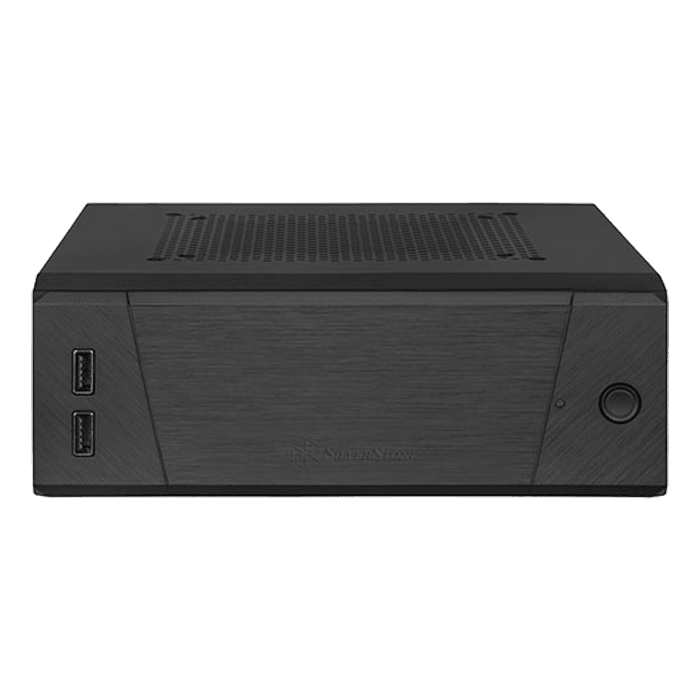

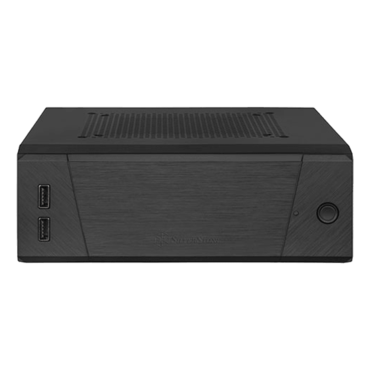

Milo 10 SST-ML10B, No PSU, Mini-ITX, Black, Slim Case
SilverStone Milo 10 SST-ML10B. Modular design. Interchangeable solid bezel and slim ODD bezel included for easily changing case size which allows different drive configurations to accommodate various storage components based on the height of your CPU coolers.
- Super small at only 2.8 liters or 3.7 liters (includes interchangeable top cover for altering case size)
- Modular design creates different configurations to accommodate various components (9.5mm slim ODD, 3.5" HDD, 2.5" SSD, 120/140mm fan)
- Includes VESA mounting plate for integration with monitors
- Adjustable / removable device bracket
- USB 3.0 x 2
| Model No. | SST-ML10B (black) | |
| Material | Plastic bezel, steel body | |
| Motherboard | Mini-ITX | |
| Drive bay | External |
Standard top cover: N/A Elevated top cover: 9.5mm slim optical bay |
| Internal |
Standard top cover: 2.5" x 2 Elevated top cover: 2.5" x 2 or 3.5" x 1* |
|
| Cooling system | Front | -- |
| Rear | -- | |
| Side |
Right side: 5010mm x 3 Left side: Ventilation |
|
| Top |
Standard top cover: Ventilation Elevated top cover:120mm/140mm x 1 ( built-in M.2 , w/o SSD) |
|
| Bottom | -- | |
| Internal | -- | |
| Front I/O port | USB 3.0 x 2 | |
| Power supply | DC board + external AC adapter (sold separately) | |
| Limitation of CPU cooler |
Standard top cover: 31mm (install 7mm height SSD inside) Elevated top cover: (1) 29mm (install HDD inside) (2) 31mm (install 7mm height SSD and ODD inside w/o HDD bracket standoff) (3) 36mm (Install M.2 + 25mm thickness 120mm / 140mm fan, w/o HDD/SSD bracket) (4) 47mm (install 7mm height SSD inside w/ HDD bracket standoff) (5) 63mm (install M.2, and w/o SSD / HDD / top fan) |
|
| Net weight | 1.4 Kg | |
| Dimension |
Standard top cover: 196mm (W) x 63mm (H) x 227mm (D), 2.8 liters Elevated top cover: 196mm (W) x 84mm (H) x 227mm (D), 3.7 liters 0" (W) x 2.48" (H) x 8.94" (D), . liters Elevated top cover: 0" (W) x 3.31" (H) x 8.94" (D), 3.7 liters |
|
| Remark | ||
| * When 3.5" drive is installed, slim ODD will not be able to be installed at the same time | ||
