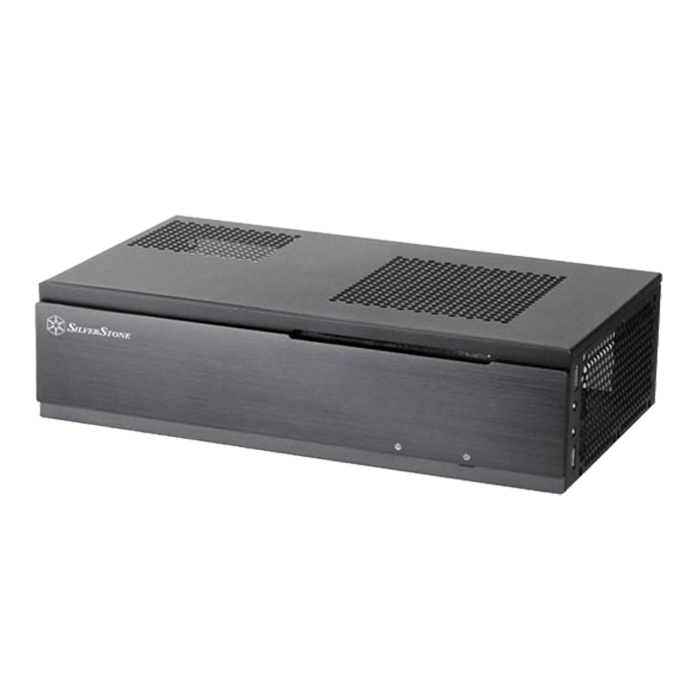

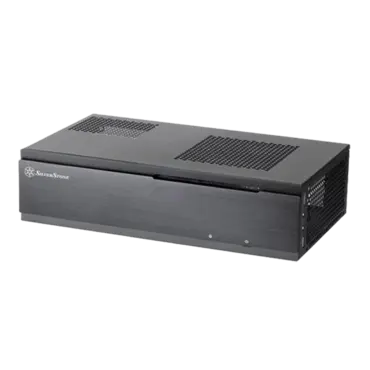

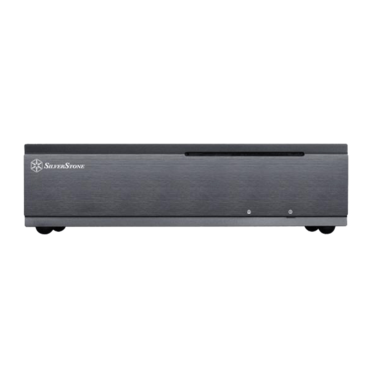

Milo Series SST-ML06B, No PSU, Mini-ITX, Black, HTPC Case

SKU: 8378606

Manufacturer: SILVERSTONE

MPN: ML06B

Availability: Available


Price: $68.49
or as low as $6/month
Quantity:

Continuing with the popular slim form factor HTPC, the Milo ML06 HTPC case is the smallest in the Milo series to-date and yet still able to fit modern day components. Although measuring only 7 liters in size (half the size of Micro-ATX based ML03), it can accommodate Mini-ITX motherboard, SFX power supply and install up to four 2.5” hard drives. An innovative multipurpose 4-in-1 bracket also allows installation of a slim optical drive, a 3.5” hard drive, two 2.5” drives, or a 120mm fan depending on user’s requirement. Complementing a superbly compact design is a beautiful aluminum front panel finished with hairline brush pattern that seamlessly integrates into home theater environments, making ML06 the best petite HTPC case on the market.

  • Super small at only 7 liters

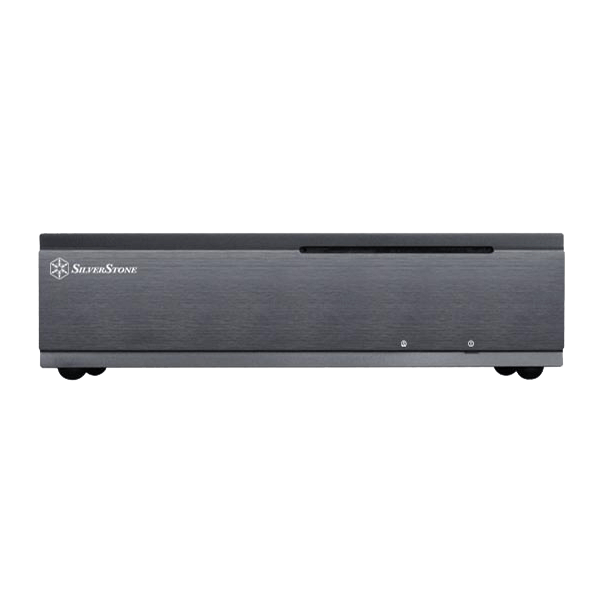

  • Aluminum front panel with premium styling
  • Supports up to two 80mm fans

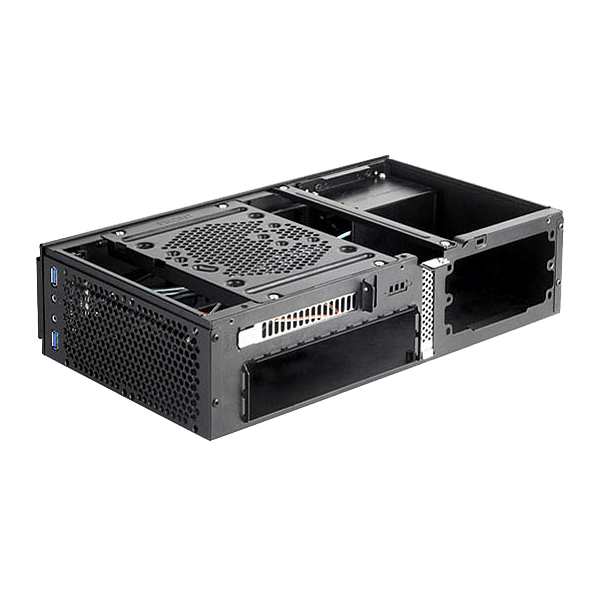

  • Multipurpose 4-in-1 bracket
  • Supports Mini-ITX motherboard and SFX power supply
  • Supports four 2.5” HDD/SSD
Model No. SST-ML06B (black)
Material 7mm aluminum front panel, 0.8mm steel body
Motherboard Mini-ITX
Multimedia --
Drive Bay
External 9.5mm/12.7mm slim slot-loading optical drive x 1 (replaceable with 3.5” HDD x 1 or 2.5” HDD x 2 or 120mm fan x 1)
Internal 2.5” x 4
Cooling System
Front --
Rear --
Side Right: 2 x 80mm fan slot
Top 120mm fan slot / oversized PSU vents
Bottom --
Internal --
Expansion Slot 1

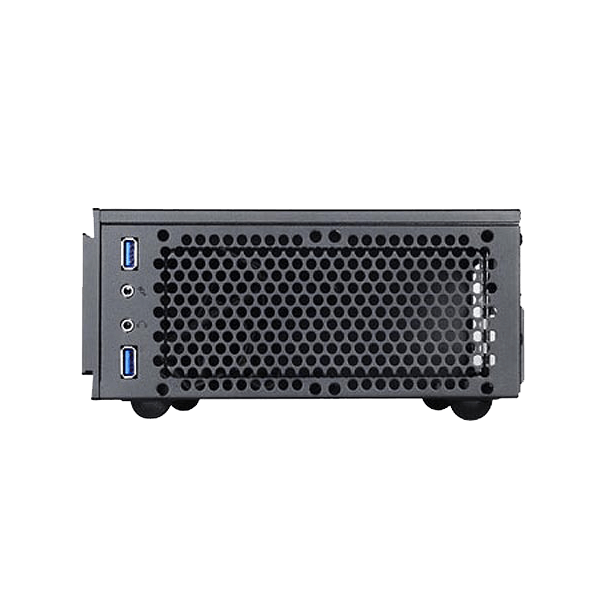

Front I/O Port USB 3.0 x 2
audio x 1
MIC x 1
Power Supply 1 x Optional standard SFX
Operating system support --
Expansion Card 1x low profile, width restriction-2.95"
Limitation of CPU cooler 37~70mm
Limitation of PSU SFX
Net Weight 2.4kg
Dimension 350mm (W) x 99 mm (H) x 205 mm (D), 7 liters
Extra support Kensington lock
Support VESA Mount --
