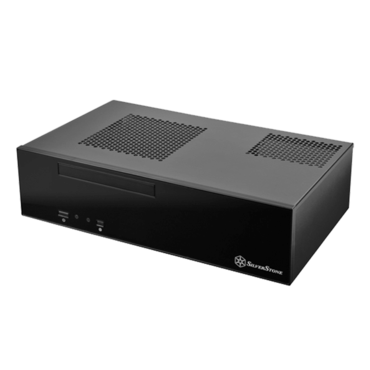

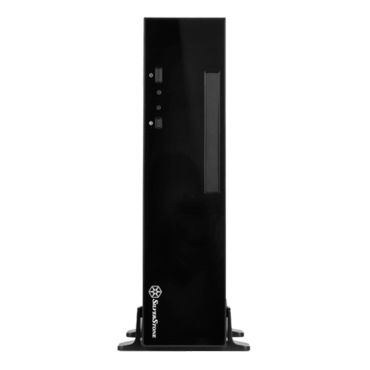

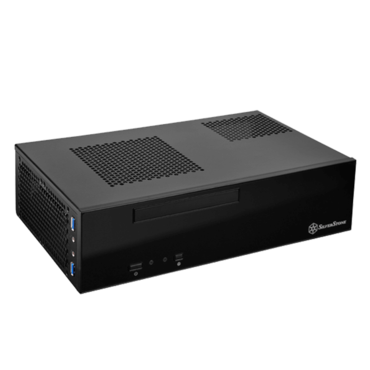

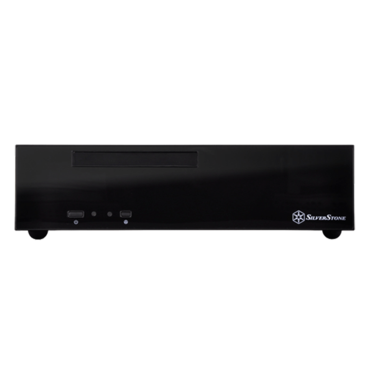

Milo Series SST-ML09B, No PSU, Mini-ITX, Black, HTPC Case

  • SKU: 10589921
  • Manufacturer: SILVERSTONE
  • MPN: SST-ML09B
  • Availability: LOW STOCK
Starting At
Milo Series SST-ML09B, No PSU, Mini-ITX, Black, HTPC Case

The ML09 is an evolution and variation of the premium Mini-ITX HTPC case, the Milo ML06. With external dimension unchanged at 7 liters, the ML09 rearranged internal layout provides a crucial second expansion slot for support of more powerful low-profile discrete graphics card or expansion card that are two slots wide. For users that wish to build with a more robust GPU or tuner card in console/DVR-like form factor to game or for multimedia content recording, the ML09 is a great starting point.

  • Super small at only 7 liters
  • Premium styling front panel with mirror finish
  • Includes one 120mm fan and support up to two 80mm fans
  • Multipurpose 4-in-1 bracket
  • Support Mini-ITX motherboard and SFX power supply
  • Support dual slot low-profile graphics or expansion card
  • Support four 2.5" HDD/SSD
Model No. SST-ML09B (black)
Material Acrylic and plastic front panel, 0.8mm steel body
Motherboard Mini-ITX,Mini-DTX
Drive Bay External Slim optical 12.7mm or 9.5mm x 1
(9.5mm compatibility limited to tray type)
(replaceable with 3.5" HDD x 1, 2.5" HDD x 2,or 120mm fan x 1)
Internal 2.5" x 4
Cooling System Front --
Rear --
Side 2 x 80mm fan slot
Top 1 x 120mm fan, 1500rpm, 18dBA
Bottom --
Internal --
Expansion Slot 2
Front I/O Port USB 3.0 x 2
audio x 1
MIC x 1
Power Supply 1 x Optional standard SFX
Operating system support --
Expansion Card Single or dual slot low profile up to 6.9", width restriction-2.95"
Limitation of CPU cooler 37~70mm (variable based on use of multipurpose bracket)
Limitation of PSU --
Net Weight 2.07kg
Dimension 350mm (W) x 99 mm (H) x 205 mm (D), 7 Liters
350mm (W) x 109 mm (H) x 205 mm (D) (includes feet)
Extra Support Kensington lock
Support VESA Mount --
