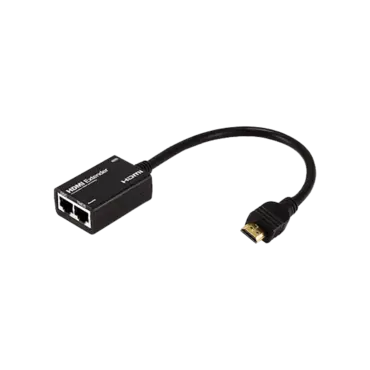

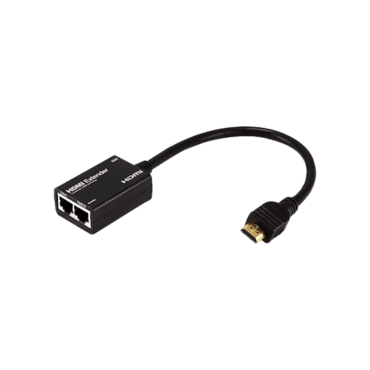

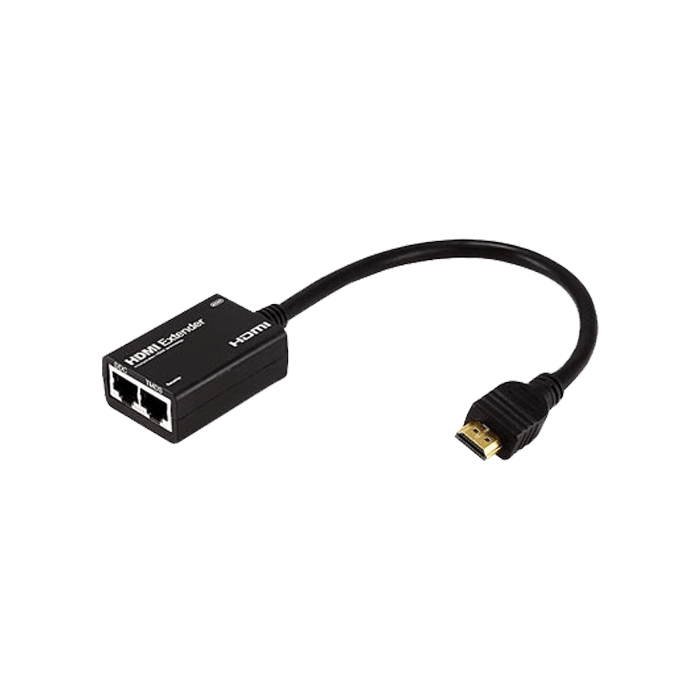

Mini HDMI Extender via two CAT5e/6/6a

SKU: 12660089

Manufacturer: NTI

MPN: st-c5hd-mini-ulc

Availability: Unknown


Price: $39.21
or as low as $1/month
Quantity:

HDMI Extender Mini Compact CAT5 1080p Remote HDTV 200 feet

Mini HDMI Extender via Two CAT5e/6/6a
  • Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200.
  • HDMI and HDCP compliant
  • No power supply necessary.
  • Specifications
  • Local Unit
    • Compatible with a computer or HDTV video source with HDMI output.
    • One male HDMI connector for source connection.
    • One female RJ45 port for sending high definition video/audio signals.
    • One female RJ45 port for sending DDC signal.
    Remote Unit
    • One male HDMI connector for display.
    • One female RJ45 port for receiving high definition video/audio signals.
    • One female RJ45 port for receiving DDC signal.
    • Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200.
    • Supports embedded digital audio through HDMI compatible TVs or audio receivers.
    Dimensions
    • WxDxH: 2.13x1.44x0.84 in (54x37x21 mm) with 8-inch (203-mm) male HDMI cable attached (local and remote unit).
    Max Distance
    • 150 feet (46 meters) over two CAT5e/6/6a cables.
    Cables
    • Use CAT5e/6/6a UTP straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors.
      • Extend 1080p resolution up to 100 feet with UTP CAT5e/6 cable.
      • Extend 1080p resolution up to 150 feet with UTP CAT6a cable.
    • Cables not included.
    Environmental
    • Operating temperature: 32 to 158°F (0 to 70°C).
    • Storage temperature: 14 to 176°F (-10 to 80°C).
    • Operating and storage relative humidity: 5 to 85% non-condensing RH.
    Regulatory Approvals
    • CE, FCC, RoHS
    Warranty
    • Two years.
