Multi-Format HD Video Wall Controller: 2x2

  • SKU: 12658928
  • Manufacturer: NTI
  • MPN: splitmux-vwc-4hdlc
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
Multi-Format HD Video Wall Controller: 2x2
Multi-Format HD Video Wall Controller: 2x2

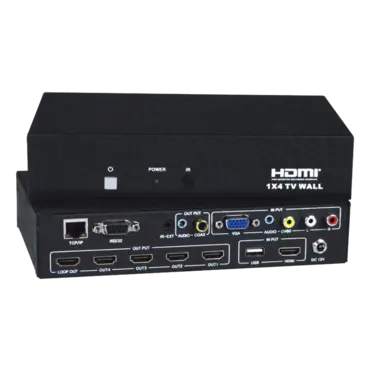

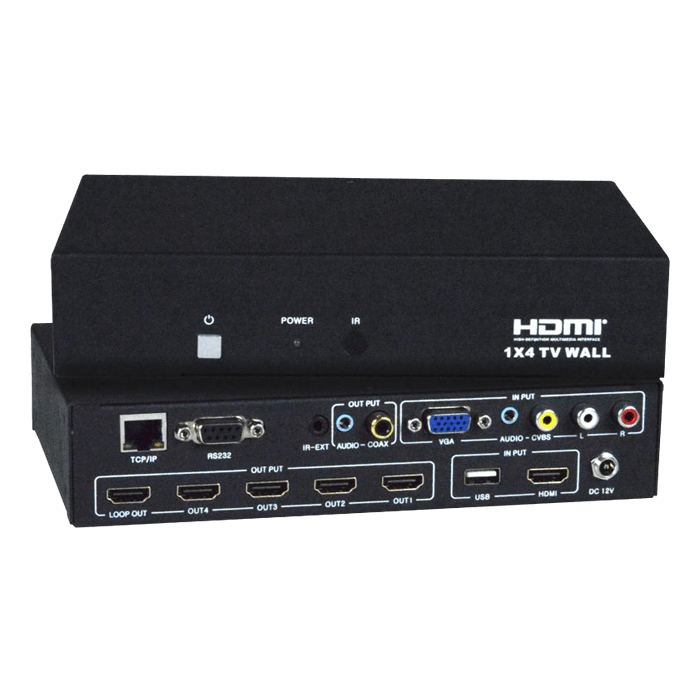

Multi-Format HD Video Wall Controller
  • Multi-Format HD Video Wall Controller allows you to display the video from one HDMI, VGA or composite video source across four 1080p HDMI monitors
  • Supports video wall configurations with displays in landscape or portrait orientations
  • Audio/Video Input
    • One female HDMI connector.
    • One female 15-pin HD connector.
    • One RCA composite video jack.
      • Supports PAL, NTSC, SECAM
    • One 3.5 mm stereo audio jack.
    • One set (R&L) RCA audio jacks.
    • One female USB Type A connector.
      • Supported file types: MPEG, H.264, RM/RMVB movie decode, JPEG, BMP, PNG Picture decode and MPEG1/2, MP3 audio decode
    Audio/Video Output
    • Four female HDMI connectors.
    • One female HDMI Loop Out connector for cascading.
    • Supported video output resolutions: 1024x768, 720p, 1360x768, 1080p
      • Input resolutions will be converted to one of these user-selectable resolutions.
    • Supports embedded digital audio through HDMI compatible TVs or audio receivers.
    • One 3.5 mm stereo audio jack.
    • One digital coaxial (RCA) audio jack.
    Control Methods
    • Ethernet
      • One female RJ45 connector.
    • RS232
      • One female DB9 connector.
    • IR remote control
      • One female 3.5mm port for IR receiver.
      • IR remote control and 38 KHz IR receiver cable included.
    • Input: 100 to 240 VAC at 50 or 60 Hz via AC adapter. (US AC adapter included.)
    • Output: 12 VDC, 2A
    • WxDxH (in): 8.27x5.31x1.75 (210x135x44 mm)
    • Interface cables between the video source/displays and the video wall controller are required for proper operation.
      • Supports HDMI cables connected to the input up to 25 feet.
      • Supports HDMI cables connected to the outputs up to 100 feet.
    • Use HD-xx-MM cable to connect an HDMI source or displays.
    • Use DVI-HD-xx-MM cable to connect a DVI source or displays.
    • Use VEXT-xx-MM cable to connect a VGA source.
    • Use SA-xx-MM cable to connect a stereo audio source or speakers.
    • Use RRCVEXT-xx-MM cable to connect a composite video + stereo audio source.
    • Cables not included.
    • Operating temperature: 32 to 104°F (0 to 40°C).
    • Storage temperature: -4 to 140°F (-20 to 60°C).
    • Operating/storage relative humidity: 20 to 90% non-condensing RH.
    Regulatory Approvals
    • CE, FCC, RoHS
    • Two years
    Compatible NTI Products
    • Combine NTI's extenders, switches, splitters and cables for complex applications.
      • Low-Cost HDMI Extender via One SC Singlemode Fiber Optic Cable (ST-FOHD-SC-ULC)
      • HDMI to VGA Converter Cable
        • Use to connect an HDMI source to the VGA input of the SPLITMUX-VWC-4HDLC
