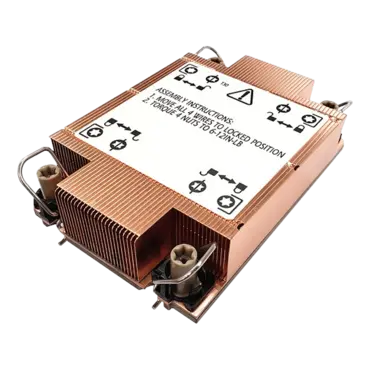

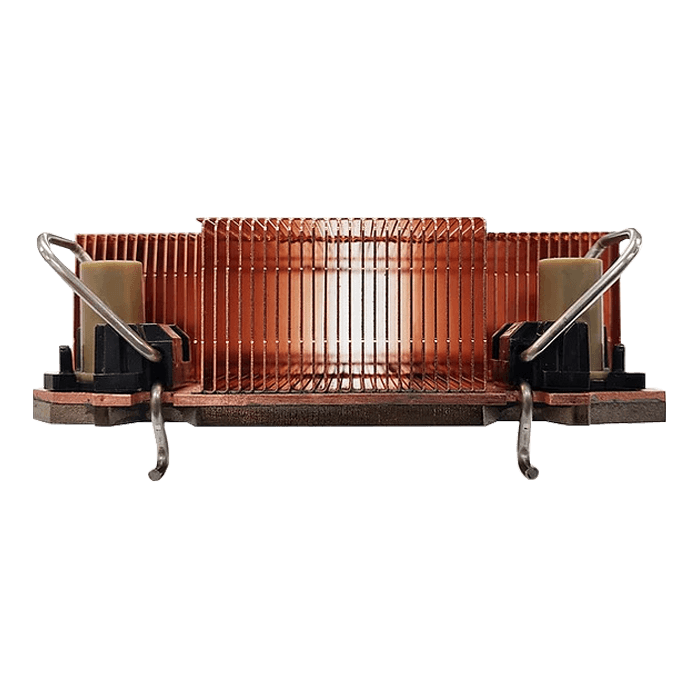

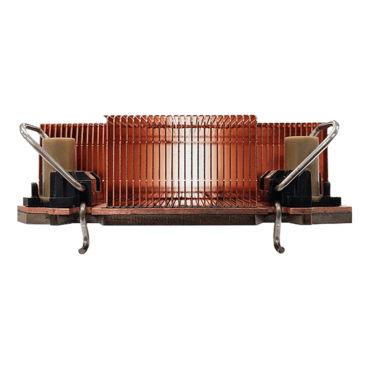

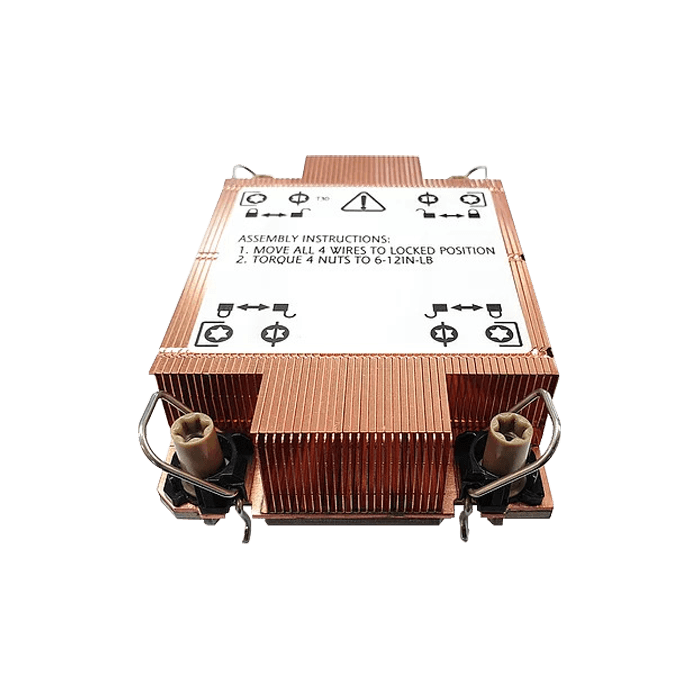

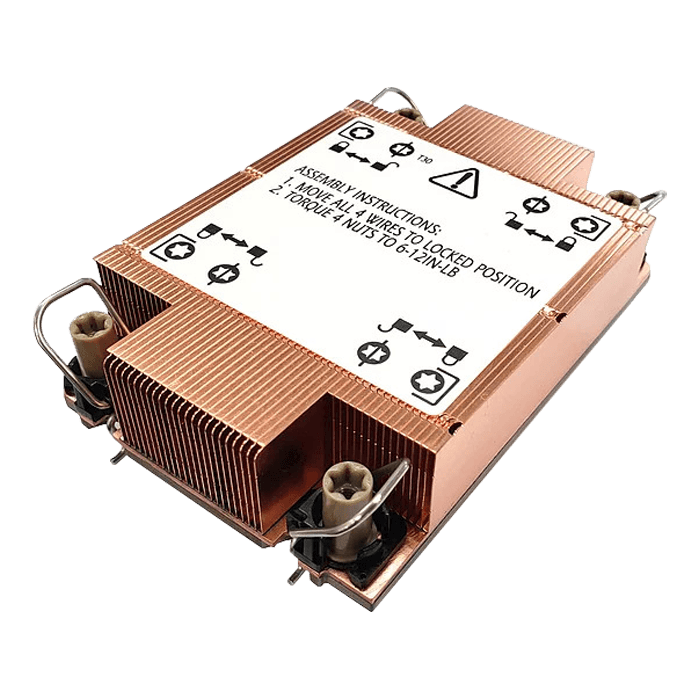

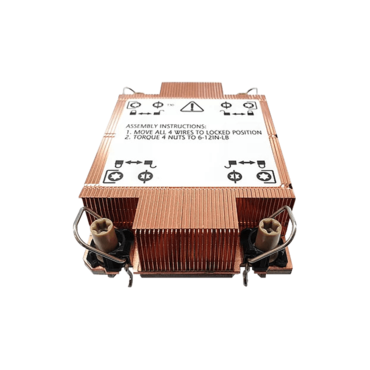

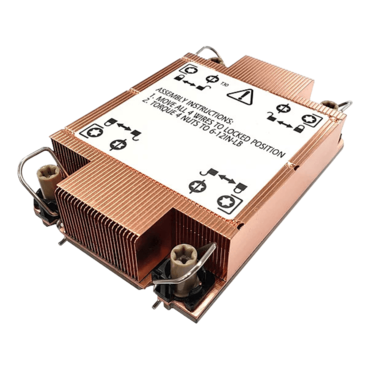

N3, Socket LGA 4189, 27mm Height, 205W TDP, Copper CPU Heatsink

Quantity:
  • SKU: 13748709
  • Manufacturer: DYNATRON
  • MPN: N3
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$36.79
Quantity:
N3, Socket LGA 4189, 27mm Height, 205W TDP, Copper CPU Heatsink
The Dynatron N3 CPU cooler is designed for N3
CPU Support

Intel

CPU Socket

FCLGA 4189-4/5(Socket P4/P5 or P+)

Solution

1U Server and Up

Dimensions

113.0 x 80 x 27 mm

Weight

410 g

Material

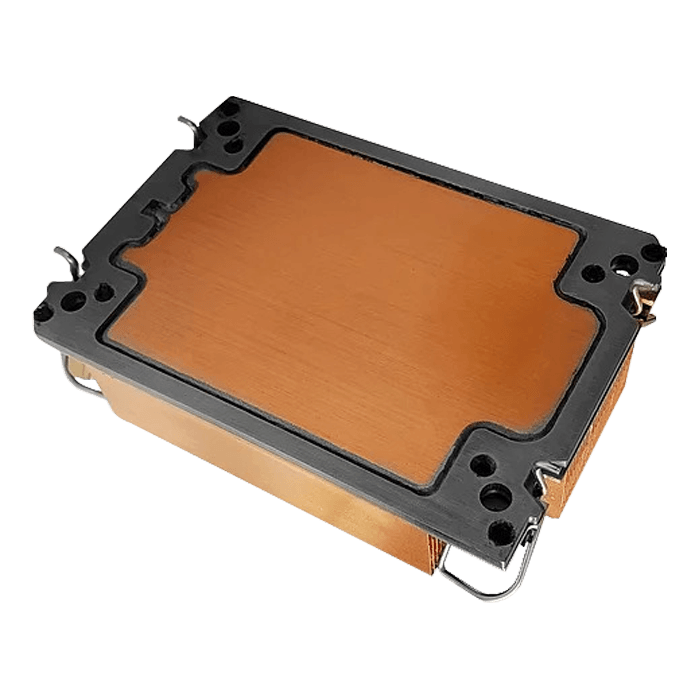

Copper1100 Heatsink with Vapor Chamber Base

Fan Dimension

80 x 13 mm

Speed

At Duty Cycle 0~20%: 2000 ± 200 RPM
At Duty Cycle 50%: 4900 ± 10% RPM
At Duty Cycle 100%: 8600 ± 10% RPM

Rated Voltage

12V

Bearing

2 Ball Bearing

Power

At Duty Cycle 20%: 1.08 W
At Duty Cycle 50%: 4.7 W
At Duty Cycle 100%: 23.45 W

Air Flow

At Duty Cycle 20%: 5.59 CFM
At Duty Cycle 50%: 14.76 CFM
At Duty Cycle 100%: 26.25 CFM

Noise Level

At Duty Cycle 20%: 23.3 dBA
At Duty Cycle 50%: 43.5 dBA
At Duty Cycle 100%: 62.2 dBA

Air Pressure

At Duty Cycle 20%: 3.69 mm-H2O
At Duty Cycle 50%: 25.28 mm-H2O
At Duty Cycle 100%: 89.80 mm-H2O

Lead Wire Pin Out

Pin#1-Black(-)
Pin#2- Yellow(+)
Pin#3- Green(Tachometer/ Signal Output)
Pin#4- Blue (PWM)

Thermal Grease

Shin-Etsu 7762 Pre-printed
