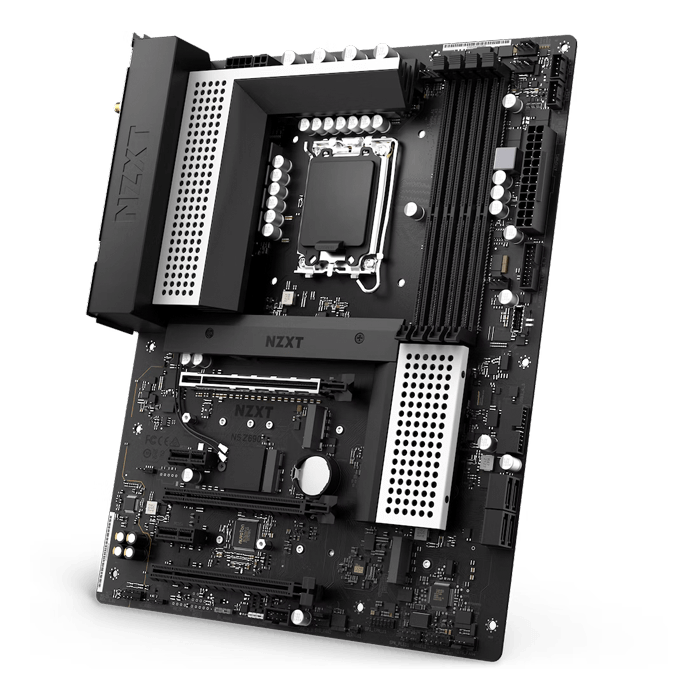

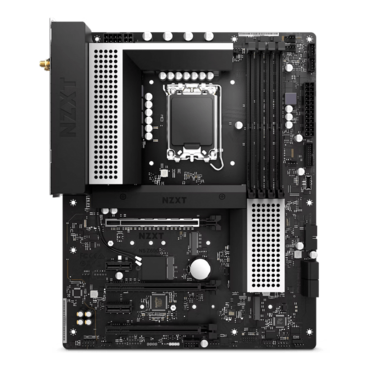

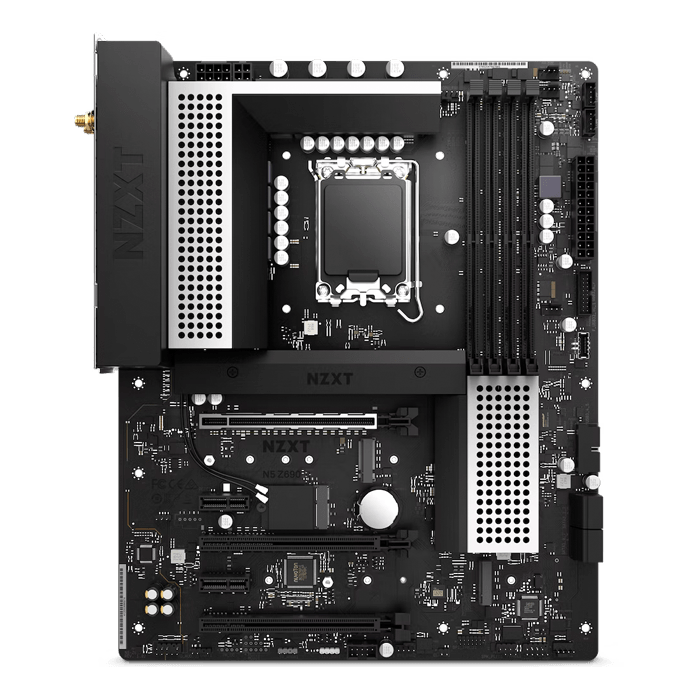

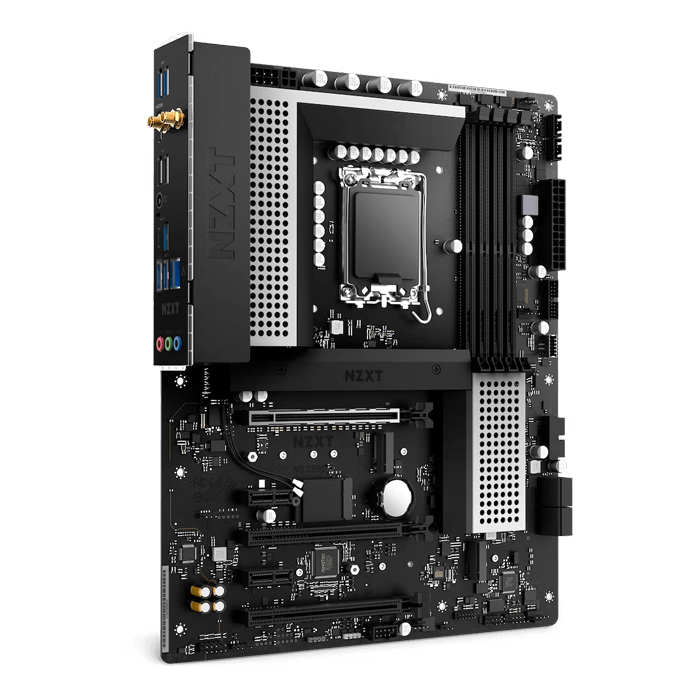

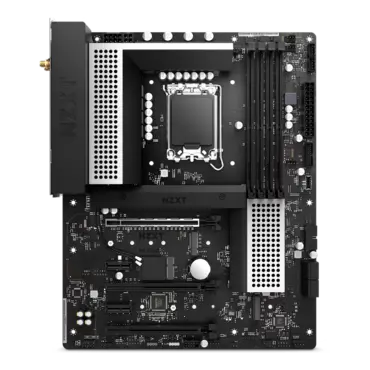

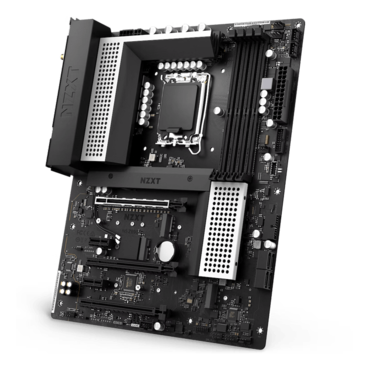

N5 Z690, Intel® Z690 Chipset, LGA 1700, White, ATX Motherboard
Quantity:
- SKU: 15827261
- Manufacturer: NZXT
- MPN: N5-Z69XT-W1
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$253.56
N5 Z690, Intel® Z690 Chipset, LGA 1700, White, ATX Motherboard
The N5 is a modern platform for a powerful build, driven by the latest Z690 chipset.
- Wi-Fi 6E connectivity with updated specs for Z690 chipset
- Digital RGB lighting control through NZXT CAM
- Digital fan control with profiles within NZXT CAM for six independent fan channels
- Integrated rear I/O shield and efficient layout ensures optimal setup with upgradeability
| CPU | |
| Intel® Socket LGA1700 for 12th Generation Processors: | Intel® Core™ Processors. Please refer to CPU support list. |
| Intel® Hybrid Technology: | Supported |
| Turbo Boost Max 3.0 Technology: | Supported |
| CHIPSET | |
| Intel®: | Z690 |
| MEMORY | |
| DIMM Slots: | 4, DDR4 only |
| Max Memory Support: | 128GB |
| Memory Architecture: | Dual-Channel |
| OC Frequency: | 5000+(O.C.). Please refer to memory QVL. |
| Base Frequency: | 3200 / 2933 / 2800 / 2666 / 2400 / 2133 MHz |
| Type: | Non-ECC, Un-buffered Memory |
| Intel® XMP 2.0 Support: | Supported |
| INTEGRATED GRAPHICS | |
| Intel® Xe Graphics (11th Gen CPUs) / UHD (10th Gen CPUs): | HDMI 2.0 / HDMI 1.4b |
| HDMI Max Resolution: | 4096x2160@60Hz |
| MULTI-GPU SUPPORT | |
| AMD 2-Way CrossFireX™ Technology: | Supported |
| EXPANSION SLOTS | |
| PCIe x16: | 3 (Single - PCIe_1: Gen 5 x16 mode / Dual - PCIe_1: Gen 5 x16; PCIe_3: Gen 4 x4 / Triple - PCIe_1: Gen 5 x16; PCIe_3: Gen 4 x4; PCIe_5: Gen 3 x1) |
| PCIe 3.0 x1: | 2 |
| M.2 Socket (Key E): | Supports Type 2230 Wi-Fi/BT Module, Intel CNVio |
| STORAGE (CHIPSET) | |
| M.2_1 Type 2242/2260/2280 (PCIe 4.0 x4 mode): | 1 |
| M.2_2 Type 2242/2260/2280 (PCIe 4.0 x4 mode): | 1 |
| M.2_3 Type 2242/2260/2280/22110 (PCIe 4.0 x4 & SATA mode): | 1 |
| M.2_4 Type 2242/2260/2280 (PCIe 4.0 x4 & SATA mode): | 1 |
| SATA 6Gb/s: | 4 |
| RAID 0/1/5/10 Support: | Supported |
| Intel® Volume Management Device (VMD): | Supported |
| Intel® Optane Technology: | Supported |
| NVMe SSD as boot disks: | Supported |
| LAN | |
| Realtek®: | RTL8125BG 2.5G |
| WIRELESS | |
| Dual-Band Wireless: | Wi-Fi 6E |
| Protocol: | 802.11 a/b/g/n/ac/ax |
| Frequency Bands: | 2.4 / 5 / 6 GHz |
| MU-MIMO Support: | Supported |
| Bluetooth: | V5.2 |
| AUDIO | |
| Realtek®: | ALC897 Codec |
| Channels: | 8-Channel High Definition Audio |

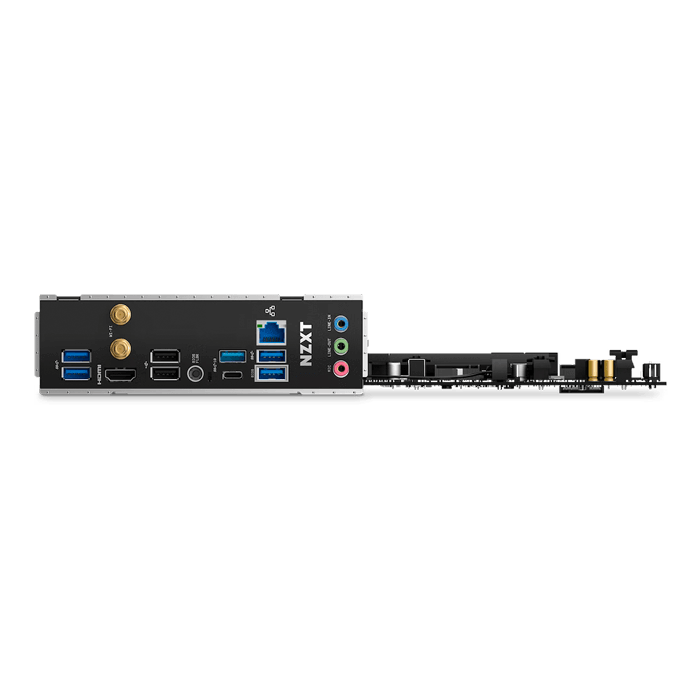

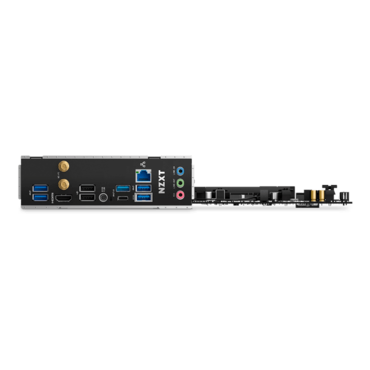

| REAR I/O | |
| USB 3.2 Gen 2 (Type-C): | 1 |
| USB 3.2 Gen 2 (Type-A): | 1 |
| USB 3.2 Gen 1 (Type-A): | 4 |
| USB 2.0: | 2 |
| HDMI™ 2.0: | 1 |
| Wireless Antenna: | 2 (2T2R) |
| LAN (RJ45) Port: | 1 |
| HD Audio Jacks: Line-in / Front Speaker / Mic: | 1 |
| BIOS Flashback Button: | 1 |
| INTERNAL I/O | |
| USB 3.2 Gen 2 Header (Type-C): | 1 |
| USB 3.2 Gen 1 Header: | 1 (Up to 2 ports) |
| USB 2.0 Header: | 2 (Up to 4 ports) |
| Front Panel Audio: | 1 |
| CPU_FAN Connector: | 1 (Up to 24W) |
| AIO_PUMP Connector: | 1 (Up to 24W) |
| SYS_FAN Connector: | 4 (Up to 24W) |
| NZXT RGB LED Header: | 2 |
| 5V ARGB Header: | 1 |
| 12V RGB Header: | 1 |
| 24-pin EATX Power: | 1 |
| 8-pin ATX 12V Power: | 1 |
| 4-pin ATX 12V Power: | 1 |
| POST LEDs: | 4 |
| GENERAL | |
| Operating System: | Windows® 11/10 64-bit |
| Form Factor: | ATX |
| Warranty: | 3 years |
| Model Number: | N5-Z69XT-W1 |
| UPC: | 815671016027 |
| EAN: | 5056547200132 |
