Warranty Information | |
Warranty | Lifetime |
Connector(s) | |
Connector A | 1 - RJ-45 |
Connector B | 1 - RJ-45 |
Hardware | |
Number of Conductors | 4 pair UTP |
Connector Plating | Gold |
Cable Jacket Material | Al(OH)3 (Aluminium Hydroxide), EVA (Ethylene-Vinyl Acetate Copolymer) |
Fire Rating | LSZH Rated (Low Smoke Zero Halogen) |
Cable Type | Snagless |
Wiring Standard | TIA/EIA-568-B.1-2001 T568B |
Packaging Information | |
Shipping (Package) Weight | 1.1 oz [30.0 g] |
Package Length | 7.9 in [20.0 cm] |
Package Width | 8.7 in [22.0 cm] |
Package Height | 0.2 in [5.0 mm] |
Performance | |
Cable Rating | CAT6 - 250 MHz |
Physical Characteristics | |
Color | Blue |
Wire Gauge | 28 AWG |
Conductor Type | Stranded Copper |
Cable Length | 3.0 ft [0.9 m] |
Product Length | 3.0 ft [0.9 m] |
Product Width | 0.5 in [12.0 mm] |
Product Height | 0.4 in [1.0 cm] |
Weight of Product | 0.7 oz [20.0 g] |
What's in the Box | |

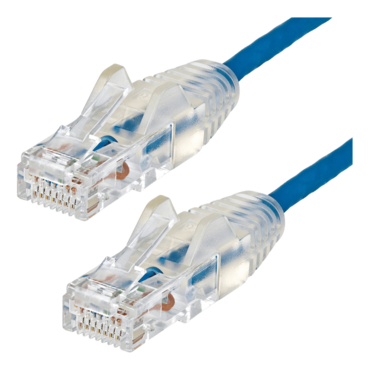

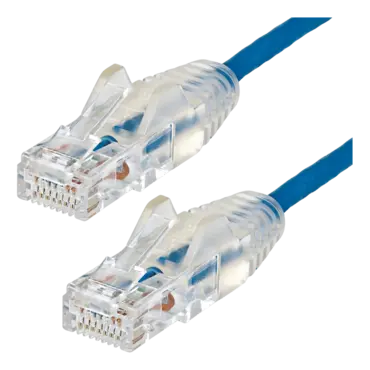

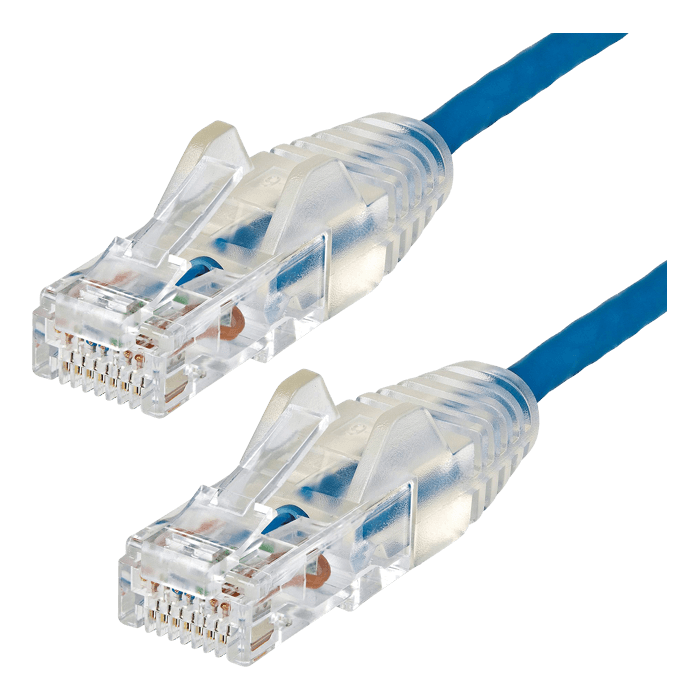

Included in Package | 1 - Cat6 patch cable |
