N7 B550 Matte Black, AMD B550 Chipset, AM4, HDMI, ATX Motherboard

Quantity:
  • SKU: 14521337
  • Manufacturer: NZXT
  • MPN: N7-B55XT-B1
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$294.38
Quantity:

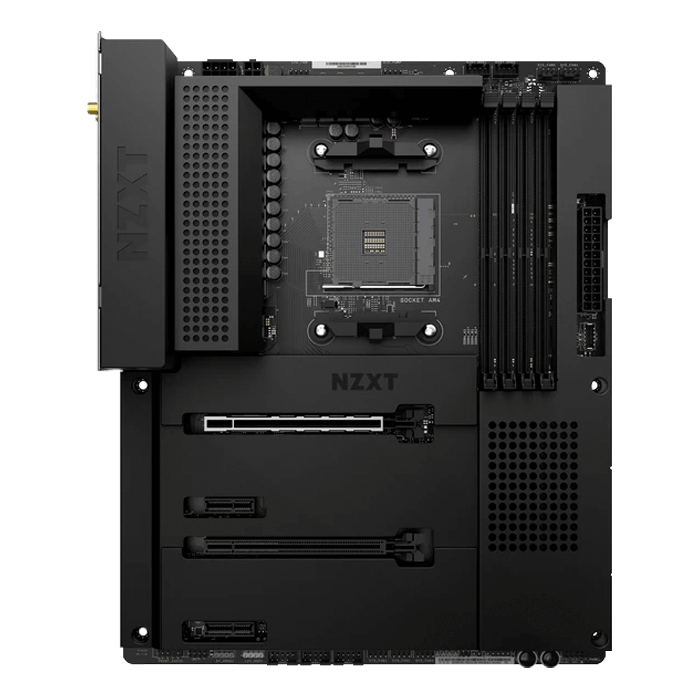

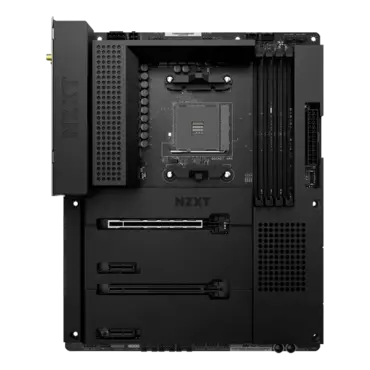

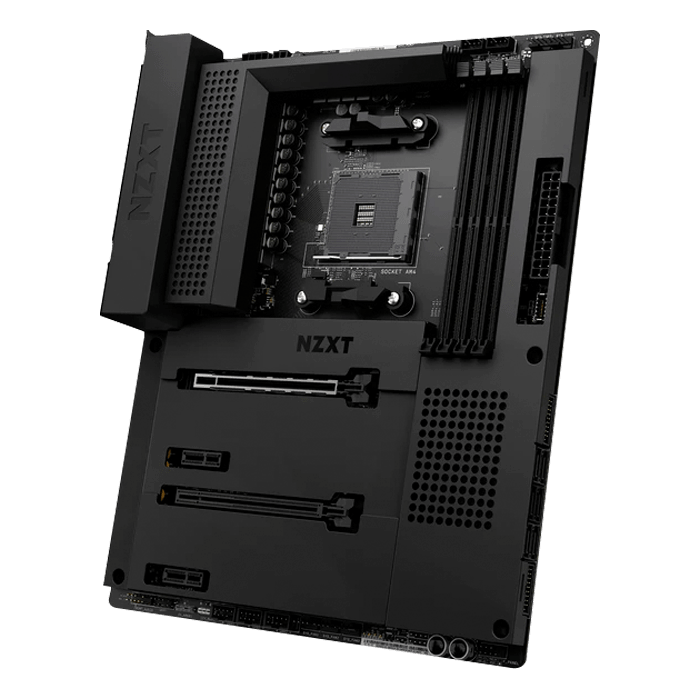

N7 B550 Matte Black, AMD B550 Chipset, AM4, HDMI, ATX Motherboard

NZXT N7 B550 Black (N7-B55XT-B1). This motherboard enables a visually seamless backdrop for any build with all the features of the reliable AMD B550 chipset.

  • WiFi 6E connectivity
  • Digital RGB lighting control through NZXT CAM
  • Digital fan control for fan profiles within NZXT CAM for seven independent fan channels
  • Integrated rear I/O shield and efficient layout
  • Compatible with 3rd Gen AMD™ Ryzen™ processors (3000, 4000, and 5000 Series Processors)
  • Intel® Wi-Fi 6E wireless connectivity and Bluetooth V5.2
  • Two M.2 connectors for storage devices
  • Multi-GPU support with AMD CrossFireX™ Technology
  • Supports memory overclocking up to 4600+ MHz and XMP
  • 8-channel high-definition audio
CPU
AMD Socket AM4 Ryzen™ Processors (3000, 4000, and 5000 Series Processors) Supported
AMD Ryzen™ 5 3400G and Ryzen™ 3200G Not Supported
Chipset
AMD® B550
Memory
DIMM Slots 4
Max Memory Support 128GB
Memory Architecture Dual-Channel
OC Frequency (Vermeer CPUs) 4666+ MHz
OC Frequency (Matisse CPUs) 4666+ MHz
OC Frequency (Renoir APUs) 4733+ MHz
Base Frequency 3200/ 2933/ 2667/ 2400/ 2133
Type ECC & non-ECC, un-buffered memory
XMP Support Supported
Integrated Graphics
AMD Radeon™ Vega Series Graphics in Ryzen Series APU HDMI
HDMI Max Resolution 4096x2160@60Hz
Max Shared Memory 16GB with 32GB installed
Microsoft PlayReady® Supported
Multi-GPU Support
AMD 2-Way CrossFireX™ Technology Supported
Expansion Slots
PCIe x16 (x16 mode) 1 (Vermeer & Matisse - PCIe 4.0, Renoir - PCIe 3.0)
PCIe x16 (x4 mode) 1
PCIe 3.0 x1 2
Storage (Chipset)
M.2 Type 2242/2260/2280 (x4 mode) 1 (Vermeer & Matisse - PCIe 4.0, Renoir - PCIe 3.0)
M.2 Type 2242/2260/2280 (PCIe 3.0 x2 & SATA mode) 1
SATA 6Gb/s 6* (M2_2 and SATA3_5_6 share lanes)
RAID 0/1/5/10 Support Supported
LAN
Realtek® RTL8125BG 2.5G
Wireless
Intel® Dual-Band Wireless AX210 Wi-Fi 6E
Protocol 802.11 a/b/g/n/ac/ax
Frequency Bands 2.4 / 5 / 6GHz
MU-MIMO Support Supported
Bluetooth V5.2
Audio
Realtek® ALC1220 Codec
Channels 8-Channel High Definition Audio
Playback 32-bit / 192kHz DAC
Capacitors Nichicon Fine Gold Series

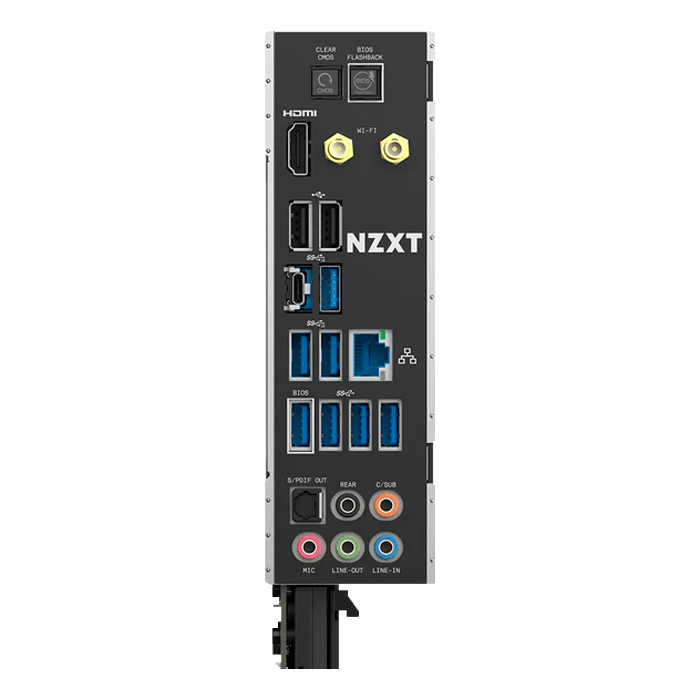

Rear I/O
USB 3.2 Gen 2 (Type-C) 1
USB 3.2 Gen 2 (Type-A) 3
USB 3.2 Gen 1 (Type-A) 4
USB 2.0 2
HDMI™ 2.1 1
Wireless Antenna 2 (2T2R)
LAN (RJ45) Port 1
5.1-Channel Audio Jacks 1
Optical S/PDIF 1
BIOS Flashback Button 1
Clear CMOS Button 1
Internal I/O
M.2 (M Key), Type 2242/2260/2280 1 (PCIe 4.0/3.0 x4 mode), 1 (PCIe 3.0 x2 & SATA mode)
M.2 (E Key) (For wireless cards) 1
SATA 6Gbps Ports 6
USB 3.2 Gen 2 Header (Type-C) 1
USB 3.2 Gen 1 Header 1 (Up to 2 ports)
USB 2.0 Header 3 (Up to 6 ports)
Front Panel Audio 1
CPU_FAN Connector 1 (Up to 24W)
AIO_PUMP Connector 1 (Up to 24W)
SYS_FAN Connector 5 (Up to 24W)
NZXT RGB LED Header 2
5V ARGB Header 1
12V RGB Header 1
24-pin EATX Power 1
8-pin ATX 12V Power 1
4-pin ATX 12V Power 1
Power Button 1
Reset Button 1
POST LEDs 4
General
Operating System Windows® 10 64-bit
Form Factor ATX
Warranty 3 years
Model Number N7-B55XT-B1
