N7 B650E, AMD B650 Chipset, AM5, ATX Motherboard

  • SKU: 15777232
  • Manufacturer: NZXT
  • MPN: N7-B65XT-B1
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At

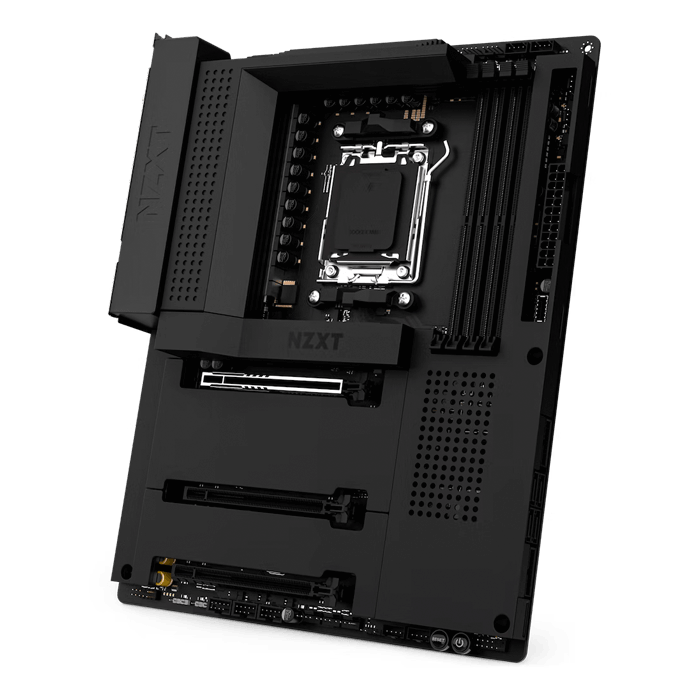

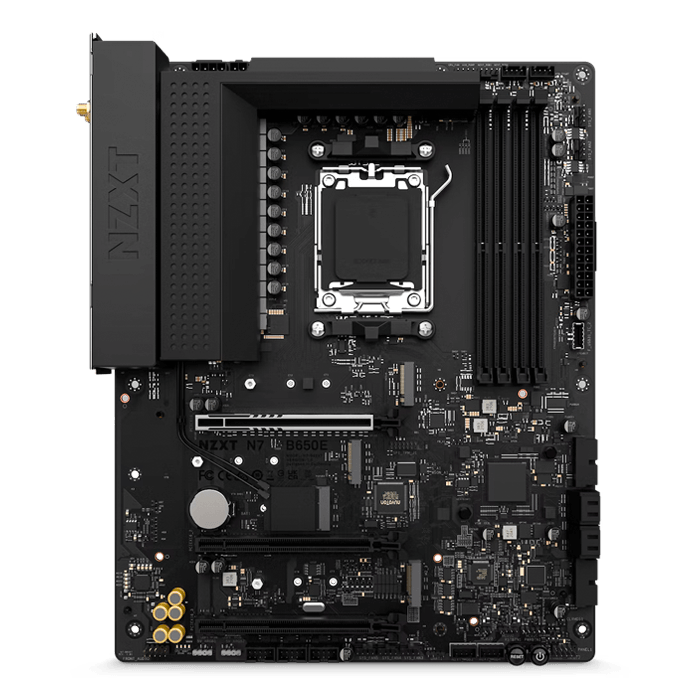

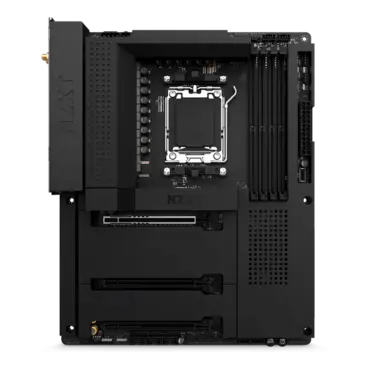

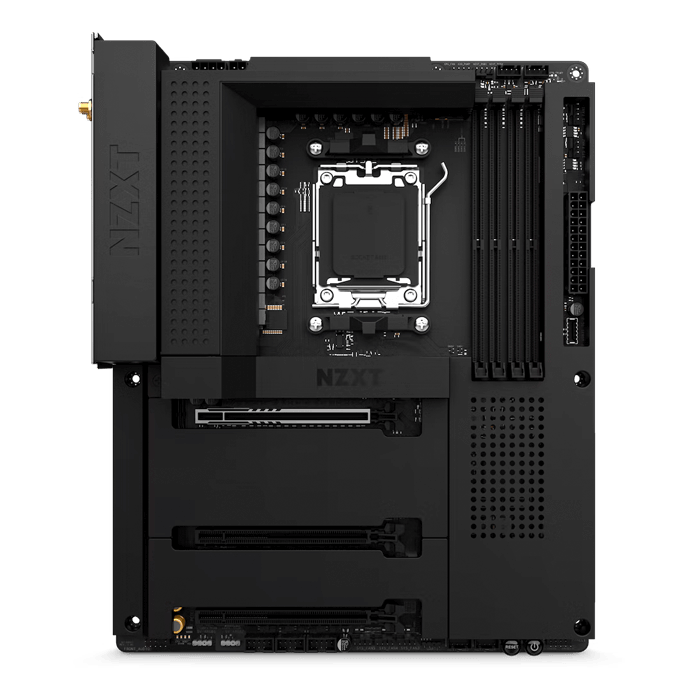

N7 B650E, AMD B650 Chipset, AM5, ATX Motherboard

This motherboard enables a visually seamless backdrop for any build with all the features of the reliable AMD B650E chipset.

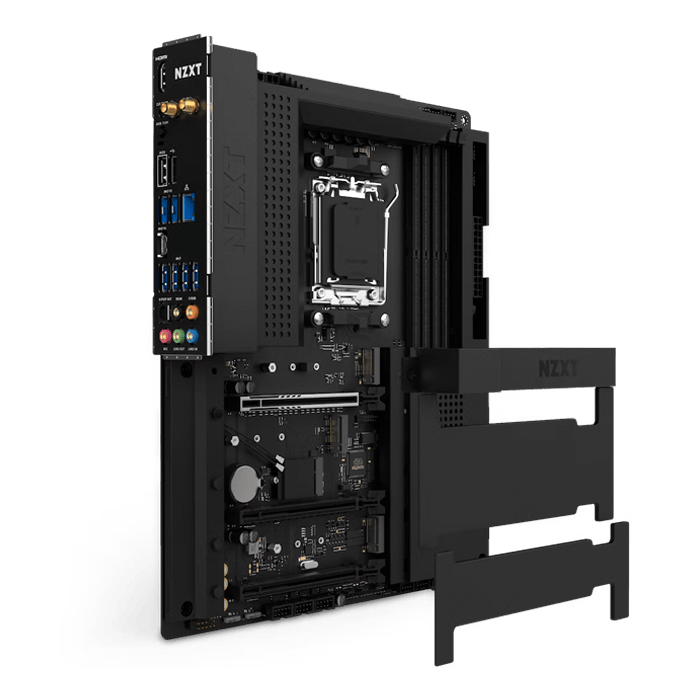

  • Seamless cover with integrated heat spreader
  • Digital RGB lighting control through CAM
  • Digital fan control for convenient fan profiles with seven independent fan channels

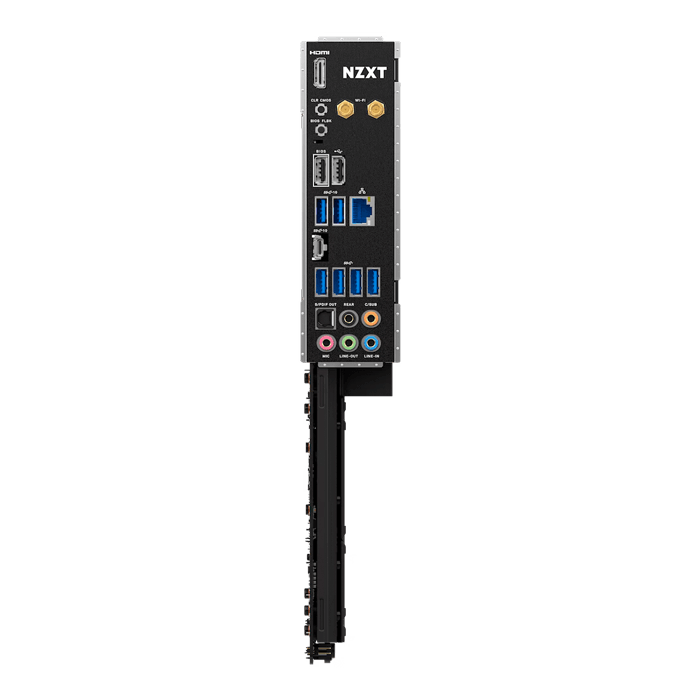

  • Integrated rear I/O shield and efficient layout
  • 16+2+1 Power phase design with 90A Smart Power Stage(SPS)
AMD Socket AM5 Ryzen™ 7000 Series Processors: Supported
AMD: B650
DIMM Slots: 4, DDR5 only
Max Memory Support: 128GB
Memory Architecture: Dual-Channel
OC Frequency: DDR5 Non-ECC, Un-buffered Memory up to 6000+ (OC). Please refer to Memory QVL on NZXT’s website ( for more information.
Extreme Memory Profile (XMP): Supported
EXTended Profiles for Overclocking (EXPO): Supported
PCIe 5.0 ×16 slot (PCIEX16_1), supports ×16 mode: 1 (Supports NVMe SSD as boot disks)
PCIe 4.0 ×16 slots (PCIEX16_2 and PCIEX16_3), support ×2 mode: 2 (Supports NVMe SSD as boot disks)
M.2 Socket (Key E), supports Type 2230 Wi-Fi/BT PCIe Wi-Fi module: 1
Integrated AMD RDNA™ 2 graphics: Supported
HDMI 2.1 TMD Compatible: 1
HDR: Supported
HDCP 2.3: max. resolution up to 4K 60Hz
M.2_1, Type 2242/2260/2280 (PCIe 5.0 ×4 mode): 1
M.2_2, Type 2242/2260/2280 (PCIe 4.0 ×4 mode): 1
M.2_3, Type 2242/2260/2280 (PCIe 4.0 ×2 mode): 1
SATA 6Gb/s ports: 4
RAID 0/1/10 for SATA storage devices: Supported
RAID 0/1/10 for M.2 NVMe storage devices: Supported
NVMe SSD as boot disks: Supported
Realtek®: RTL8125BG 2.5G LAN
802.11ax Wi-Fi 6E Module: Supported
Bluetooth: V5.2
Realtek®: ALC1220 Codec
Wireless antenna SMA connectors: 2
HDMI™ port: 1
USB 2.0: 2
USB 3.2 Gen 2 Type-C port: 1
USB 3.2 Gen 2 ports: 2
USB 3.2 Gen 1 ports: 4
Clear CMOS button: 1
BIOS Flashback button: 1
LAN (RJ45) port: 1
Audio jacks: 5
Optical S/PDIF Out port: 1
24-pin ATX power connector: 1
8+4-pin ATX 12V power connector: 1
4-pin CPU_FAN connector: 1
4-pin AIO_PUMP connector: 1
4-pin SYS_FAN connectors: 5
NZXT RGB LED connectors: 4
5V ARGB LED connector: 2
USB 2.0 header (Up to 6 USB 2.0 ports): 3
USB 3.2 Gen1 header (Up to 4 USB 3.2 Gen 1 ports): 2
USB 3.2 Gen2x2 front panel header (For USB Type-C): 1
Front panel audio connector: 1
Power button: 1
Reset button: 1
System Requirements: NZXT CAM software requires Microsoft Windows® 11/10 operating system.
Form Factor: ATX
Warranty: 3 years
Certifications: FCC, CE, WHQL, ErP/EuP Ready
Model Number: N7-B65XT-B1 (Black)
UPC: 810074842884 (Black)
EAN: 5056547202822 (Black)
