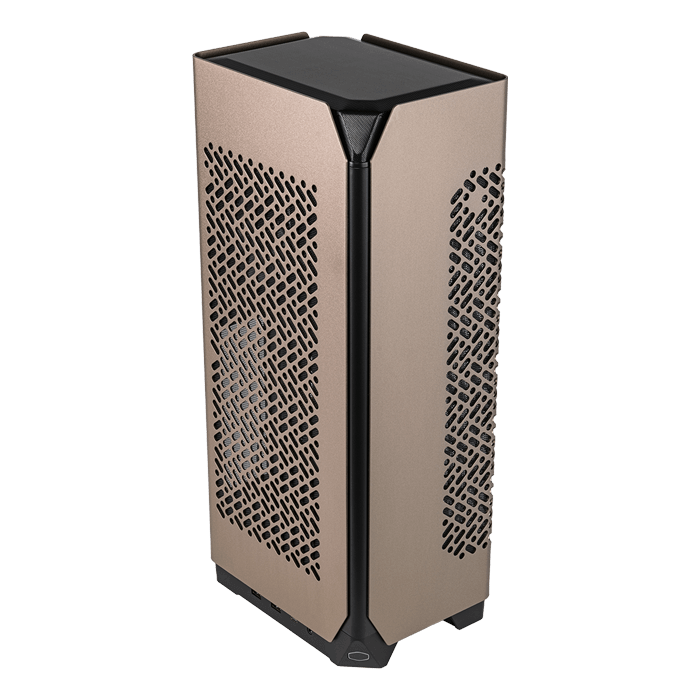

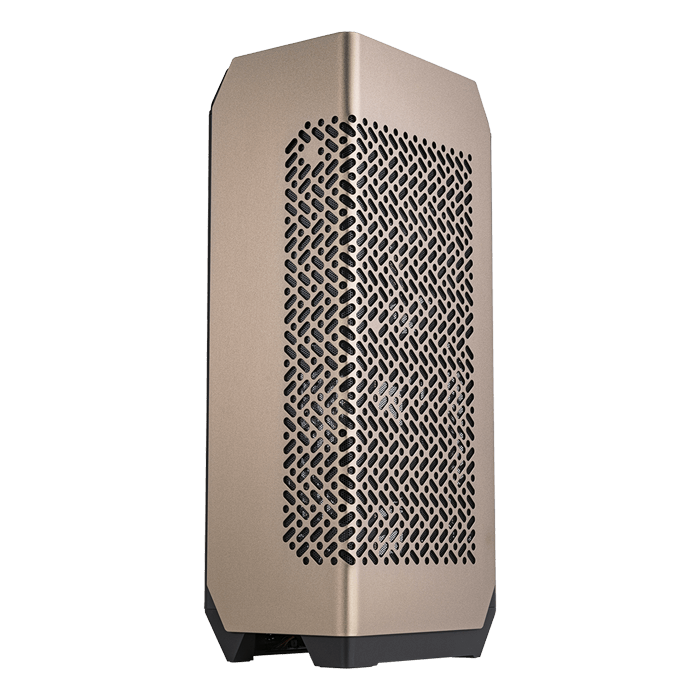

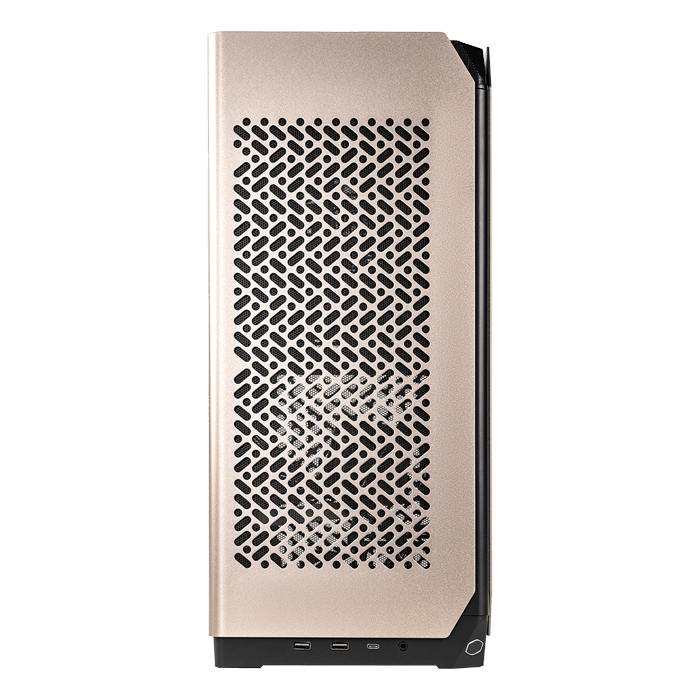

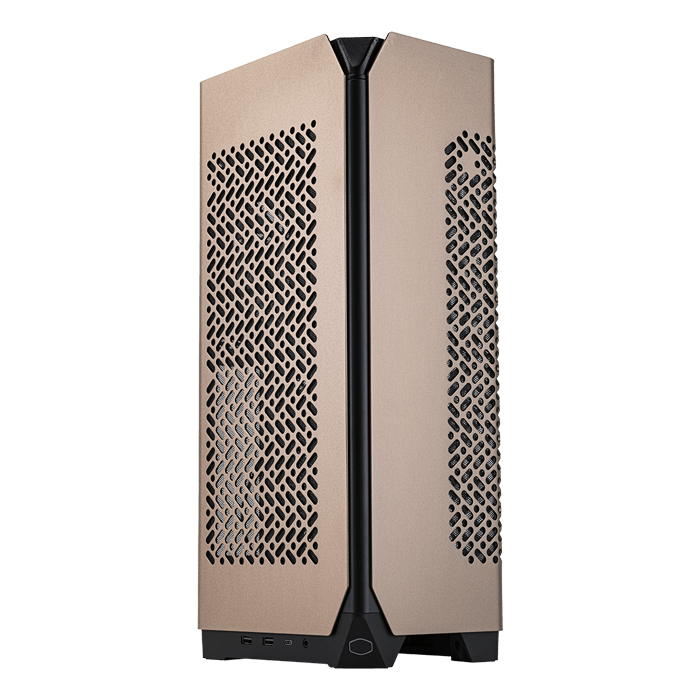

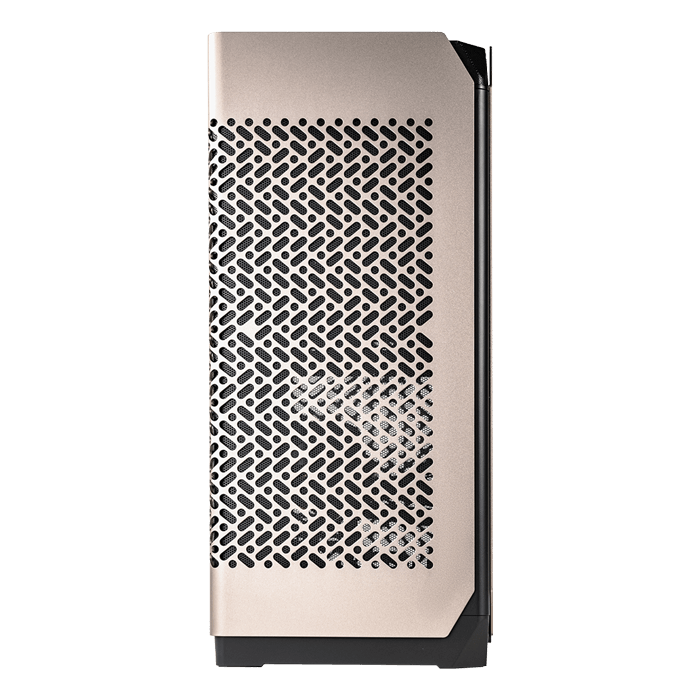

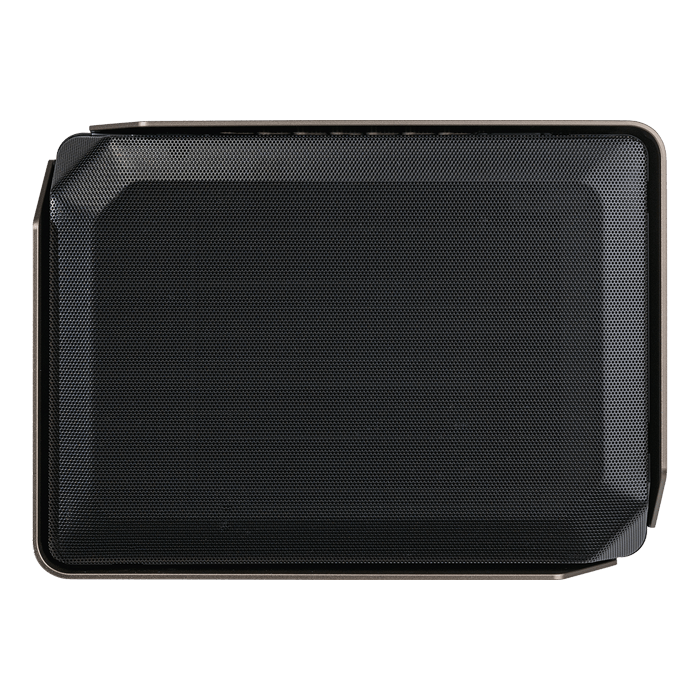

NCORE 100 MAX, AIO, 850W PSU, Mini-ITX, Bronze, Mini Tower Case

  • SKU: 17283985
  • Manufacturer: COOLER MASTER
  • MPN: NR100-ZNNN85-SL0
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
NCORE 100 MAX, AIO, 850W PSU, Mini-ITX, Bronze, Mini Tower Case

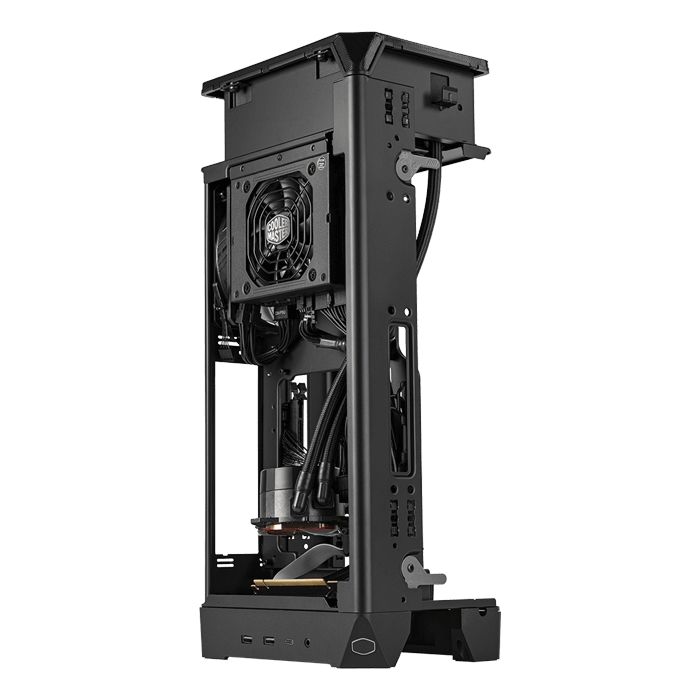

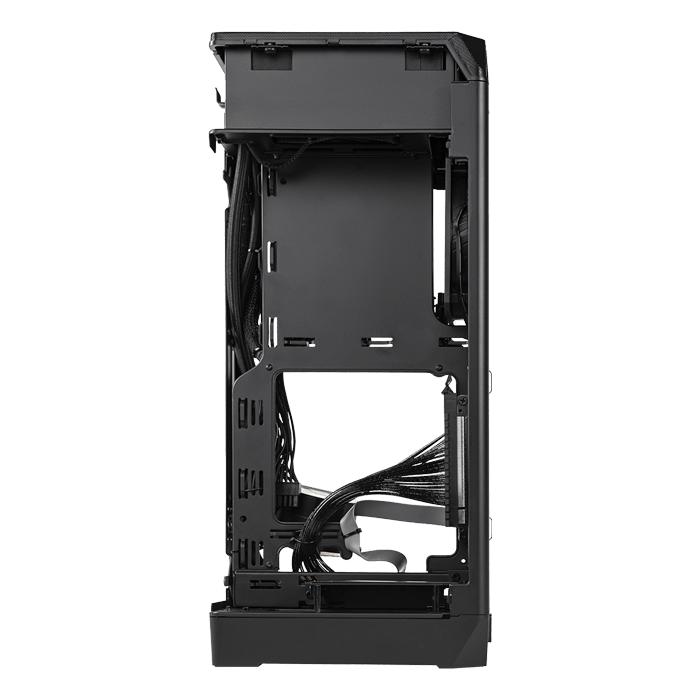

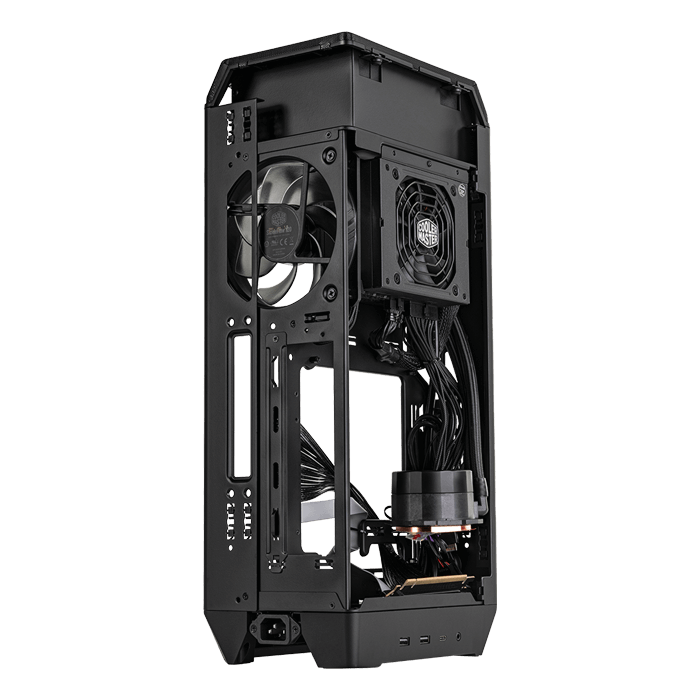

Discover the Ncore 100 MAX by Cooler Master: a compact, high-performance addition to the MAX series. It offers advanced cooling, power solutions, and a small form factor with anodized aluminum panels. Accommodating up to 3.9 Slot GPU, it ensures compatibility with the latest processors, delivering unparalleled performance without sacrificing design. Experience versatility, compatibility and peak performance with the sleek, space-saving Ncore 100 MAX. Elevate your setup today!

Product Number NCORE 100 MAX: NR100-MNNN85-SL0, NCORE 100 MAX Bronze Edition: NR100-ZNNN85-SL0
Exterior Color NCORE 100 MAX: Dark grey, NCORE 100 MAX Bronze Edition: Bronze
Materials - Exterior Steel, Plastic, Aluminum
Materials - Side Panel Aluminum
Dimensions (L x W x H) Normal mode: 155mm x 212mm x 481mm (Incl. Protrusions), Expansion mode: 172mm x 212mm x 481mm (Incl. Protrusions), 155mm x 212mm x 457mm (Excl. Protrusions), 172mm x 212mm x 457mm (Excl. Protrusions)
Volume NCORE 100 MAX: 15.80L, NCORE 100 MAX Bronze Edition: 17.54L
Motherboard Support ITX
Expansion Slots 3x PCIe Slot mounting
Drive Bays - 2.5" SSD 1
I/O Panel 2x USB 3.2 Gen1 Type A, 1x USB 3.2 Gen2 x 2 Type C, 1x Audio Combo (Audio In / Out 3.5mm)
Included Accessories 1x 240mm PCIe 4.0 x16
Included CPU Cooling Solution 120mm Radiator with 38mm Thickness x 1 (Custom PWM Fan Max. 2400RPM)
Included Power Supply Unit V SFX Gold 850W ATX 3.0
Pre-installed Fan(s) - Rear 120mm SickleFlow PWM Fan x1 (Max. 1800RPM)
Clearances - CPU Cooler 48mm
Clearances - Power Supply 100mm
Clearances - RAM 48mm
Clearances - Graphics Card 337mm x 62mm x 180mm (Normal, 3.0 Slot thick), 357mm x 79mm x 180mm (Expansion, 3.9 Slot thick), (Maximum space including GPU power connector)
Cable Routing - Behind MB Tray 11mm
Dust Filters Side panels
Power Supply Support SFX
Warranty 2 years (Case), 2 years (Thermal Solution), 10 years (Power Delivery)
