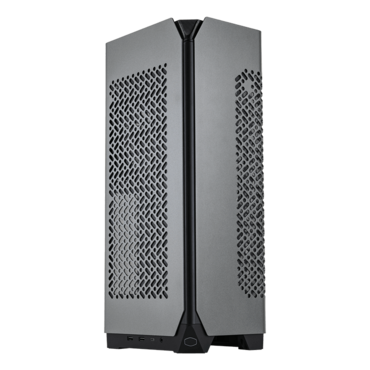

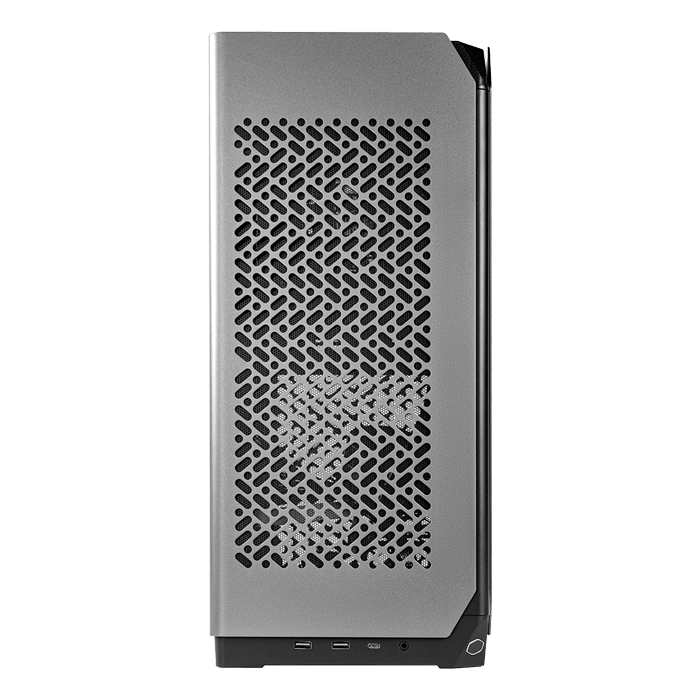

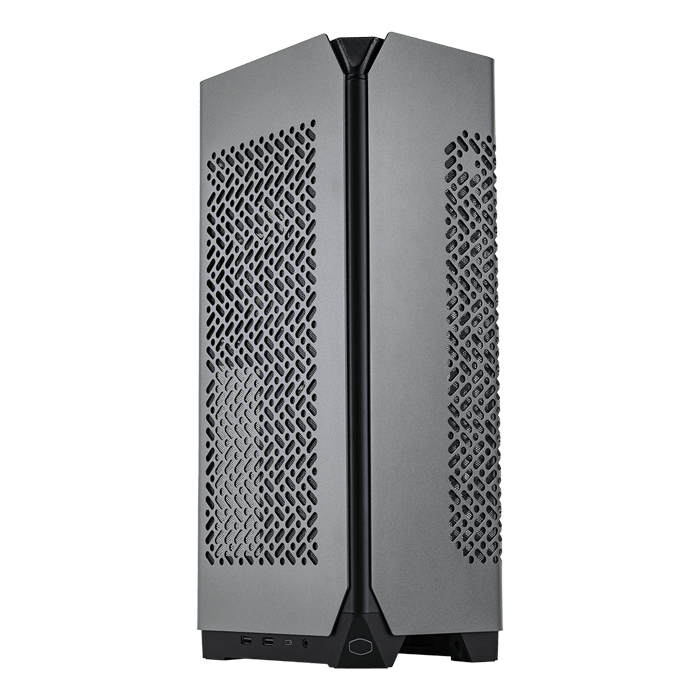

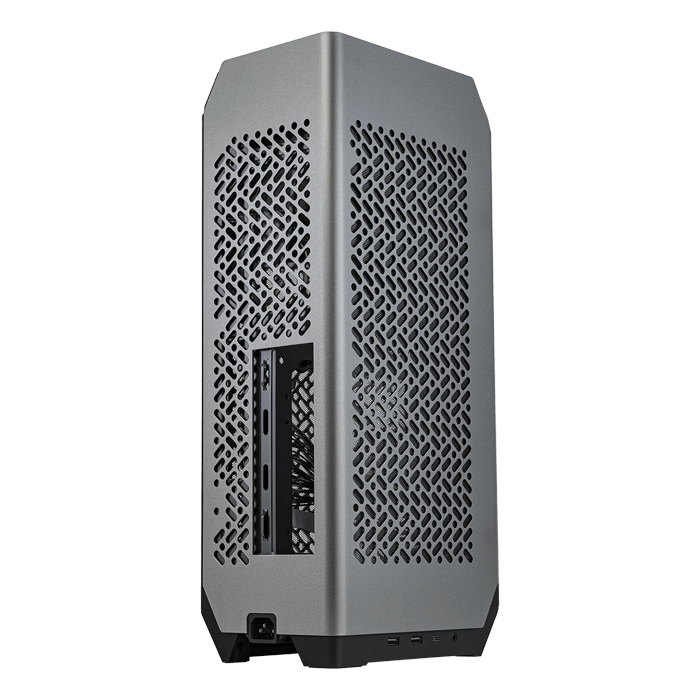

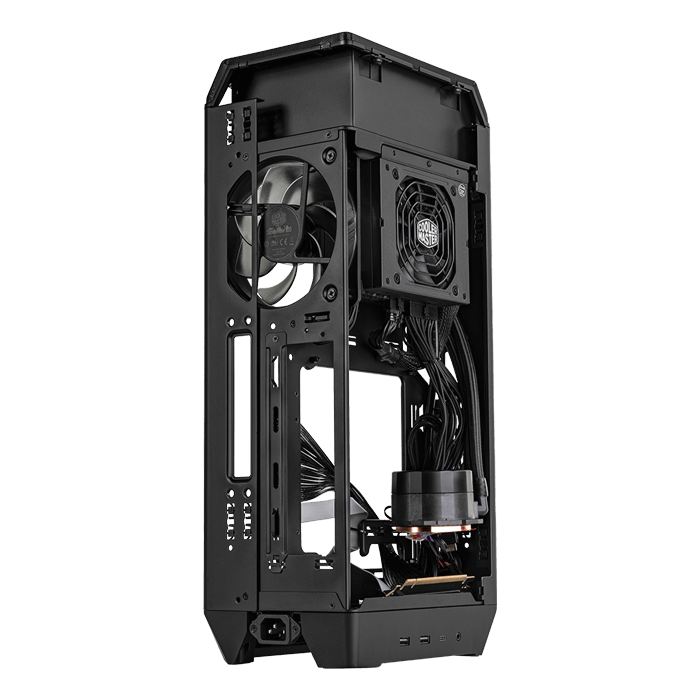

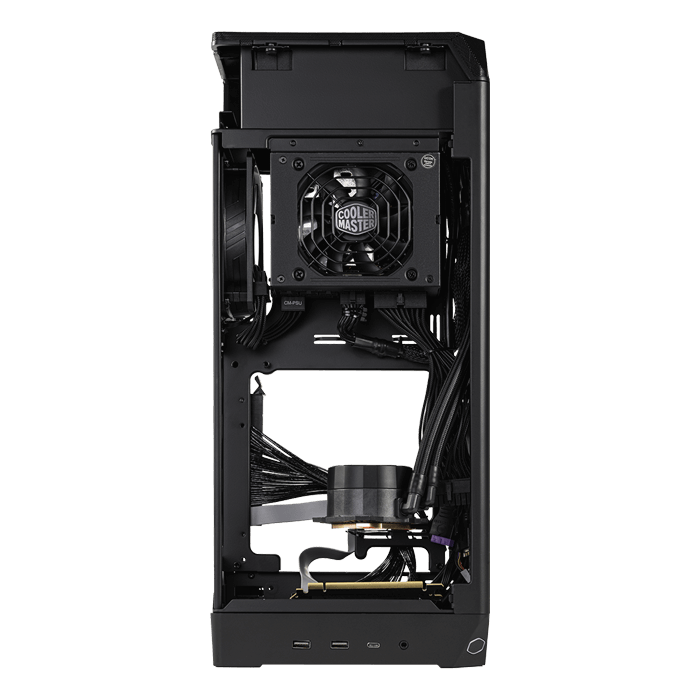

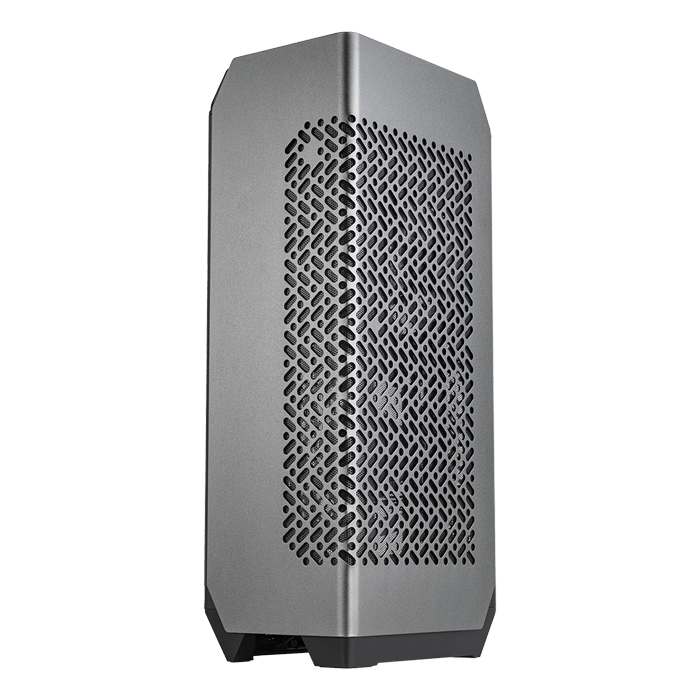

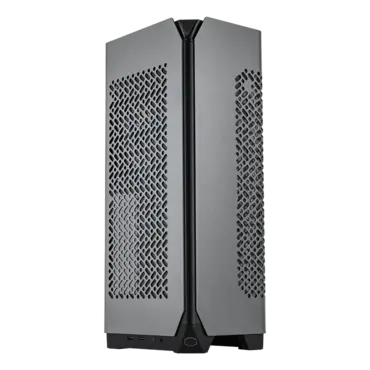

NCORE 100 MAX, AIO, 850W PSU, Mini-ITX, Dark Grey, Mini Tower Case
Quantity:
- SKU: 17283375
- Manufacturer: COOLER MASTER
- MPN: NR100-MNNN85-SL0
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$401.33
NCORE 100 MAX, AIO, 850W PSU, Mini-ITX, Dark Grey, Mini Tower Case
THE COMPACT CASE FOR POWERFUL PC
Discover the Ncore 100 MAX by Cooler Master: a compact, high-performance addition to the MAX series. It offers advanced cooling, power solutions, and a small form factor with anodized aluminum panels. Accommodating up to 3.9 Slot GPU, it ensures compatibility with the latest processors, delivering unparalleled performance without sacrificing design. Experience versatility, compatibility and peak performance with the sleek, space-saving Ncore 100 MAX. Elevate your setup today!
| Product Number | NCORE 100 MAX: NR100-MNNN85-SL0, NCORE 100 MAX Bronze Edition: NR100-ZNNN85-SL0 |
| Exterior Color | NCORE 100 MAX: Dark grey, NCORE 100 MAX Bronze Edition: Bronze |
| Materials - Exterior | Steel, Plastic, Aluminum |
| Materials - Side Panel | Aluminum |
| Dimensions (L x W x H) | Normal mode: 155mm x 212mm x 481mm (Incl. Protrusions), Expansion mode: 172mm x 212mm x 481mm (Incl. Protrusions), 155mm x 212mm x 457mm (Excl. Protrusions), 172mm x 212mm x 457mm (Excl. Protrusions) |
| Volume | NCORE 100 MAX: 15.80L, NCORE 100 MAX Bronze Edition: 17.54L |
| Motherboard Support | ITX |
| Expansion Slots | 3x PCIe Slot mounting |
| Drive Bays - 2.5" SSD | 1 |
| I/O Panel | 2x USB 3.2 Gen1 Type A, 1x USB 3.2 Gen2 x 2 Type C, 1x Audio Combo (Audio In / Out 3.5mm) |
| Included Accessories | 1x 240mm PCIe 4.0 x16 |
| Included CPU Cooling Solution | 120mm Radiator with 38mm Thickness x 1 (Custom PWM Fan Max. 2400RPM) |
| Included Power Supply Unit | V SFX Gold 850W ATX 3.0 |
| Pre-installed Fan(s) - Rear | 120mm SickleFlow PWM Fan x1 (Max. 1800RPM) |
| Clearances - CPU Cooler | 48mm |
| Clearances - Power Supply | 100mm |
| Clearances - RAM | 48mm |
| Clearances - Graphics Card | 337mm x 62mm x 180mm (Normal, 3.0 Slot thick), 357mm x 79mm x 180mm (Expansion, 3.9 Slot thick), (Maximum space including GPU power connector) |
| Cable Routing - Behind MB Tray | 11mm |
| Dust Filters | Side panels |
| Power Supply Support | SFX |
| Warranty | 2 years (Case), 2 years (Thermal Solution), 10 years (Power Delivery) |
