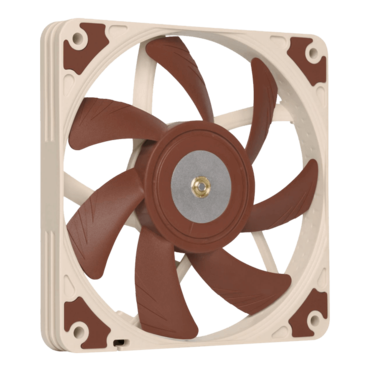

NF-A12x15 FLX 120mm, 1850 RPM, 55.5 CFM, 23.9 dBA, Cooling Fan
- SKU: 14433030
- Manufacturer: NOCTUA
- MPN: NF-A12x15 FLX
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$36.98
NF-A12x15 FLX 120mm, 1850 RPM, 55.5 CFM, 23.9 dBA, Cooling Fan
Featuring advanced aerodynamic design measures such as Flow Acceleration Channels and Noctua’s AAO frame, the NF-A12x15 is a highly optimised, premium quality quiet fan in size 120x15mm. Its 15mm slim design makes the NF-A12x15 ideal for space-restricted applications such as low-profile CPU coolers or HTPC cases. The FLX version provides 1850/1400/950rpm speed settings via the supplied Low-Noise Adaptors in order to allow full flexibility in fine-tuning the fan for maximum ventilation performance or near-silent operation. Its superb running smoothness, reference-class SSO2 bearing and Noctua’s trusted premium quality make it an elite choice for the highest demands.
- Premium quiet slim fan, 120x120x15 mm, 12V, 3-pin Molex, 1850/1400/950 RPM, max. 23.9 dB(A), >150,000 h MTTF
- Award-winning A-series design with Flow Acceleration Channels and Advanced Acoustic Optimisation frame for superior quiet cooling performance
- 120x15mm slim design ideal for low-profile CPU coolers, HTPCs, ITX builds, space-restricted applications etc.
- 3-pin FLX version provides 1850/1400/950rpm speed settings via Low-Noise Adaptors to fine-tune the fan for maximum airflow or near-silent operation
- Includes anti-vibration mounts, fan screws, extension cable and 3:4-pin adaptor for powering the fan directly from the power supply
| FAN Specification | |
| Size | 120x120x15 mm |
| Mounting hole spacing | 105x105 mm |
| Connector & pin-configuration | 3-pin |
| Cable length | 20cm + 30cm NA-EC1 extension cable |
| Bearing | SSO2 |
| Blade geometry | A-Series with Flow Acceleration Channels |
| Frame technology | AAO (Advanced Acoustic Optimisation) |
| Rotational speed (+/- 10%) | 1850 RPM |
| Rotational speed with L.N.A. (+/- 10%) | 1400 RPM |
| Rotational Speed with U.L.N.A. (+/- 10%) | 950 RPM |
| Airflow | 94,2 m³/h |
| Airflow with L.N.A. | 70,8 m³/h |
| Airflow with U.L.N.A. | 46,5 m³/h |
| Acoustical noise | 23,9 dB(A) |
| Acoustical noise with L.N.A. | 16,8 dB(A) |
| Acoustical noise with U.L.N.A. | 10,2 dB(A) |
| Static pressure | 1,53 mm H2O |
| Static pressure with L.N.A. | 0,9 mm H2O |
| Static pressure with U.L.N.A. | 0,45 mm H2O |
| Max. input power | 1,56 W |
| Max. input current | 0,13 A |
| Operating voltage | 12 V |
| MTTF | > 150.000 h |
| Scope of delivery |
|
| Warranty | 6 years |
