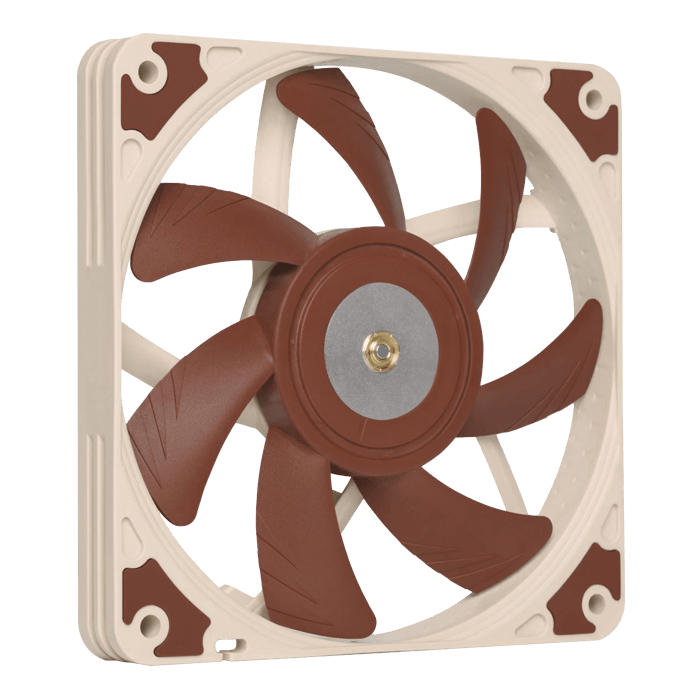

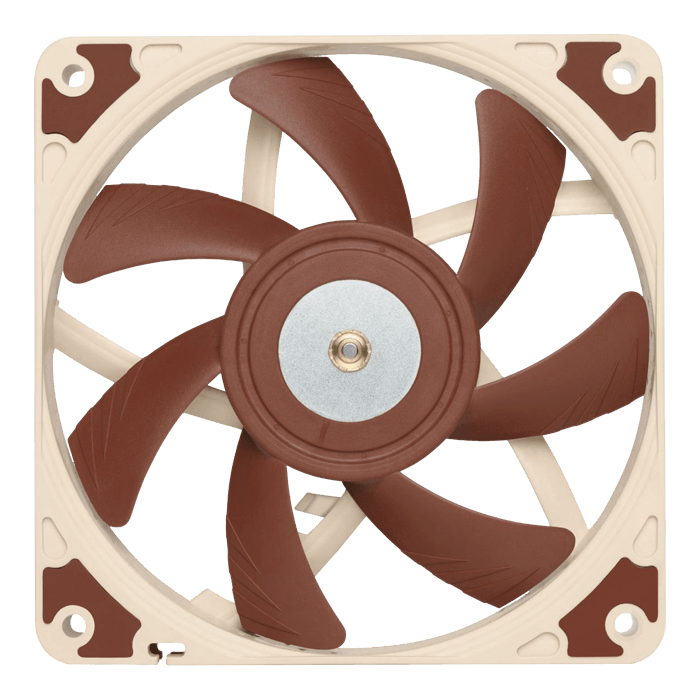

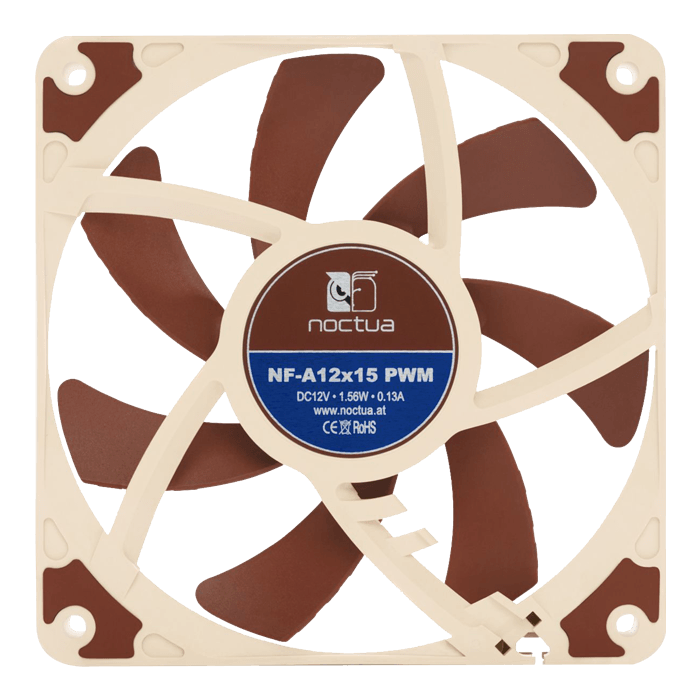

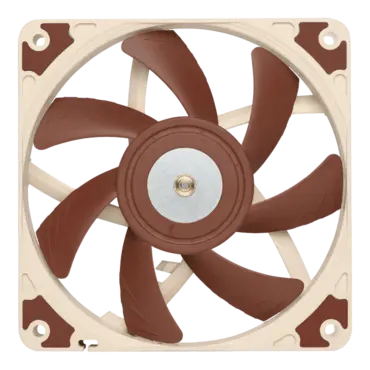

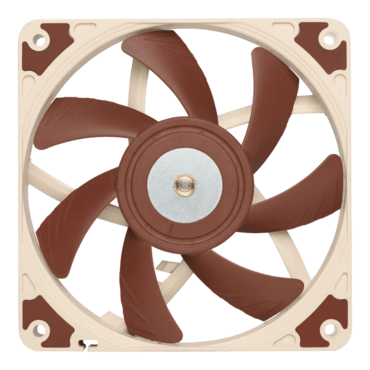

NF-A12x15 PWM, 120mm, 1850 RPM, 55.5 CFM, 23.9 dBA, Cooling Fan
Quantity:
- SKU: 13652516
- Manufacturer: NOCTUA
- MPN: NF-A12x15 PWM
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$32.74
| Size | 120x120x15 mm |
| Mounting hole spacing | 105x105 mm |
| Connector & pin-configuration | 4-pin PWM |
| Cable length | 20cm + 30cm NA-EC1 extension cable |
| Bearing | SSO2 |
| Blade geometry | A-Series with Flow Acceleration Channels |
| Frame technology | AAO (Advanced Acoustic Optimisation) |
| Rotational speed (+/- 10%) | 1850 RPM |
| Rotational speed with L.N.A. (+/- 10%) | 1400 RPM |
| Min. rotational speed (PWM, +/-20%) | 450 RPM |
| Airflow | 94,2 m³/h |
| Airflow with L.N.A. | 70,8 m³/h |
| Acoustical noise | 23,9 dB(A) |
| Acoustical noise with L.N.A. | 16,8 dB(A) |
| Static pressure | 1,53 mm H2O |
| Static pressure with L.N.A. | 0,9 mm H2O |
| Max. input power | 1,56 W |
| Max. input current | 0,13 A |
| Operating voltage | 12 V |
| Voltage PWM signal | 5 V |
| MTTF | > 150.000 h |
| Scope of delivery |
|
| Warranty | 6 years |
