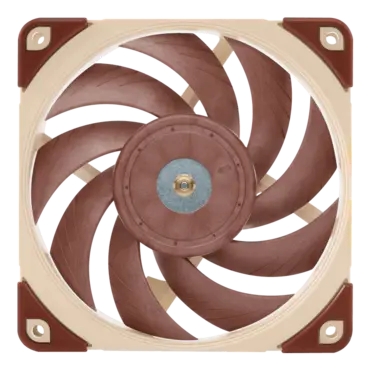

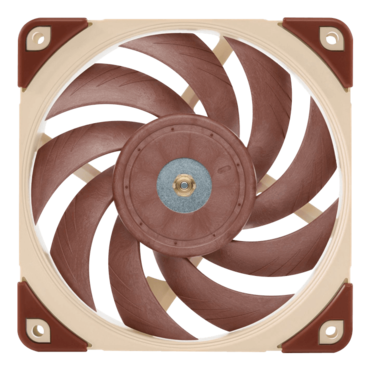

The NF-A12x25 5V PWM is a PWM-enabled 5V variant of Noctua’s award-winning, premium-quality NF-A12x25 120mm fan. Featuring an AAO (Advanced Acoustic Optimisation) standard frame and sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A12x25 is renowned for its superior performance and outstanding quietness of operation. Smooth Commutation Drive technology and Noctua’s reference class SSO2 bearing guarantee superb running smoothness and excellent long-term stability. Topped off with the included USB power adaptor cable, OmniJoin™ adaptor set and 6-year manufacturer’s warranty, the NF-A12x25 5V PWM is a premium choice for demanding 5V applications that require PWM control.
FAN Specification | |
Size | 120x120x25 mm |
Mounting hole spacing | 105x105 mm |
Connector & pin-configuration | 4-pin PWM |
Cable length | 20cm + 30cm NA-EC1 extension cable |
Bearing | SSO2 |
Blade geometry | A-Series with Flow Acceleration Channels |
Frame technology | AAO (Advanced Acoustic Optimisation) |
Material | Sterrox® LCP |
Rotational speed (+/- 10%) | 1900 RPM |
Min. rotational speed (PWM, +/-20%) | 450 RPM |
Airflow | 96,2 m³/h |
Acoustical noise | 21,4 dB(A) |
Static pressure | 2,07 mm H2O |
Max. input power | 1,75 W |
Max. input current | 0,35 A |
Operating voltage | 5 V |
Voltage PWM signal | 5 V |
MTTF | > 150.000 h |
Scope of delivery |
|
Warranty | 6 years |
