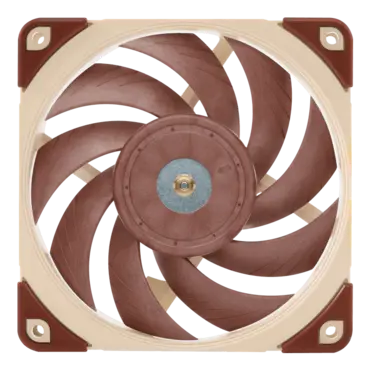

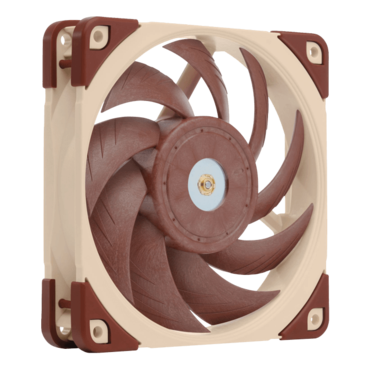

The NF-A12x25 is a highly optimised next-generation 120mm fan that integrates Noctua’s latest innovations in aerodynamic engineering in order to achieve an unprecedented level of quiet cooling performance. It takes state-of-the-art technologies such as the AAO (Advanced Acoustic Optimisation) frame or Flow Acceleration Channels and combines them with a record tight tip clearance of only 0.5mm, which is made possible by using the novel Sterrox® liquid-crystal polymer (LCP) compound as well as a metal-reinforced motor hub and axis for ultimate precision. Following the approach of Noctua’s A-series, the NF-A12x25 is a true all-rounder that yields superb results in all types of usage, regardless of whether it’s in low-impedance, airflow-oriented applications such as case cooling, or high-impedance, pressure-demanding scenarios such as on heatsinks and watercooling radiators. The 3-pin FLX version provides 2000/1700/1350rpm speed settings via the supplied Low-Noise Adaptors so as to give full flexibility in configuring the fan for maximum cooling capacity or near-silent acoustics. Topped off with exceptional running smoothness, Noctua’s reference-class SSO2 bearing, a rich bundle of accessories and 6-year manufacturer’s warranty, the NF-A12x25 is a premium-quality product through and through. Its superior efficiency, cutting-edge construction and pioneering materials make it an elite choice for the most discerning demands.
- Premium quiet fan, 120x120x25mm, 12V, 3-pin Molex, 2000/1700/1350 RPM, max. 22.6 dB(A), >150,000 h MTTF
- Next-generation 120x25mm A-series design provides unprecedented quiet cooling performance, ideal for CPU coolers and watercooling radiators
- State-of-the-art engineering (AAO frame, Flow Acceleration Channels, record tight 0.5mm tip clearance) and construction (Sterrox LCP material, metal-reinforced hub, metal bearing shell, etc.)
- 3-pin FLX version provides 2000/1700/1350rpm speed settings via Low-Noise Adaptors to fine-tune the fan for maximum airflow or near-silent operation
- Includes anti-vibration mounts, radiator gasket, fan screws, extension cable and 3:4-pin adaptor for powering the fan directly from the power supply
FAN Specification | |
Size | 120x120x25 mm |
Mounting hole spacing | 105x105 mm |
Connector & pin-configuration | 3-pin |
Cable length | 20cm + 30cm NA-EC1 extension cable |
Bearing | SSO2 |
Blade geometry | A-Series with Flow Acceleration Channels |
Frame technology | AAO (Advanced Acoustic Optimisation) |
Material | Sterrox® LCP |
Rotational speed (+/- 10%) | 2000 RPM |
Rotational speed with L.N.A. (+/- 10%) | 1700 RPM |
Rotational Speed with U.L.N.A. (+/- 10%) | 1350 RPM |
Airflow | 102,1 m³/h |
Airflow with L.N.A. | 84,5 m³/h |
Airflow with U.L.N.A. | 64,5 m³/h |
Acoustical noise | 22,6 dB(A) |
Acoustical noise with L.N.A. | 18,8 dB(A) |
Acoustical noise with U.L.N.A. | 14,2 dB(A) |
Static pressure | 2,34 mm H2O |
Static pressure with L.N.A. | 1,65 mm H2O |
Static pressure with U.L.N.A. | 1,05 mm H2O |
Max. input power | 1,68 W |
Max. input current | 0,14 A |
Operating voltage | 12 V |
MTTF | > 150.000 h |
Scope of delivery |
|
Warranty | 6 years |
