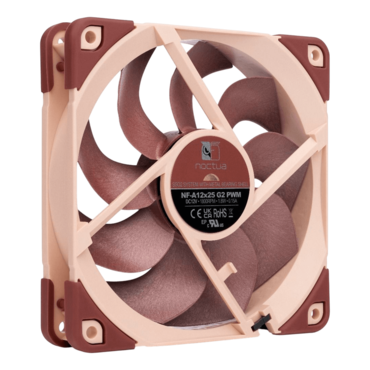

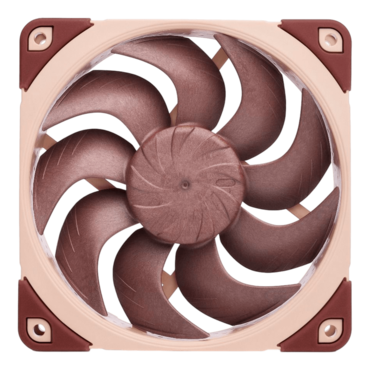

NF-A12x25 G2 PWM 120mm, 1800 RPM, 107.3 CFM, 22.5 dBA, Cooling Fan
- SKU: 19292697
- Manufacturer: NOCTUA
- MPN: NF-A12x25 G2 PWM
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$49.61
- NF-A12x25 G2 performance: improvements for heatsinks, radiators and case
- Aerodynamic design innovations: the keys to the superior performance of the NF-A14x25(r) G2 and NF-A12x25 G2
- etaPERF™ motor: new standards in energy efficiency
- SupraTorque™: leveraging torque headroom to boost pressure performance
- Fan speed offset: Beat frequency theory and how to further optimise acoustics
| Size | 120x120x25 mm |
| ounting hole spacing | 105x105 mm |
| Connector & pin-configuration | 4-pin PWM |
| Cable length | 20cm + 30cm NA-EC1 extension cable |
| Bearing | SSO2 |
| Blade geometry | Progressive-Bend Impeller |
| Frame technology | AAO (Advanced Acoustic Optimisation) |
| aterial | Sterrox® LCP |
| Rotational speed (+/- 10%) | 1800 RPM |
| Rotational speed with L.N.A. (+/- 10%) | 1500 RPM |
| Airflow | 107.3 m³/h |
| Airflow with L.N.A. | 87.2 m³/h |
| Acoustical noise | 22.5 dB(A) |
| Acoustical noise with L.N.A. | 18.1 dB(A) |
| Static pressure | 3.14 mm H2O |
| Static pressure with L.N.A. | 1.71 mm H2O |
| Input power (max.) | 1.8 W |
| ax. input current | 0.15 A |
| Operating voltage | 12 V |
| TTF | > 150,000 h |

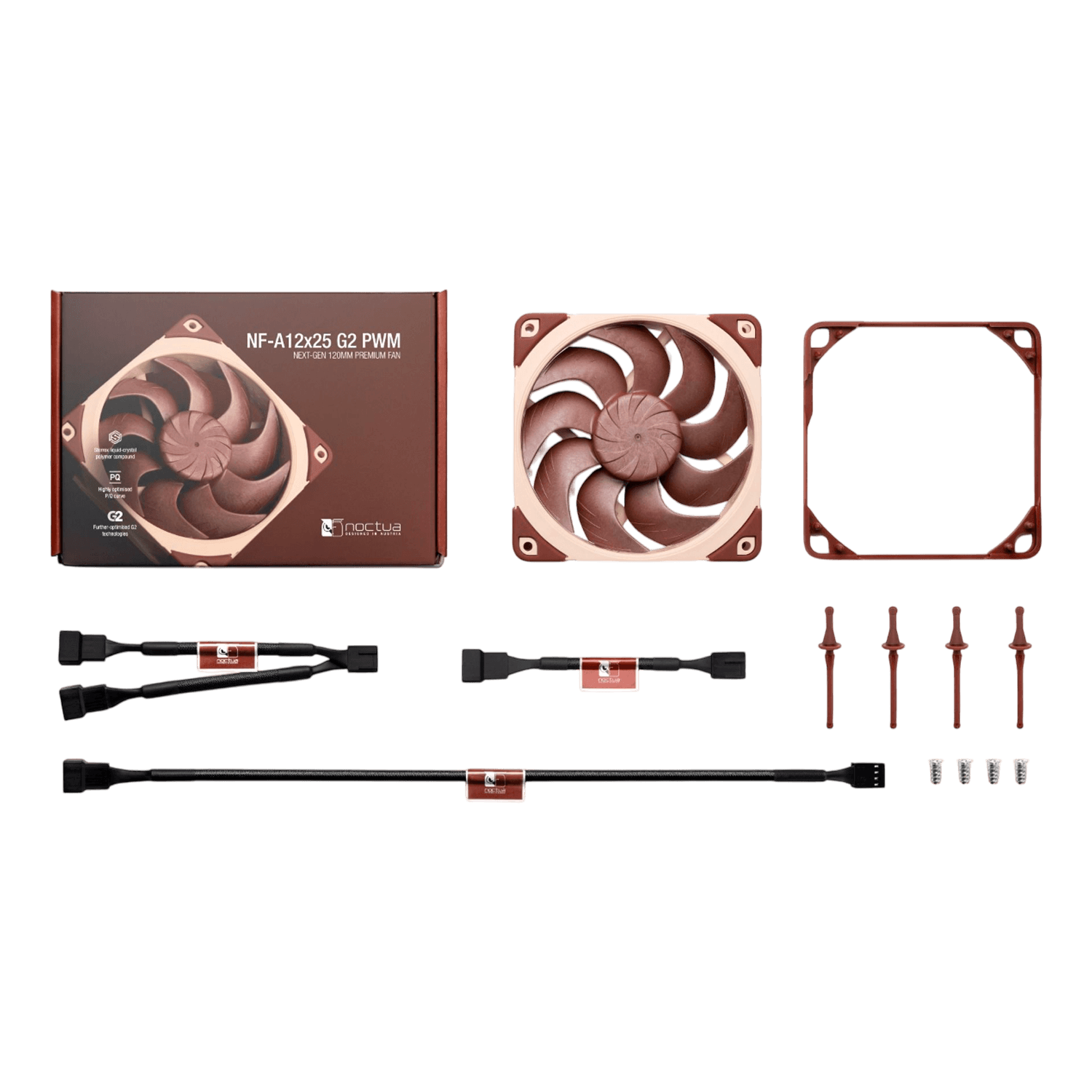

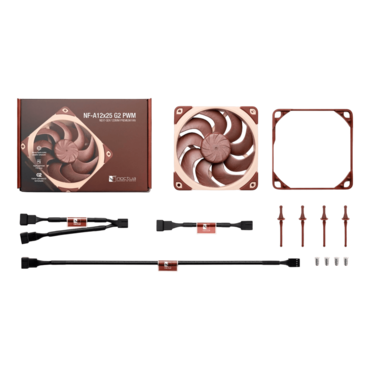

| Scope of delivery |
|
| Warranty | 6 years |
