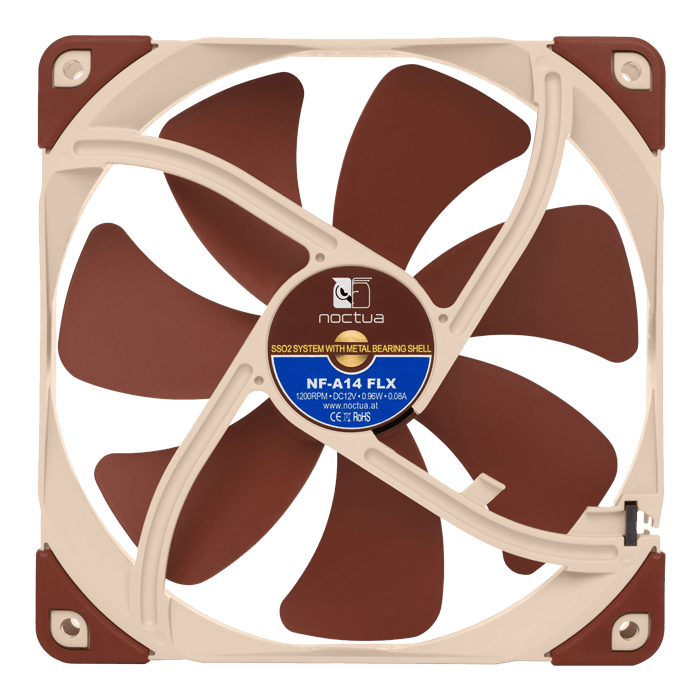

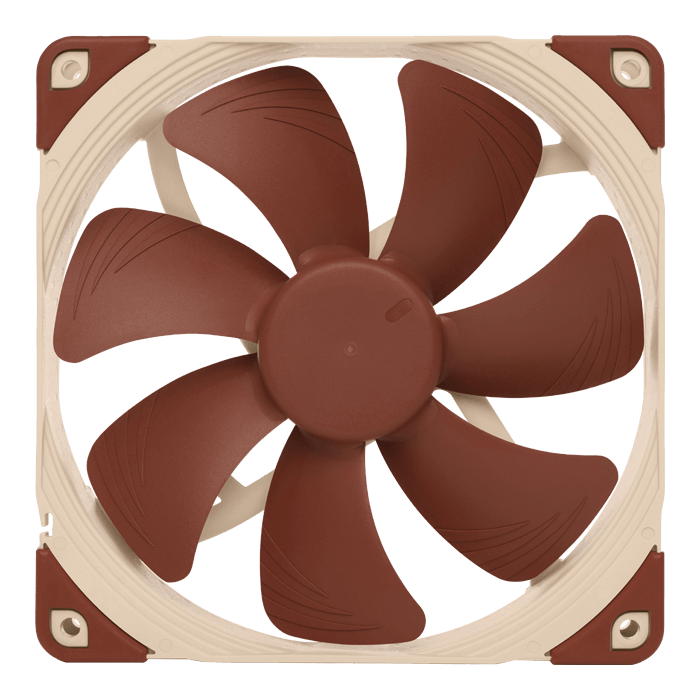

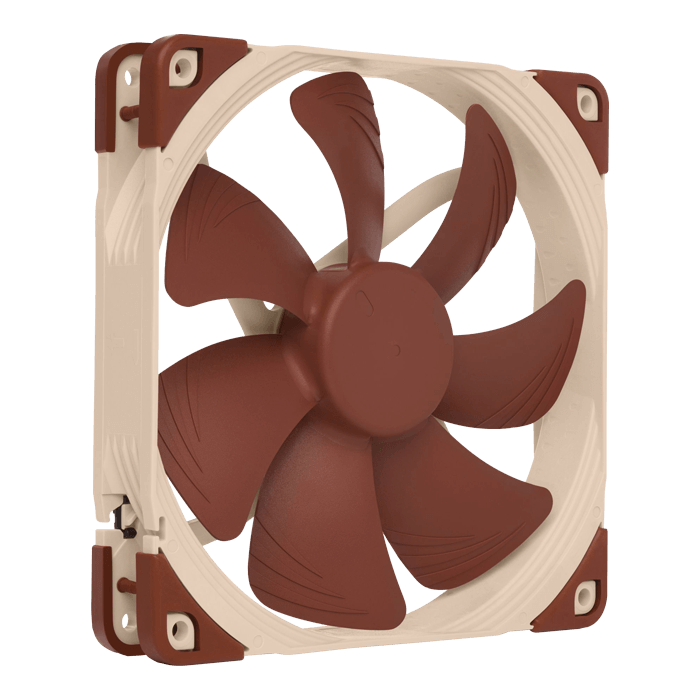

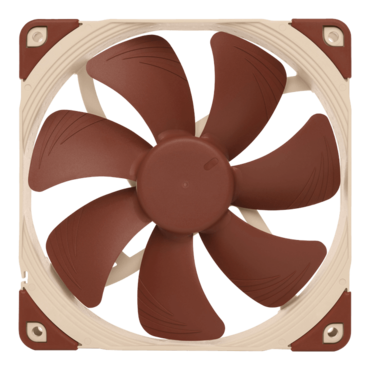

NF-A14 FLX 140mm, 1200 RPM, 68.0 CFM, 19.2 dBA, Cooling Fan
- SKU: 7979501
- Manufacturer: NOCTUA
- MPN: NF-A14 FLX
- Availability: LOW STOCK
Price
$38.36
| Size | 140x140x25 mm |
| Mounting hole spacing | 124,5x124,5 mm |
| Connector & pin-configuration | 3-pin |
| Cable length | 20cm + 30cm NA-EC1 extension cable |
| Bearing | SSO2 |
| Blade geometry | A-Series with Flow Acceleration Channels |
| Frame technology | AAO (Advanced Acoustic Optimisation) |
| Rotational speed (+/- 10%) | 1200 RPM |
| Rotational speed with L.N.A. (+/- 10%) | 1050 RPM |
| Rotational Speed with U.L.N.A. (+/- 10%) | 900 RPM |
| Airflow | 115,5 m³/h |
| Airflow with L.N.A. | 101,9 m³/h |
| Airflow with U.L.N.A. | 88,7 m³/h |
| Acoustical noise | 19,2 dB(A) |
| Acoustical noise with L.N.A. | 16,4 dB(A) |
| Acoustical noise with U.L.N.A. | 13,8 dB(A) |
| Static pressure | 1,51 mm H2O |
| Static pressure with L.N.A. | 1,18 mm H2O |
| Static pressure with U.L.N.A. | 0,89 mm H2O |
| Max. input power | 0,96 W |
| Max. input current | 0,08 A |
| Operating voltage | 12 V |
| MTTF | > 150.000 h |
| Scope of delivery |
|
| Warranty | 6 years |
