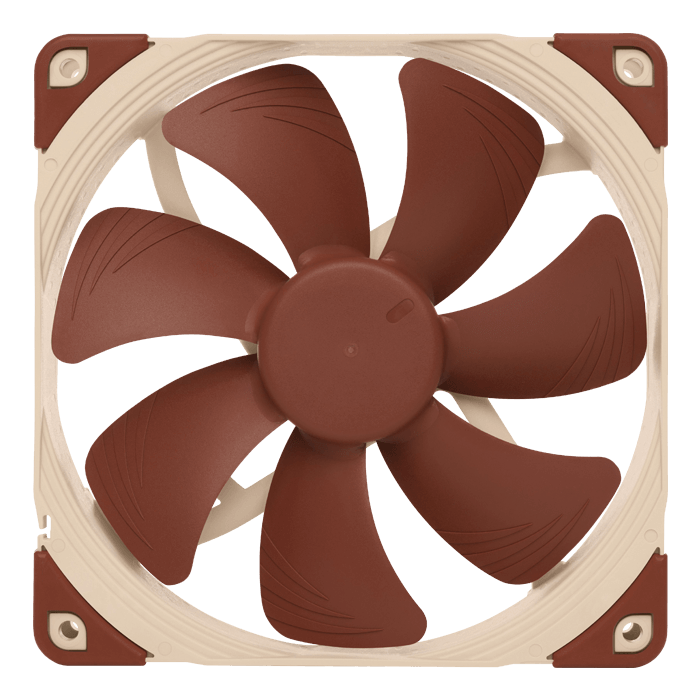

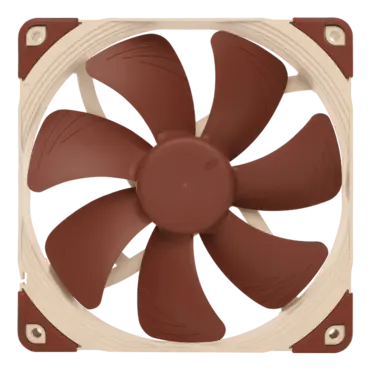

NF-A14 ULN 140mm, 800 RPM, 47.0 CFM, 11.9 dBA, Cooling Fan
- SKU: 14429007
- Manufacturer: NOCTUA
- MPN: NF-A14 ULN
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
The NF-A14 is a premium quality quiet 140mm fan with a square frame that complies with Noctua’s AAO (Advanced Acoustic Optimisation) standard. Its square shape and 140mm mounting holes (124.5mm spacing) make it ideal for use on watercooling radiators or as an upgrade for 140mm case fans. Featuring sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A14 further improves the renowned quiet cooling performance of the award-winning NF-P14. The ULN version provides super-slow 800/650rpm speed settings for ultra-low-noise applications and highly noise sensitive users who demand near-silent operation. Its superb running smoothness, reference-class SSO2 bearing and Noctua’s trusted premium quality make it an elite choice for the highest demands.
- Ultra low noise fan, 140x140x25 mm, 12V, 3-pin Molex, 800/650 RPM, max. 11.9 dB(A), >150,000 h MTTF
- Award-winning 140x25mm A-series fan with Flow Acceleration Channels and Advanced Acoustic Optimisation frame for superior quiet cooling performance
- Square frame design is ideal for water cooling radiators (AIO or DIY), PC cases and other chassis (intake & exhaust), cabinet ventilation, etc.
- 3-pin ULN version with 800rpm (650rpm with supplied Ultra-Low-Noise Adaptor) for serious silent enthusiasts who demand the utmost quietness of operation
- Includes anti-vibration mounts, fan screws, Low-Noise Adaptor, extension cable and 3:4-pin adaptor for powering the fan directly from the power supply
| FAN Specification | |
| Size | 140x140x25 mm |
| Mounting hole spacing | 124,5x124,5 mm |
| Connector & pin-configuration | 3-pin |
| Cable length | 20cm + 30cm NA-EC1 extension cable |
| Bearing | SSO2 |
| Blade geometry | A-Series with Flow Acceleration Channels |
| Frame technology | AAO (Advanced Acoustic Optimisation) |
| Rotational speed (+/- 10%) | 800 RPM |
| Rotational speed with L.N.A. (+/- 10%) | 650 RPM |
| Airflow | 79,8 m³/h |
| Airflow with L.N.A. | 66,4 m³/h |
| Acoustical noise | 11,9 dB(A) |
| Acoustical noise with L.N.A. | 9.1 dB(A) |
| Static pressure | 0,69 mm H2O |
| Static pressure with L.N.A. | 0,42 mm H2O |
| Max. input power | 0,36 W |
| Max. input current | 0,03 A |
| Operating voltage | 12 V |
| MTTF | > 150.000 h |
| Scope of delivery |
|
| Warranty | 6 years |
