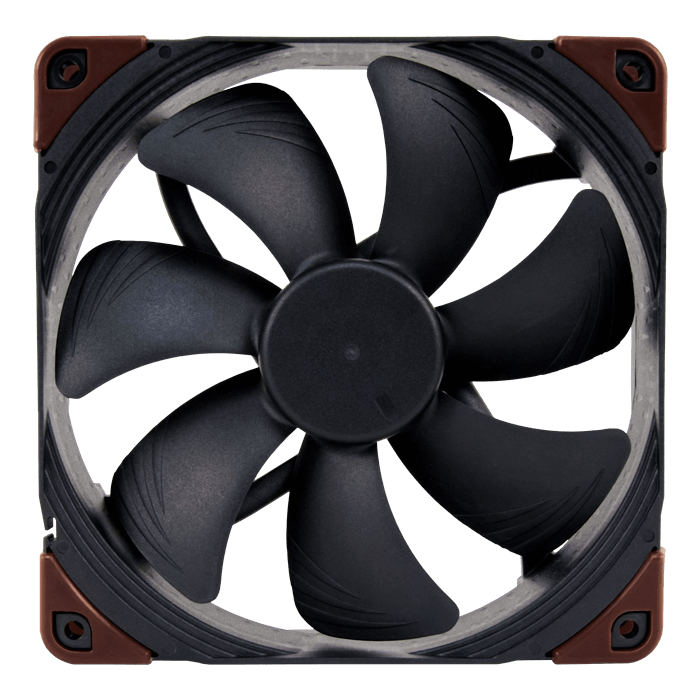

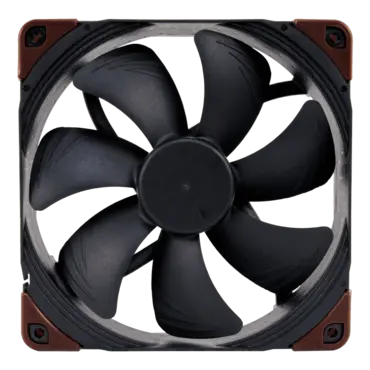

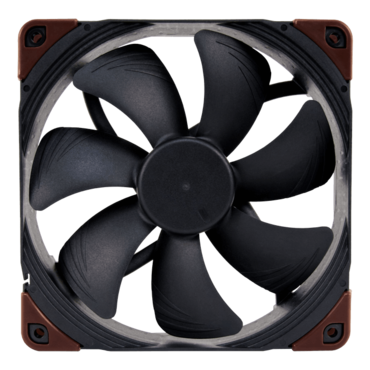

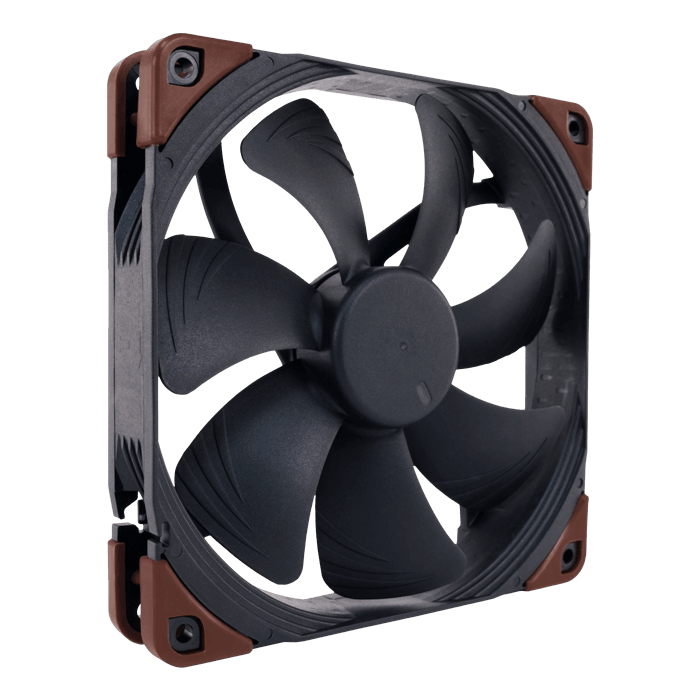

Conceived for industrial heavy duty applications that require enhanced cooling performance and advanced ingress protection, the NF-A14 industrialPPC (Protected Performance Cooling) is a ruggedised high-speed version of the award-winning retail model. Thanks to the outstanding aerodynamic efficiency of the NF-A14 design and the use of a novel three-phase motor, the industrialPPC version provides superior airflow and pressure capacity while keeping noise levels and power consumption moderate as against comparable high-speed fans. While its fibre-glass reinforced polyamide construction and certified water and dust protection make the NF-A14 industrialPPC suitable for operation in challenging environments, the renowned SSO2 bearing technology guarantees an MTTF of over 150.000hrs. Topped off with Noctua’s trusted reliability and 6 years manufacturer’s warranty, the NF-A14 industrialPPC is an ideal choice for highly demanding applications that require superior flow rates and ultimate dependability.
- Heavy duty cooling fan, 140x140x25 mm, 12V, 3-pin Molex, max. 2000 RPM, max. 31.5 dB(A), >150,000 h MTTF
- Award-winning 140x25mm A-series fan with Flow Acceleration Channels and Advanced Acoustic Optimisation frame for superior cooling efficiency
- 12V 2000rpm model (31.5dB) with 3-pin connector
- High-speed industrialPPC version for industrial heavy-duty applications that require extreme cooling performance and advanced ingress protection
- Ruggedised fibre-glass reinforced polyamide construction and IP52 certified water and dust protection
FAN Specification | |
Size | 140x140x25 mm |
Mounting hole spacing | 124,5x124,5 mm |
Connector & pin-configuration | 3-pin |
Cable length | 40cm |
Bearing | SSO2 |
Blade geometry | A-Series with Flow Acceleration Channels |
Frame technology | AAO |
Material | Fibre-glass reinforced polyamide |
Ingress protection | IP52 |
Motor type | Three-phase |
Rotational speed (+/- 10%) | 2000 RPM <divAirflow 182,5 m³/h |
Acoustical noise | 31,5 dB(A) |
Static pressure | 4,18 mm H2O |
Max. input power | 2,16 W |
Max. input current | 0,18 A |
Operating voltage | 12 V |
MTTF | > 150.000 h |

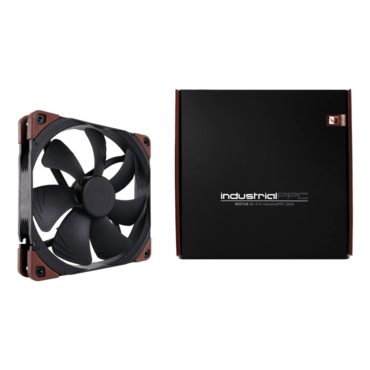

Scope of delivery |
|
Warranty | 6 years |
