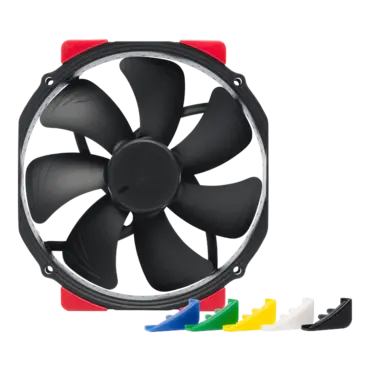

Having received more than 100 awards and recommendations from international hardware websites and magazines, the NF-A15 is one of Noctua’s most renowned and popular 140mm fans. Its 150mm wide round framewith 120mm standard mounting holes (105mm hole spacing) makes it ideal for use on CPU coolers such as the popular NH-D15, NH-D15S or NH-U14S. The chromax.black.swap edition combines the NF-A15’s signature quiet cooling performance with an attractive all-black design and a bundle of swappable red, white, blue, green, yellow and black anti-vibration pads that allow the colour-customisation of the fan to match individual build colour schemes. For further customisation, a wide range of accessories such as coloured cables and anti-vibration mounts are available separately. Topped off with Noctua’s trusted premium grade SSO2 bearing and more than 150,000 hours MTTF, the NF-A15 HS-PWM chromax.black.swap is the perfect choice for all users who value individual, focused build aesthetics just as much as class-leading quality and performance.
- Premium quiet fan, 140x150x25 mm, 12V, 4-pin PWM, max. 1500 RPM, max. 24.6 dB(A), >150,000 h MTTF
- Award-winning NF-A15 design has received more than 100 recommendations from international hardware websites and magazines
- 150mm wide round frame with 120mm standard mounting holes (105mm hole spacing): ideal for use on CPU coolers such as the popular NH-D15, NH-D15S or NH-U14S
- 4-pin PWM version for automatic speed control via 4-pin PWM fan headers, 1500rpm maximum speed
- chromax.black.swap edition with attractive all-black design and swappable red, black, white, blue, yellow and green anti-vibration pads for colour-customising
FAN Specification | |
Size | 140x150x25 mm |
Mounting hole spacing | 105x105 mm |
Connector & pin-configuration | 4-pin PWM |
Cable length | 1cm + 30cm NA-EC1 extension cable |
Bearing | SSO2 |
Blade geometry | A-Series with Flow Acceleration Channels |
Frame technology | AAO (Advanced Acoustic Optimisation) |
Rotational speed (+/- 10%) | 1500 RPM |
Min. rotational speed (PWM, +/-20%) | 300 RPM |
Airflow | 140,2 m³/h |
Acoustical noise | 24,6 dB(A) |
Static pressure | 2,08 mm H2O |
Max. input power | 1,56 W |
Max. input current | 0,13 A |
Operating voltage | 12 V |
MTTF | > 150.000 h |
Scope of delivery |
|
Warranty | 6 years |
