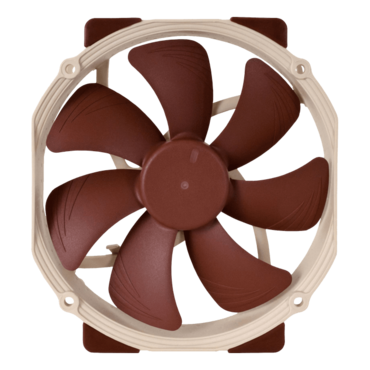

NF-A15 PWM 140mm, 1200 RPM, 67.9 CFM, 19.2 dBA, Cooling Fan
- SKU: 9511484
- Manufacturer: NOCTUA
- MPN: NF-A15 PWM
- Availability: TEMPORARILY OUT OF STOCK
The NF-A15 is a premium quality quiet 140mm fan with a round frame that complies with Noctua’s AAO (Advanced Acoustic Optimisation) standard. The NF-A15’s frame features 120mm mounting holes (105mm spacing) and has been enlarged to 150mm width in order to provide superior performance on today’s high-end CPU coolers. Featuring sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A15 further improves the renowned quiet cooling performance of the award-winning NF-P14. Noctua’s custom designed PWM IC for fully automatic speed control and reference class SSO2 bearings guarantee superb running smoothness and excellent long-term stability. Topped off with modular cabling, a Low-Noise Adaptor and 6 years manufacturer’s warranty, the NF-A15 is a premium choice for the highest demands.
| FAN Specification | |
| Size | 140x150x25 mm |
| Mounting hole spacing | 105x105 mm |
| Connector & pin-configuration | 4-pin PWM |
| Cable length | 20cm + 30cm NA-EC1 extension cable |
| Bearing | SSO2 |
| Blade geometry | A-Series with Flow Acceleration Channels |
| Frame technology | AAO (Advanced Acoustic Optimisation) |
| Rotational speed (+/- 10%) | 1200 RPM |
| Rotational speed with L.N.A. (+/- 10%) | 900 RPM |
| Min. rotational speed (PWM, +/-20%) | 300 RPM |
| Airflow | 115,5 m³/h |
| Airflow with L.N.A. | 88,7 m³/h |
| Acoustical noise | 19,2 dB(A) |
| Static pressure | 1,51 mm H2O |
| Static pressure with L.N.A. | 0,89 mm H2O |
| Max. input power | 0,96 W |
| Max. input current | 0,08 A |
| Operating voltage | 12 V |
| MTTF | > 150.000 h |
| Scope of delivery |
|
| Warranty | 6 years |
